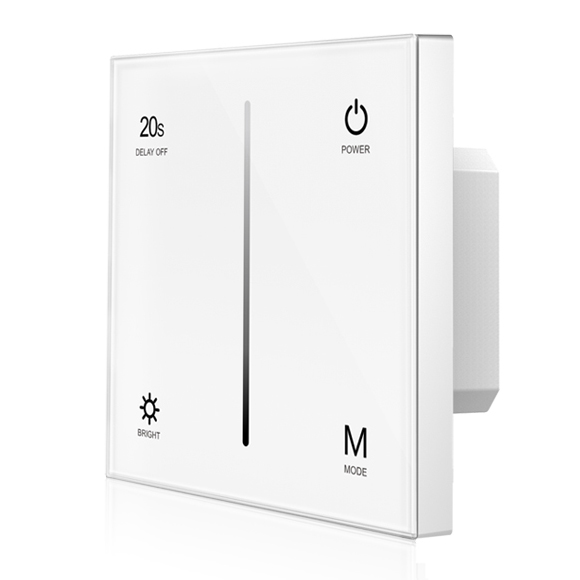

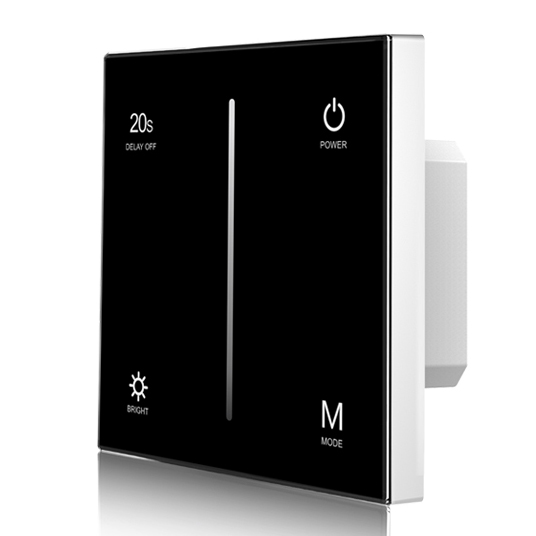

1 Zone Touch panel 0/1-10V Dimmer T18 For led strip light amazon

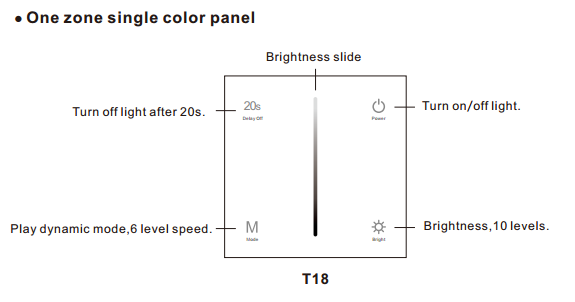

0-10V dimmer T18 / T18-1 is a full touch LED controller which outputs one or four channel 0-10V signal, offers both switch on/off and dimming functions. Adopting high strength ultra sensitive touch glass panel, fast and accurate brightness adjustment with unique design touch slide. 0.1% to 100% smooth dimming range without any flickering can be very comfortable for human eyes. Back lighting function enables the touch panel to be found even in the dark. The touch dimmer is powered by AC input and can be compatible with existing standard size 86*86mm wall boxes.
Touch panel 0-10V dimmer, output 1 or 4 channel 0-10V signal.

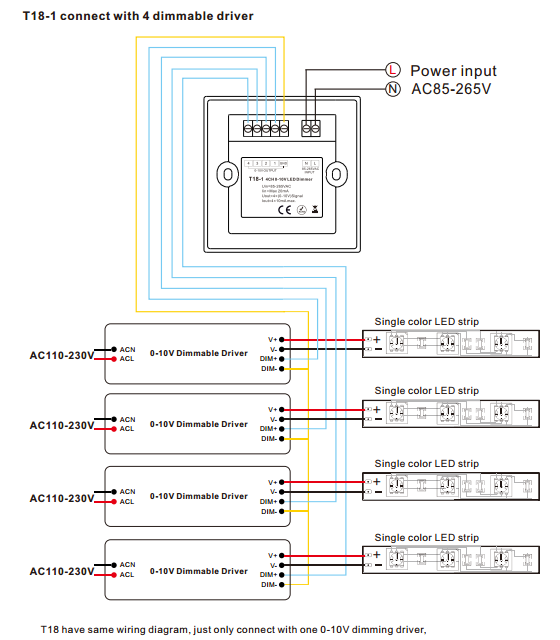

Output connect with 0/1-10V dimmable driver.
High sensitive & high stable glass touch panel, fast & precise control.
Reliable and stable switch and dimming control without flickering.
256 levels brightness adjustment.
Match with a variety of single color RF remote optional.
Adopt 2.4GHz wireless technology, remote distance up to 30m.
Touch keys with chord tones and LED indicator
Standards and Certifications
