Special Price: $3.99

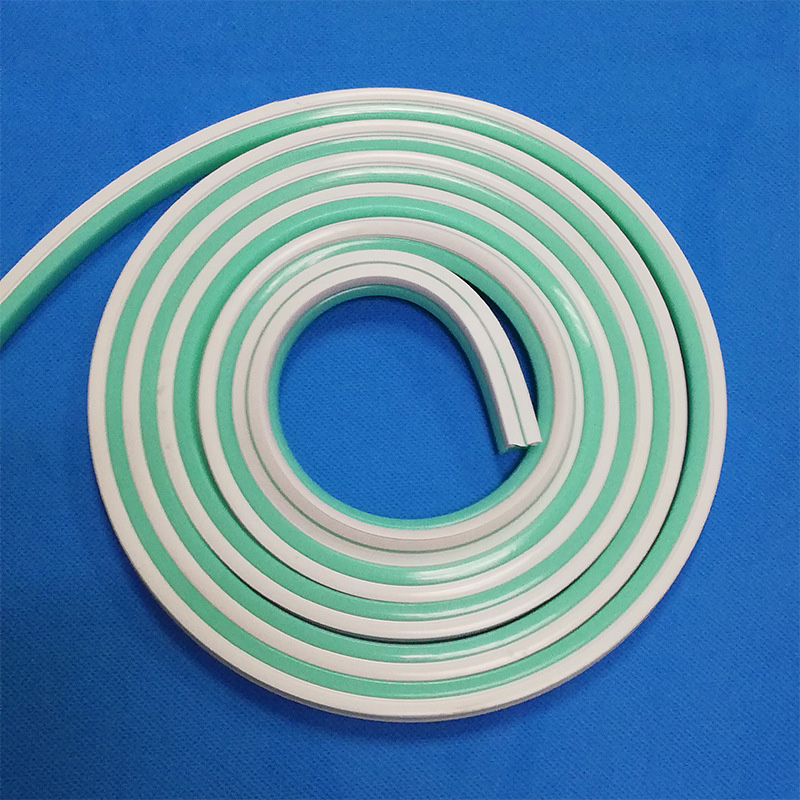

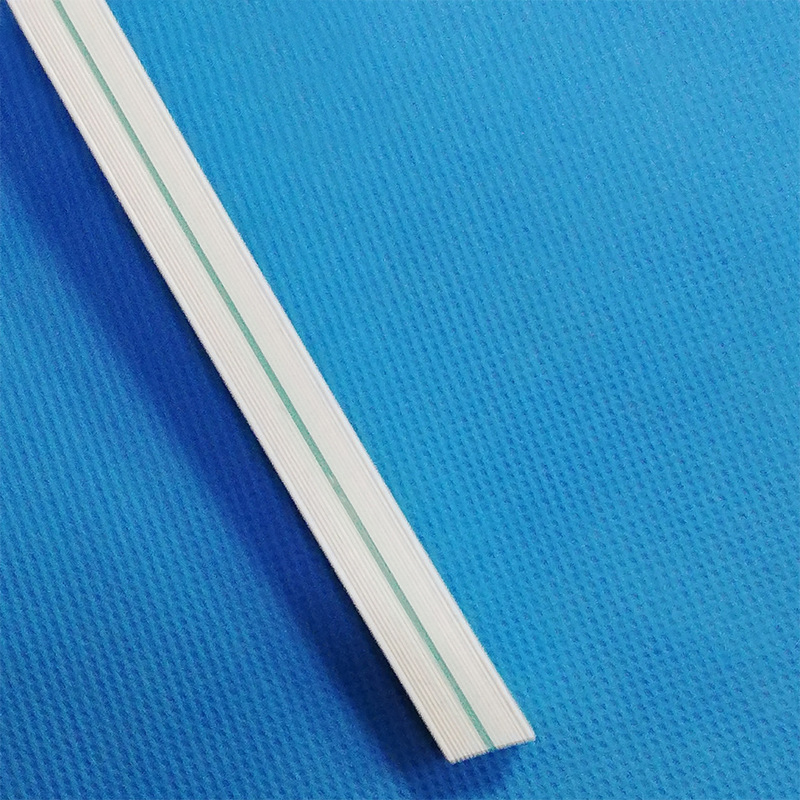

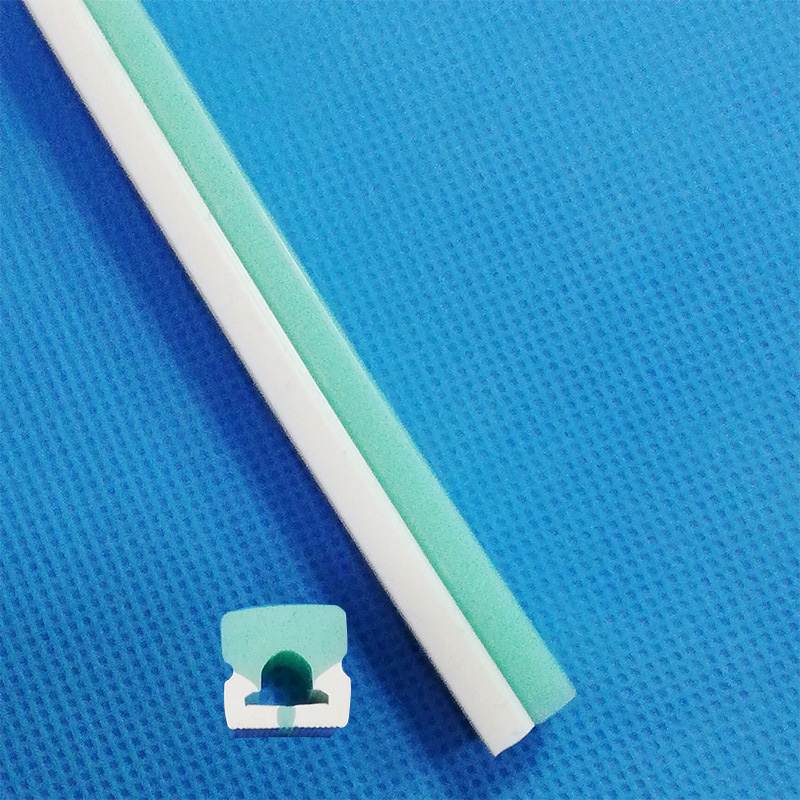

Ice blue neon light diffuser for 6mm or 5mm wide led strip lighting, the product structure is mainly divided into milky white shading surface and ice blue diffusion surface, the light refracted from the led light source through the conduction of silicone diffusion to produce the ultimate lighting effect which is more artistic and practical than traditional LED neon lights.
This silicone led light strip diffuser has large light-emitting angle, the combination of high-density LED light strips and the LED flexible silicone channel can achieve no light spot effect, is widely used in decorative lighting and sign lighting now. Made of high quality food grade silicone material, it does not change yellow or crack, waterproof grade is IP67, can be used for outdoor and indoor lighting.
Model: | FLNLT-3-T1010-L-IB |
Tube Material: | Food-grade Silicone |
Lighting Direction: | Top-emitting |

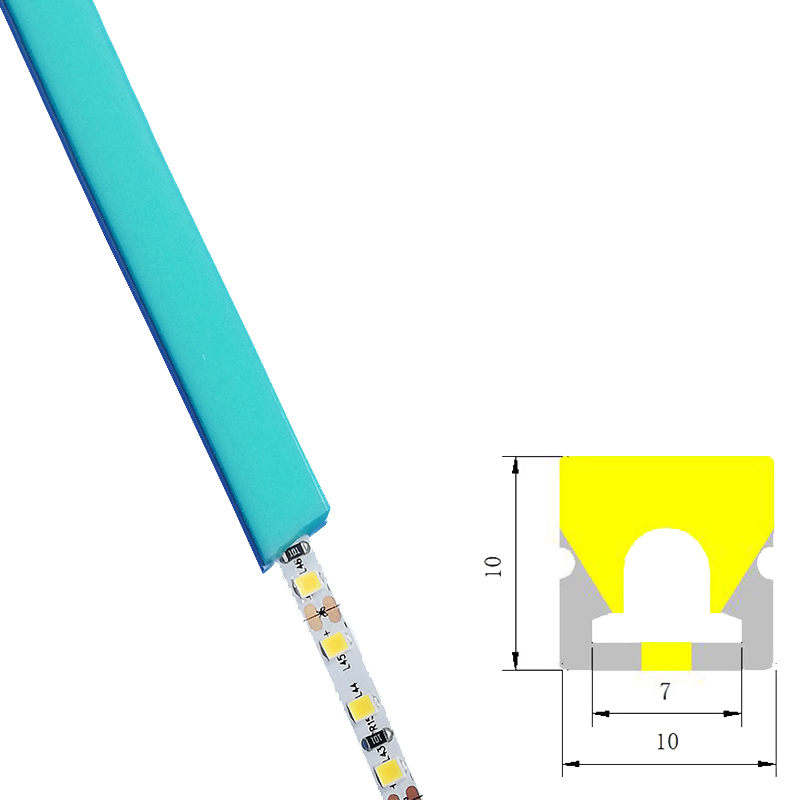

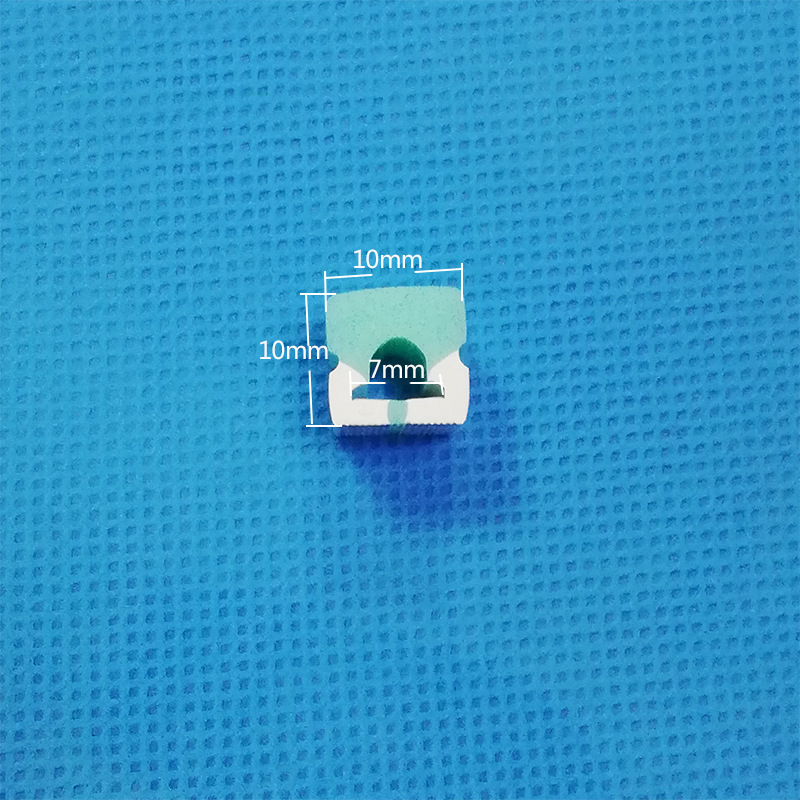

External Width: | 10mm/0.4" |
External Height: | 10mm/0.4" |
Inner Width: | 7mm/0.3" |
Max LED Strip Width: | 5mm/0.2", 6mm/0.24" |
Available LED Strip Type: | Single color led strip, COB led strip, CCT led strip, RGB led strip, RGBW led strip, RGBCCT led strip, Addressable led strip |
Length: | 1m/3.28ft, 2m/6.56ft, 5m/16.4ft |
Beam Angle: | 180° |
Accessories: | End Caps (come with), Mounting clips (Please choose in the "Kit" option) |
Waterproof Rating: | IP67 |
UV Resistant: | Yes |
Working Temperature: | -50°C to 200°C |
LED Neon Light Knowledge Source: |
Note:
The product does not include led light strips.
If you buy our LED strips at the same time, we can make LED neon lights for you for free. You only need to make a note when ordering.
If you insist on completing the production of neon lights by yourself, you can read: How To Put A Flexible LED Strip Light Into A Silicoen Tube?
We are not responsible for any damage caused by your own operation!
Flex LED Neon Tube Installation:
There are three installation methods for neon silicone tubes, one is to install with mounting clips (this link include 10 pcs, if you need extra led mounting brackets, please purchase them by yourself), easy operation. 1m silicone tube for led strip lights has two mounting clips, 2m has four, and 5m has ten.
The second is to put the flex led neon tube into the aluminum channel, this installation method is suitable for linear lighting projects.
And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
Using Application:
LED neon tube with Single color/CCT/RGB/RGBW/RGBCCT/Addressable LED strip has wide applicability. It can be applied to the following scenes.
1.Building outline lighting
2.Hotel lighting project
3.Bridge lighting project
4.Cultural tourism town lighting project
5.City park lighting project
6.Festival atmosphere decoration project
7.Airport lighting project, etc.
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
