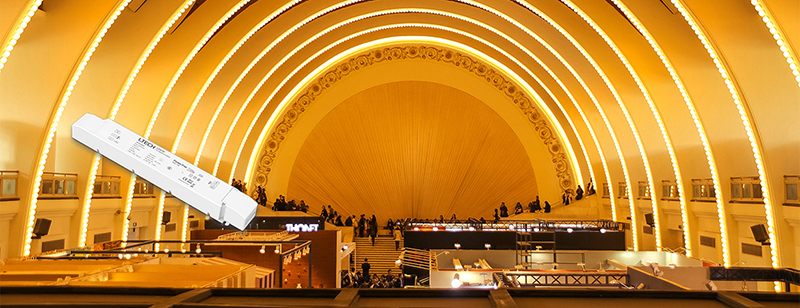

LM-75-24-G2T2 75W DC24V CV Triac DIM&CT Driver
Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.
With soft-on and fade in function, visual more comfortable.
2 independently SELV constant voltage output channels.
Constant power design, adjust brightness and color temperature synchronously.
Dimming range: 0~100%, LED start at 0.1% possible.
0-100% flicker-free, High frequency exemption level.
High Efficient driver: efficiency 88%,PF>0.98, THD<6%
Innovative thermal management technology, intelligent power life protection.
Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor).
Output Voltage: DC24V
Output voltage range: 24Vdc ± 0.5Vdc
Output Current: Max.3.125A
Output Power: Max. 75W
Output power range: 0~75W
Strobe Level: High frequency exemption level.
Dimming Range: 0~100%, dimming depth: Max. 0.1%
Overload power limitation: ≥102%
Current Accuracy: ±5%
Ripple & Noise: ≤150mV
PWM Frequency: 3600Hz
Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.
Input Voltage: 220-240Vac
Leakage Current: Max. 0.5mA
Working Temperature: ta: -20 ~ 50°C tc: 90°C
