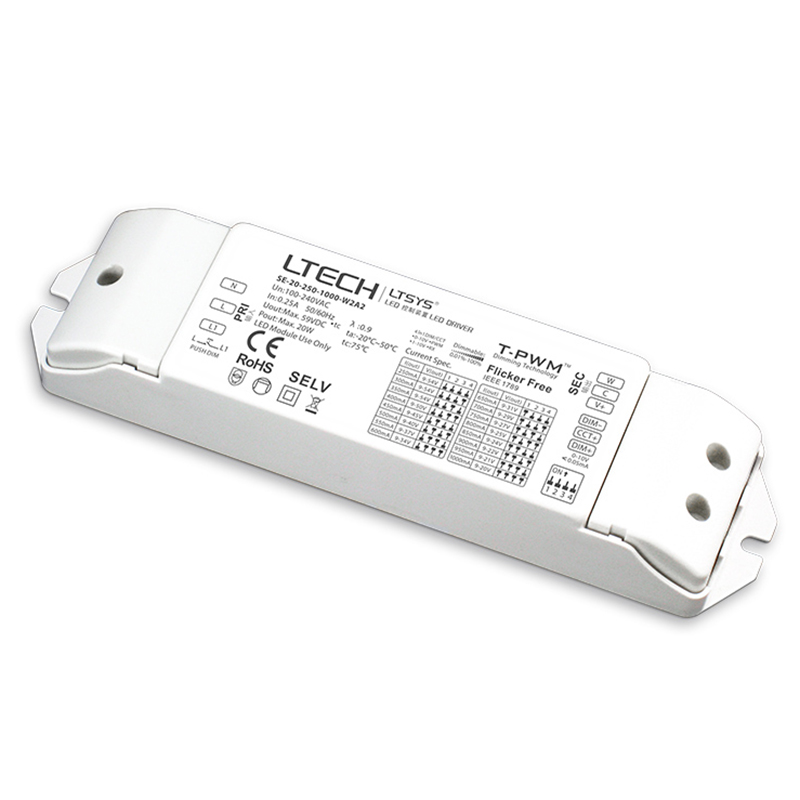

SE-20-250-1000-W2A2 20W 250-1000mA CT Driver
Dimming interface:0-10V (1-10V/10VPWM/RX), Push DIM.
T-PWM digital dimming,present a perfect visual experience.
With soft-on and fade in function, visual more comfortable.

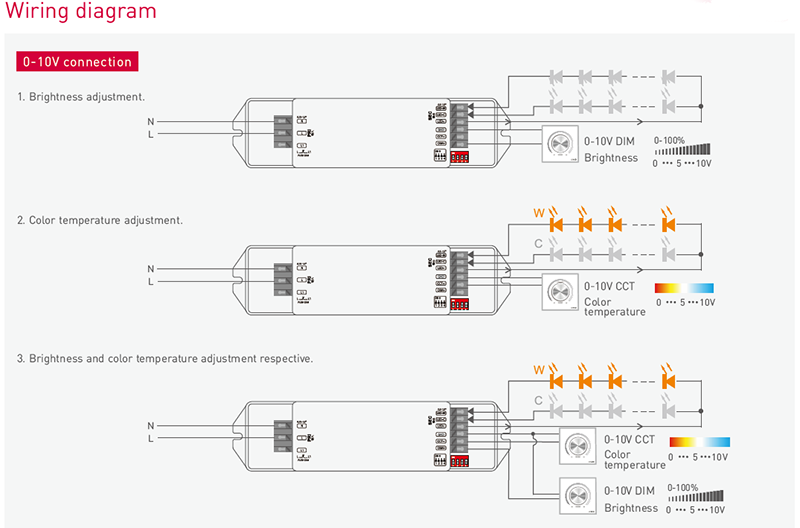

Achieve dimming or CT adjustment for 1CH O-10V or 2CH 0-10V.
Dimming range: 0~100%, LED start at 0.1% possible.
Automatic recognition of 0-10V, 1-10V input signal.
DIP switch for 16 optional currents' quick selection.
0-100% flicker-free,High frequency exemption level.
Ultra-low consumption of 0-10V ports: < 0.05mA.
In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W.
Innovative thermal management technology, intelligent power life protection.
Over temp. / Over voltage / Over load / Short circuit protection, recover automatically.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
Up to 50000-hour life time.
5 years warranty (Rubycon capacitor).

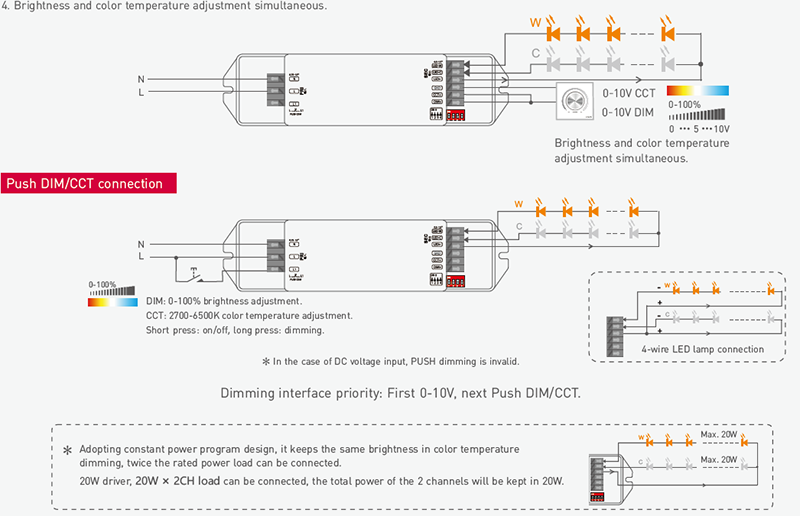

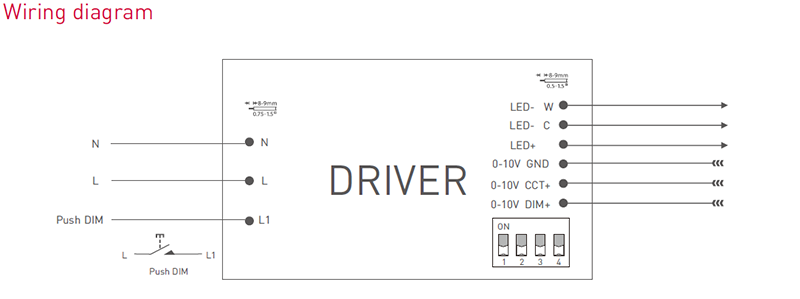

Dimming interface: 0-10V(1-10V/PWM/RX), Push DIM
Interface consumption: <0.05mA @ 0-10V
Input voltage: 100-240Vac (120-300Vdc)
Input current: 115Vac≤0.25A, 230Vac≤0.13A
Power factor: PF>0.95/115Vac , PF>0.90/230Vac, at full load
Standby power loss: <0.5W
Inrush current(typ.): Cold start 10A at 230Vac (twidth=40μs measured at 50% Ipeak)
Anti surge: L-N: 2kV
Output voltage: DC9-54V
Max output voltage: DC54V
Dimming range: 0~100%, 0.1% dimming depth.
LF current ripple(<120Hz): <1%
Current accuracy: ±5%
Ripple & Noise: ≤2V
PWM dimming frequency: ≤3600Hz
Working temperature: ta: -20 ~ 50°C tc: 75°C
Working humidity: 20 ~ 95%RH, non-condensing
Storage temp., humidity: -40 ~ 80°C, 10~95%RH
Temp. coefficient: ±0.03%/°C(0-50°C)
