Product Information

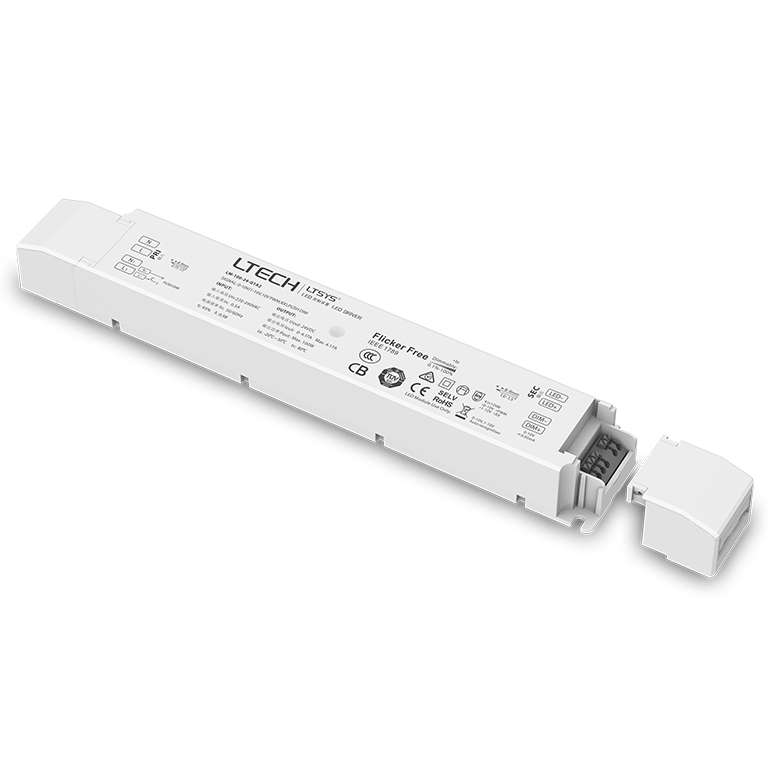

The LTECH LM-100-24-G1A2 is an intelligent 100W 24V constant voltage LED driver engineered for 200-240Vac mains power systems across Europe, the UK, and Australia. Designed with a versatile 5-in-1 control front-end, it accepts active 0-10V, 1-10V, 10V PWM, and adjustable resistance (RX) inputs, as well as line-voltage AC Push DIM switches. With an integrated single-chip microcomputer (SCM), this unit delivers smooth 0-100% digital dimming down to 0.1% minimum depth with a PWM frequency up to 3600Hz, meeting IEEE 1789 flicker exemption standards. Rated at a maximum continuous output of 4.17A, the LM-100-24-G1A2 achieves up to 93% conversion efficiency and maintains a power factor exceeding 0.98 at full load. Whether serving as a precision led light driver replacement for commercial architectural coves or powering residential single color LED strip lights, this unit provides robust self-recovering protection inside a compact 293×43×30 mm insulated housing.

Key Performance Features
5-in-1 Control Interface
Automatically recognizes 0-10V, 1-10V, 10V PWM, and resistor signals alongside standard AC Push DIM inputs.
Deep 0.1% Dimming
Delivers smooth 0-100% dimming with stable starting down to 0.1% without step jumps or pop-on.
IEEE 1789 Flicker-Free
Operates at up to 3600Hz PWM frequency, fully meeting the high-frequency exemption assessment level.
93% Electrical Efficiency
Converts 200-240Vac input into 24Vdc output with minimal thermal dissipation and a power factor over 0.98.
Integrated SCM Architecture
Includes a built-in microcomputer supporting factory-customizable dimming curves and soft-start ramp times.
Quadruple Auto Protection
Safeguards fixtures with automatic recovery against short circuit, overload (≥102%), over-voltage, and over-temperature (≥110°C).
Technical Highlights
- Delivers 100W continuous DC output at a regulated 24Vdc (±0.5Vdc) with maximum 4.17A capacity.
- Engineered for 220V±20% nominal grid voltages (200-240Vac at 50/60Hz) with total harmonic distortion (THD) ≤12% at full load.
- Push DIM terminal incorporates intelligent memory, recalling the last adjusted brightness level upon power cycling.
- Removable screw-free protective side covers feature integrated wire-clamping boards for strain-relieved field terminations.
- Complies with Safety Extra Low Voltage (SELV) standards with 3750Vac isolation between input and output stages.

Comprehensive Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | LM-100-24-G1A2 |
| Output Voltage | 24Vdc ±0.5Vdc |
| Output Current | Max. 4.17A |
| Output Power | Max. 100W (Range: 0~100W) |
| Input Voltage Range | 200-240Vac (220V±20%) |
| Mains Frequency | 50/60Hz |
| Input Current | Max. 0.5A at 230Vac |
| Power Factor (PF) | PF > 0.98 at 230Vac (full load) |
| Total Harmonic Distortion (THD) | ≤12% at 230Vac (full load) |
| Efficiency (Typical) | 93% at 230Vac |
| Inrush Current | Cold start 45A at 230Vac |
| Ripple & Noise | ≤300mV |
| Dimming Interface | 0-10V, 1-10V, 10V PWM, RX, Push DIM |
| Dimming Range & Depth | 0~100%, minimum 0.1% |
| PWM Dimming Frequency | ≤3600Hz |
| Surge Immunity | Line to Neutral: 2KV |
| Working Temperature (ta / tc) | ta: -20°C ~ 50°C; tc: 80°C |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, SELV |
| EMC Standards | EN55015, EN61000-3-2 Class C, IEC61000-3-3 |
| Strobe Benchmark | IEEE 1789 Exemption Level |
| Physical Dimensions | 293 × 43 × 30 mm (L × W × H) |
| Gross Weight | 300g ± 10g |

Application Scenarios
How to Wire & Install This Power Supply
- Verify your incoming mains power measures within the 200-240Vac range and that the connected LED fixture requires a 24Vdc constant voltage supply rated at 100W (4.17A) or less.
- Remove the terminal protective covers on both ends by gently unclamping the bottom clips and lifting the protective wire plates outward.
- For 0-10V control: Connect the AC mains Live (L) and Neutral (N) lines to the primary input terminals. Connect the 0-10V control polarity (+ and -) from your 0/1-10V panel dimmer to the signal terminals. Connect the 24V LED strip positive (+) and negative (-) leads to the DC output terminals.
- For Push DIM control: Connect AC Neutral (N) directly to the N terminal. Run AC Live (L) to the L terminal, and run a switched Live lead through your momentary push button to the Push DIM terminal. Connect the DC LED load to the output terminals.
- Depress the built-in wire pressing boards firmly over the cable jackets to secure mechanical strain relief, then snap the protective terminal end-caps back into position.
- Energize the circuit. In 0-10V mode, verify 0-100% dimming response from the analog console. In Push DIM mode, short press (<0.5s) to turn on/off and long press (>0.5s) to cycle brightness up and down.
- This driver requires a 200-240Vac (50/60Hz) supply. Do not connect to 110-120V mains systems commonly used in North America.
- Designed exclusively for resistor-limited constant voltage 24V fixtures. Do not connect constant current IC-driven fixtures directly without custom factory programming to prevent overload tripping.
- Signal priority is hardwired: if both a 0-10V signal and a Push DIM switch are wired simultaneously, the 0-10V analog input takes operational precedence.
- Maintain a minimum 20% power headroom (maximum 80W continuous operational load) to prolong electronic component life and prevent thermal derating.
- Rated IP20 for indoor dry locations only. Mount in well-ventilated areas where ambient temperatures remain between -20°C and 50°C, keeping the case temperature below 80°C.
What's in the Box
- ✓1 × LTECH LM-100-24-G1A2 100W 24V Constant Voltage 0-10V LED Driver
- ✓1 × Technical Installation Manual and Wiring Diagram Sheet
⇩ Downloads & Documents
Frequently Asked Questions
Q: Can I use the LM-100-24-G1A2 as an led driver replacement on a 120V circuit?
A:No. The LM-100-24-G1A2 operates strictly on 200-240Vac (220V±20%) mains systems. For 110-120V regions such as the United States or Canada, a universal-input or 120V-specific LED driver model must be selected.
Q: How does the Push DIM function operate?
A:Push DIM uses a standard normally-open momentary switch connected to AC mains. A short press turns the lights on or off, a long press ramps brightness up or down, and the built-in memory restores the last brightness level when toggled on.
Q: Can this driver run constant current LED downlights directly?
A:This model outputs a fixed 24V constant voltage intended for resistor-limited LED strip lights. Connecting series-wired constant current LEDs directly will trigger the built-in overload protection.
Q: What is the difference between LM-100-24-G1A2 and LM-100-24-G2A2?
A:The LM-100-24-G1A2 is a single-channel 24V driver for standard dimming, whereas the G2A2 model features dual-channel outputs engineered for tunable white (DIM & CT) color temperature adjustment.
