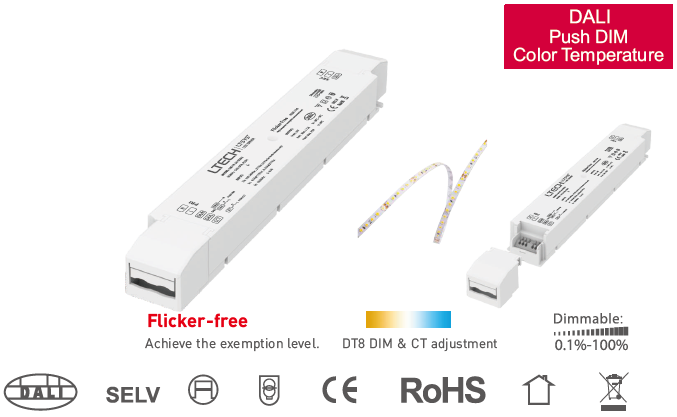

LED Intelligent Driver, 75W 24VDC CV DALI DT8 CT Driver LM-75-24-U2D2
LED Intelligent Driver
Dimming interface: DALI DT8, Push DIM/CCT
2 independently SELV constant voltage output channels
DALI DT8, DIM and color temperature adjusting driver.
Dimming range from 0-100%, LED start at 0.1% possible.
Color temperature adjusting range: 2700-6500K
0~100% flicker-free, achieve the level of exemption assessment.
Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
Standby Power Loss < 0.5W
Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.
