Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting

Model: FSLSR-IP20-3528X480W3.5
Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting
  • Single Row Series DC12V 3528SMD 3.5mm Super Narrow 16.4Ft 480LEDs High CRI Flexible LED Strip Lights For Home Lighting

Select Specifications:

Select PCB Color :

Starting at: $18.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$18.99
10-19
$18.61
20-49
$18.04
50+
$17.28
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    1. DC12V single color ultra narrow LED strip adopts high-brightness SMD3528 LEDs, single LED width is ultra-narrow 3.5mm/0.14in, 96 LEDs per meter are evenly arranged on the PCB, 5m/16.4Ft a whole roll by sales.

    2. This ultra slim led light supports multi LED light colors, 3000K sofe white, 4000K natural white, 6000K daylight white, 7000K cool white, red, green, yellow, blue, and pink, meeting your different lighting requirements. 3000K warm white vs 4000K natural white vs 6000K pure white vs 7000K cool white, what is the difference

    3. The super thin LED strip supports DC12V low voltage input, 3LEDs cuttable, the length of the single color narrow LED strip can be customized, suitable for home lighting.

    4. LED light strip externally wrapped transparent heat-shrinkable tube, IP67 waterproof ultra narrow led light strip available, suitable for indoor & outdoor lighting environments, with high-quality 3M tape on the back, which has good adhesion and is easy to install.

    5. 90+CRI ultra thin LED strip which has good color rendering, highly restores the original appearance of the real environment, works with single color LED controller, can achieve 0-100% dimmable.




    Product Feature

    • 0-100% dimmable

    • 3.5mm/0.14in super narrow

    • DC12V input voltage

    • 3 LEDs cuttable

    • 90+ CRI

    • 3528 High brightness LED

    • 16.4Ft 480LEDs high density

    • IP67 waterproof available

    • 3M tape, easy to install

    • Customize length

    • Multiple single color optional



    Standards and Certifications



    Product Specification

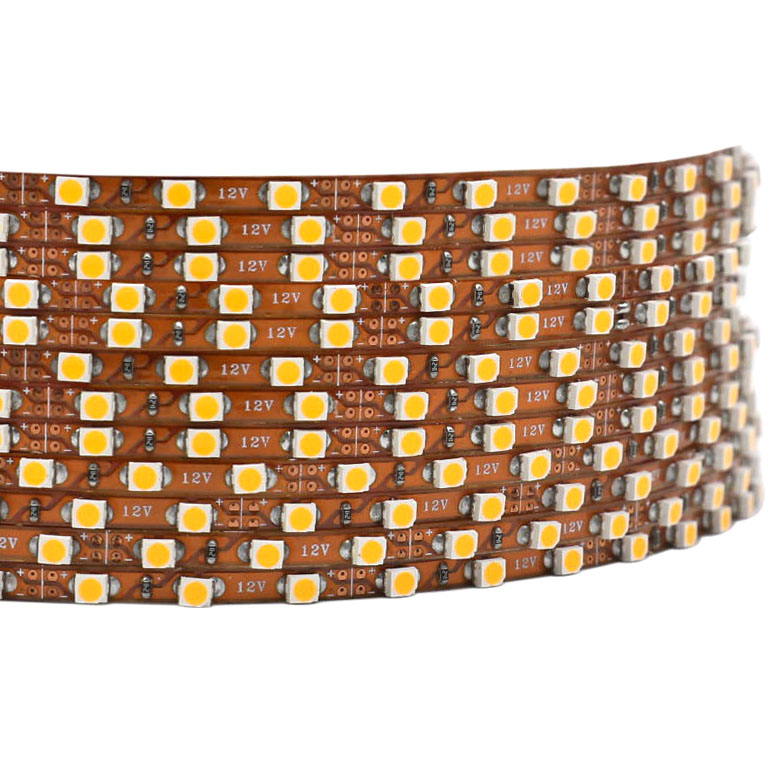

    LED Strip Type:   SMD 3528  480PCS/16.4ft

    Light Color:    R/G/B/WW/NW/DW/Y/P optional

    LED Chip:   Epistar Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

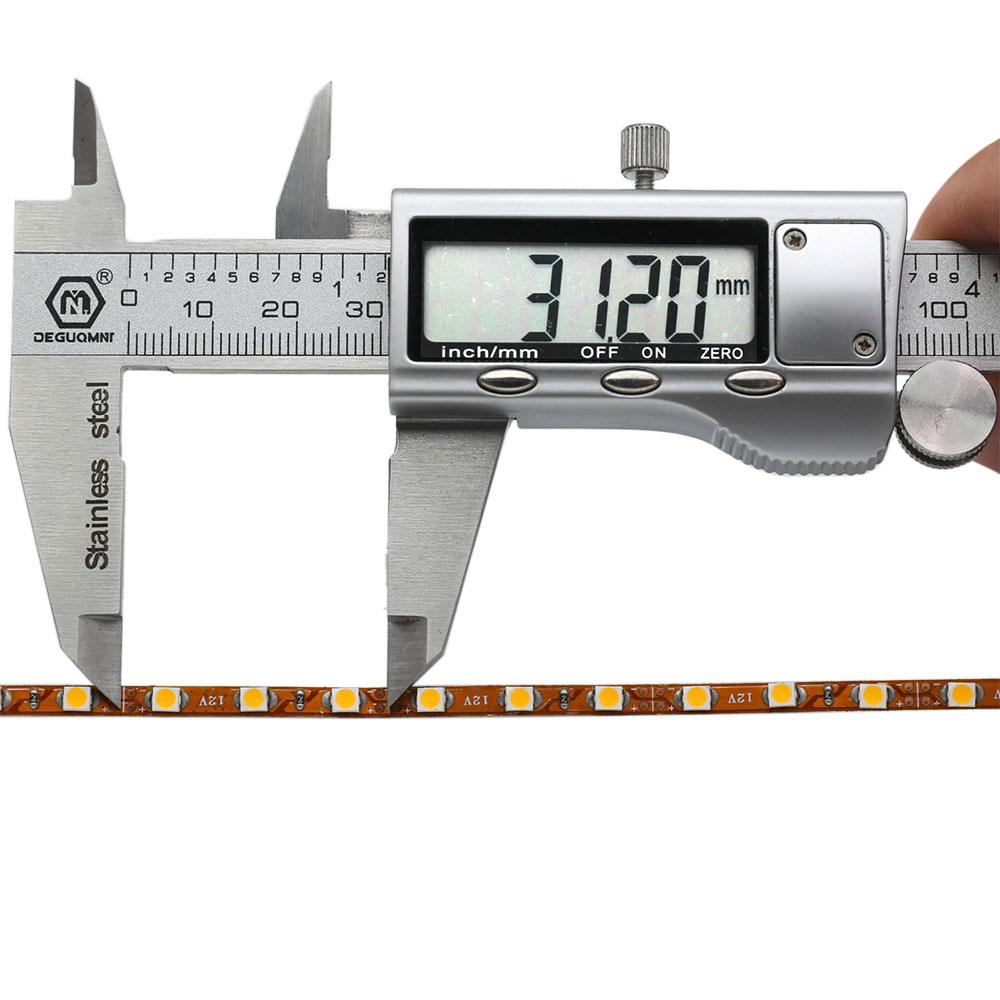

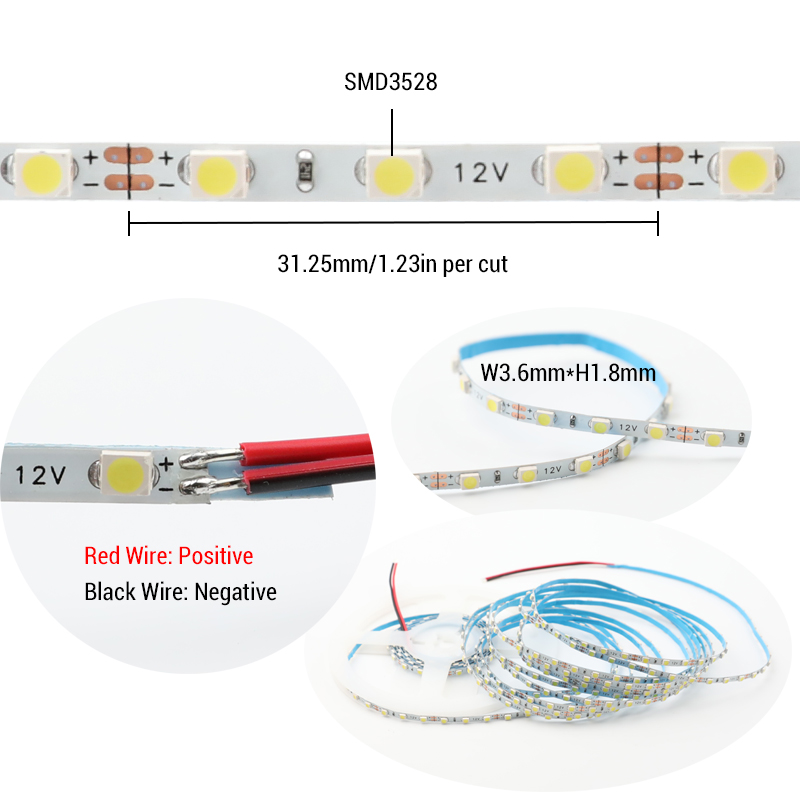

    Dimension:   16.4ft/roll, every 3 PCS LED can be cut ( cut length: 31mm )

    LED Quantity:   96 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L500cm(196.8 in ) x W0.35cm(0.14 in ) x H0.20cm(0.08 in )

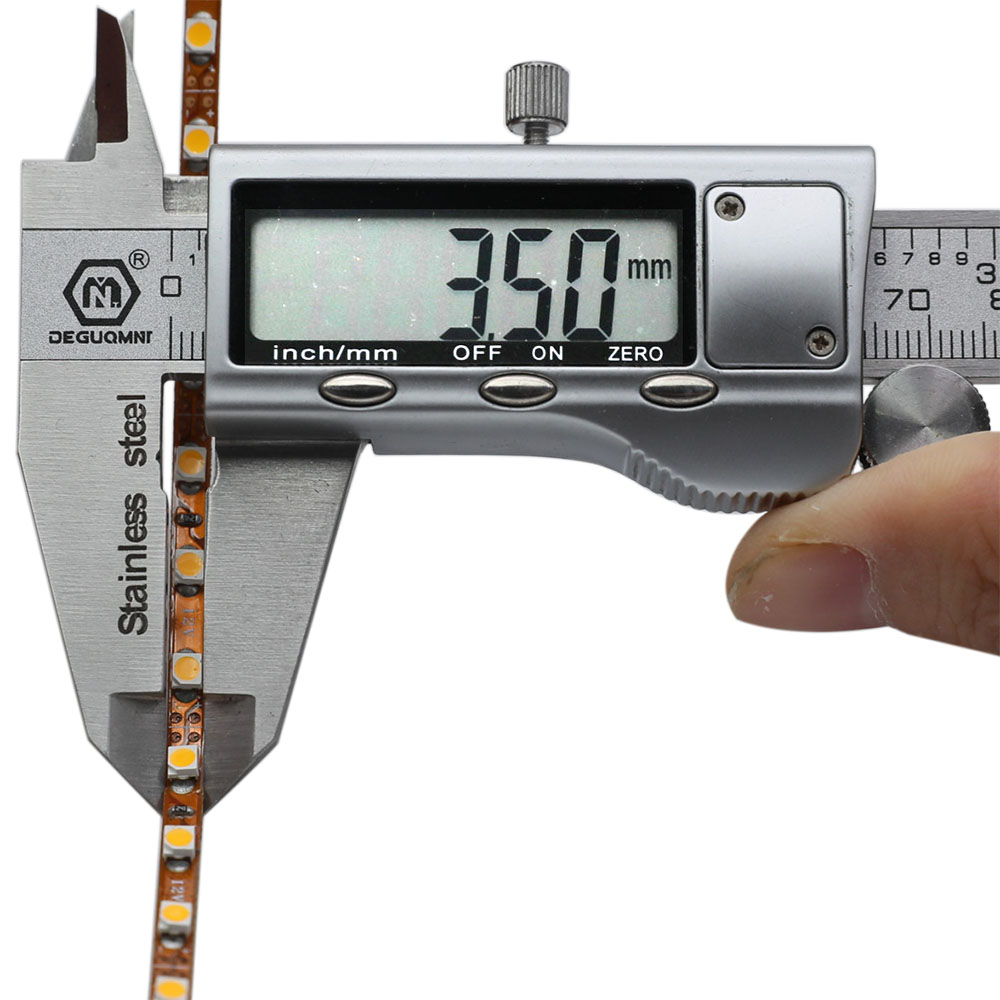

    PCB Wide:    3.5mm/0.14in

    Input Voltage(V):   12VDC

    Working Power:   8W/m, 40W/Roll

    Lamp Luminous Flux(lm):   7~8lm/LEDs   3840lm/16.4ft

    Color Temperature CCT(White):  Warm White(2700-3200k), Natural White(4000-4500K); Daylight White(6000-6500k), Cool White(7500-8500k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm); Pink

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof IP20/ Waterproof IP67

    CRI (Ra>):  90




    Product List

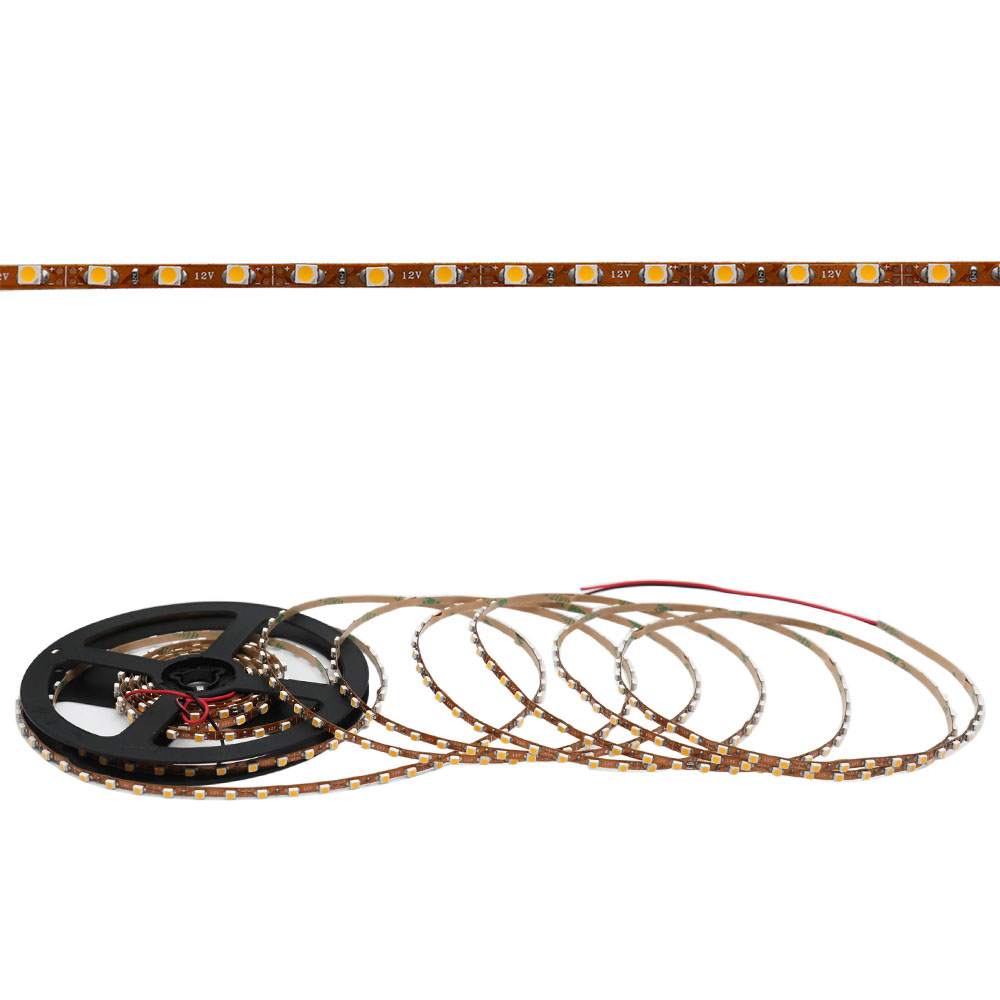

    1* 5m/16.4Ft 480LEDs LED strip light

    If you choose the controller in the kit, we will send you  V1 + RT1

    If you choose the LED power supply in the kit, we will send you  PSPS-12V-48W

    If you want to use the LED strip light in the outdoor environment, you can choose PSWP-12V-50W waterproof LED power supply.

    If you have some requirements for other LED controller, you can visit our Single Color Dimmer Series

    ►Detail knowledge about choosing a suitable LED strip light power supply:

    How to calculate power for led strip lights?

    How to choose led strip light power supply?




    Color Temperature And CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.




    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with heat shrink tube, with a plastic fastener, better waterproof, For Outdoor);

    IP67 waterproof narrow led strip will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order




    How to Install single color LED Light Strip?


    create_a_Large_flexible_led_strip_light_Installation.jpg create_a_Large_flexible_led_strip_light_Installation.jpg

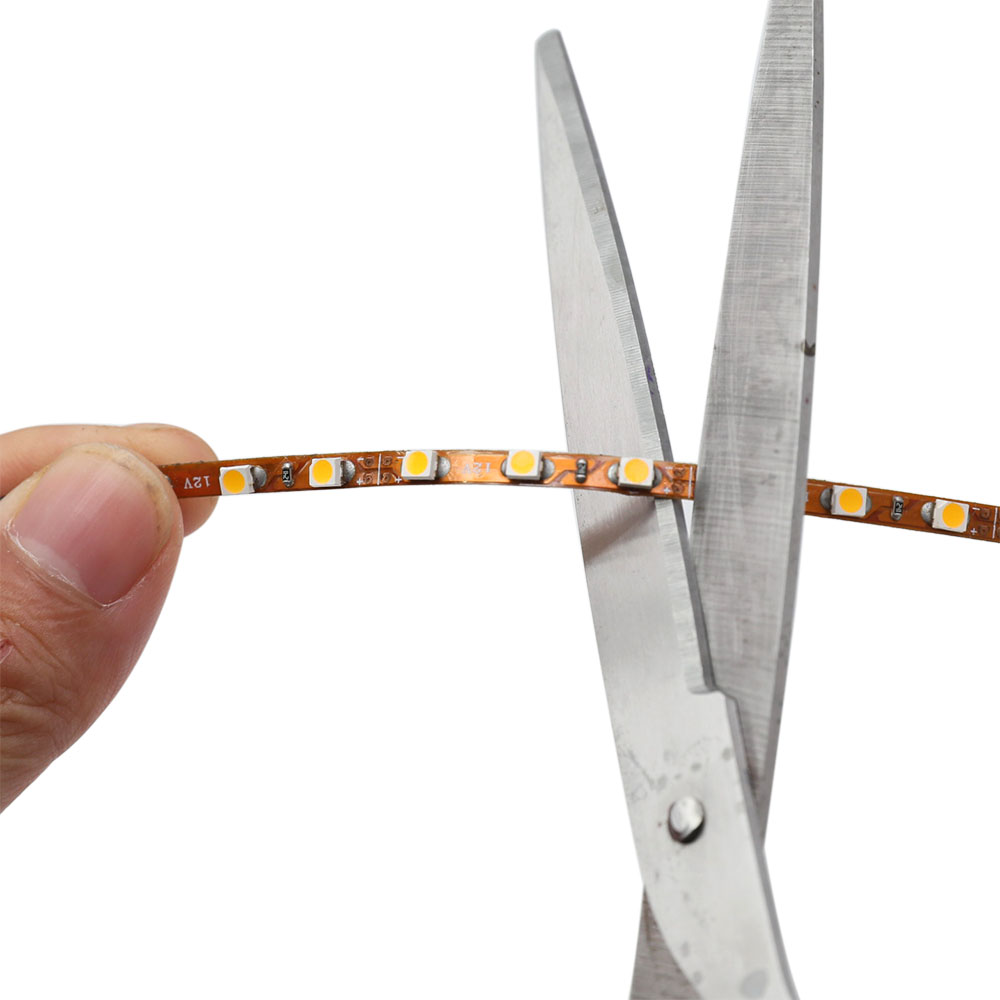

     You can cut the single color LED lights every few inches(6 LEDs), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

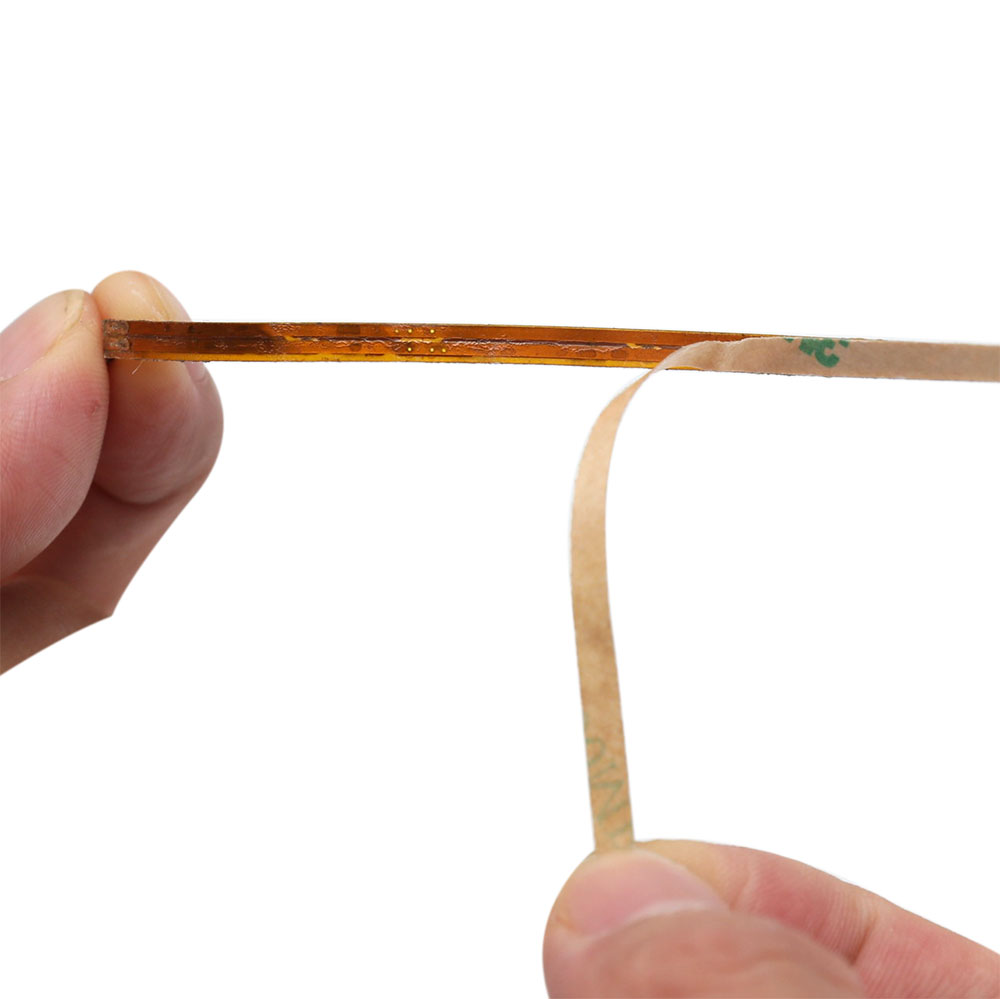

     The back of the single color LED strip is fitted with a strong 3M tape, allowing you to peel and stick the LED lights to anywhere.

     IP67 waterproof LED type which will come with mounting brackets. And all the LED strip lights can be installed with LED aluminum channel to get an uniform, soft, and no light spot LED lighting effect.

    ►Single color led strip lights wiring diagram:

    *Click the wiring diagram picture to know more detail.

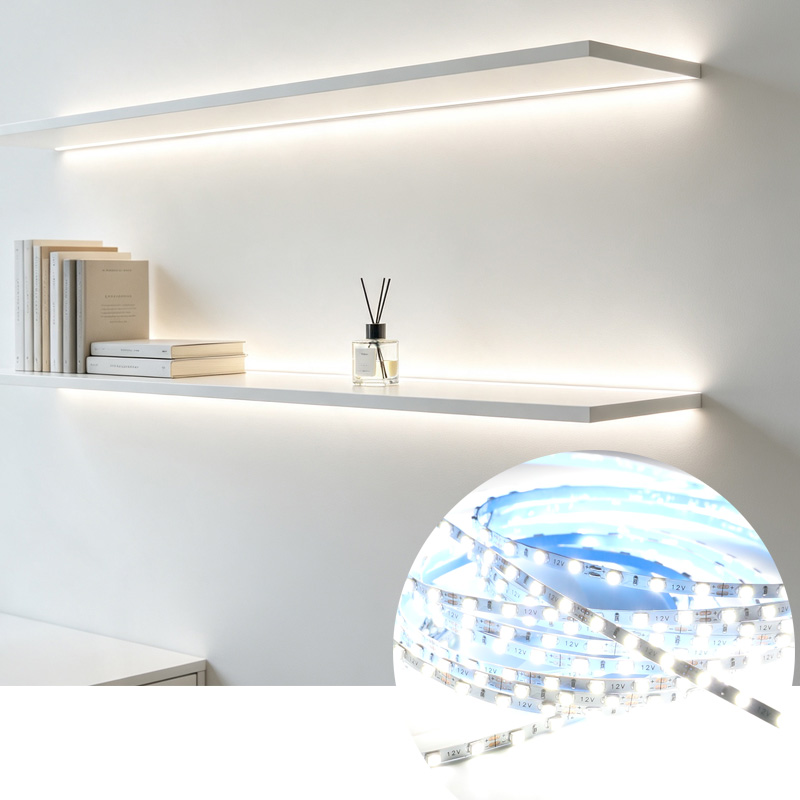

    Application

     Trademark lighting                              Logo lighting

     Channel letters lighting                       Lightboxes lighting

     Landscape layout lighting                    Stage decoration lighting

     Sign cabinets                                       Channel lights

     Cove LED lighting                                Edge lit signs

     Canopy illumination                            Off-grid lighting
