WR02RF 4-Zone RF Wireless Magnetic Battery Powered Panel Wall Remote For WB5, Milight (DIM & CCT)
WR02RF 4-Zone RF Wireless... $18.98
2.4GHz Single Color LED... $9.99
WB5 WIFI & Bluetooth 5in1... $22.98
2.4GHz RGB LED Controller... $9.99 $8.9810% off
2.4GHz RGB+CCT LED... $9.99
2.4GHz Dual White LED... $9.99 $8.9810% off
2.4GHz RGBW LED... $9.99
WR02RF 4-Zone RF Wireless...
2.4GHz Single Color LED...
WB5 WIFI & Bluetooth 5in1...
2.4GHz RGB LED Controller...
2.4GHz RGB+CCT LED...
2.4GHz Dual White LED...
2.4GHz RGBW LED...

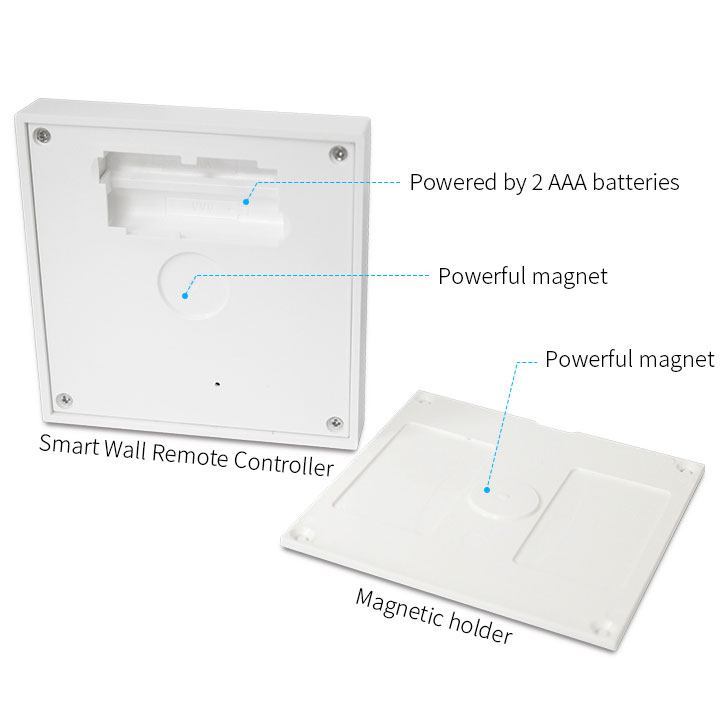

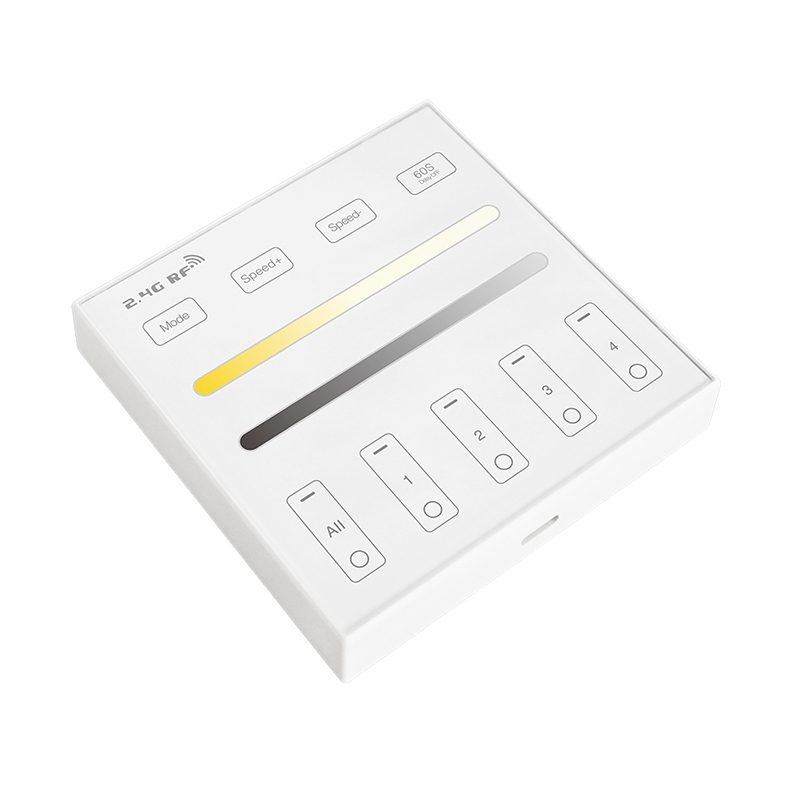

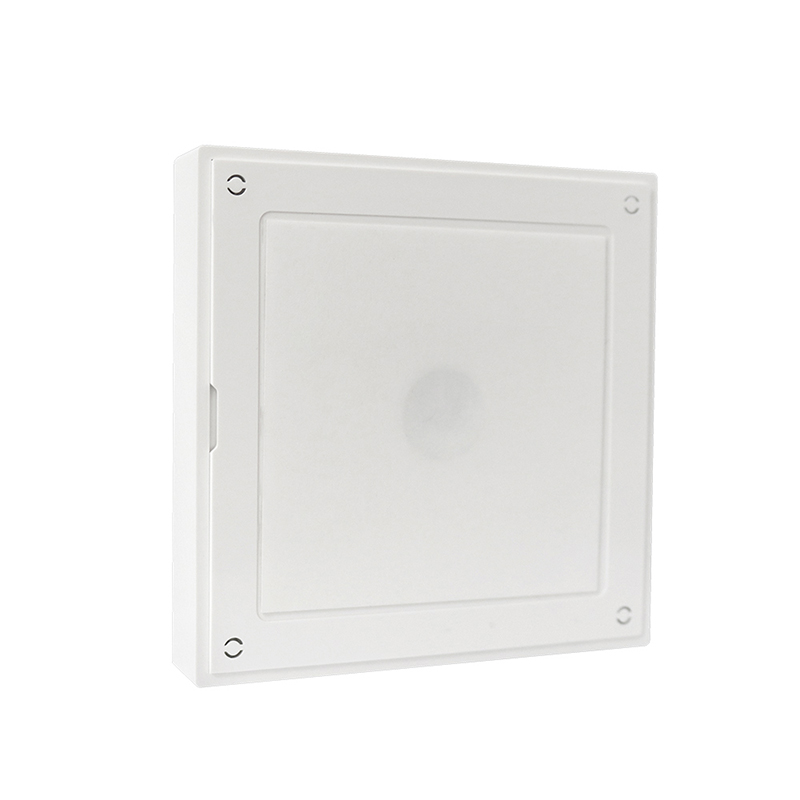

This 4-Zone LED touch panel wall remote for single color and CCT lights is powered by 2 AAA batteries, with a magnetic holder for easy installation, no need for wiring. It is compatible with RF 2.4GHz technology, 30m wireless control. You can match this wall panel controller to WiFi & Bluetooth WB5 or 2.4G series Mi-light LED controllers.
2.4G wireless control
Sensitive to touch, touching with different sound
High-end tempered glass panel, anti-scratching and anti-crushing
Color temperature adjustable
Dimming and saturation adjustable
60s delay time
Standards and Certifications
Product Name: 4-Zone RF Wireless Magnetic Wall Panel (Dim & CCT)
Working Voltage: 3V (2*AAA battery)
Standby Power Consumption: 20uA
Transmitting Power: 6dBm
Transmission Frequency: 2.4GHz
Working Temperature: -20℃-40℃
Control Distance: 30m
Product Size: 86*86*16.5mm
