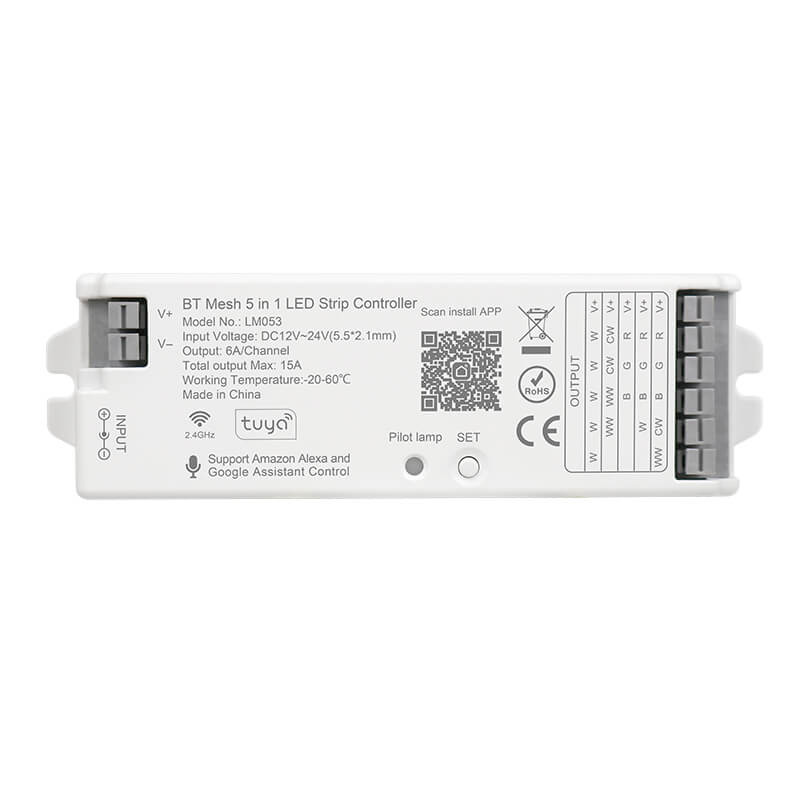

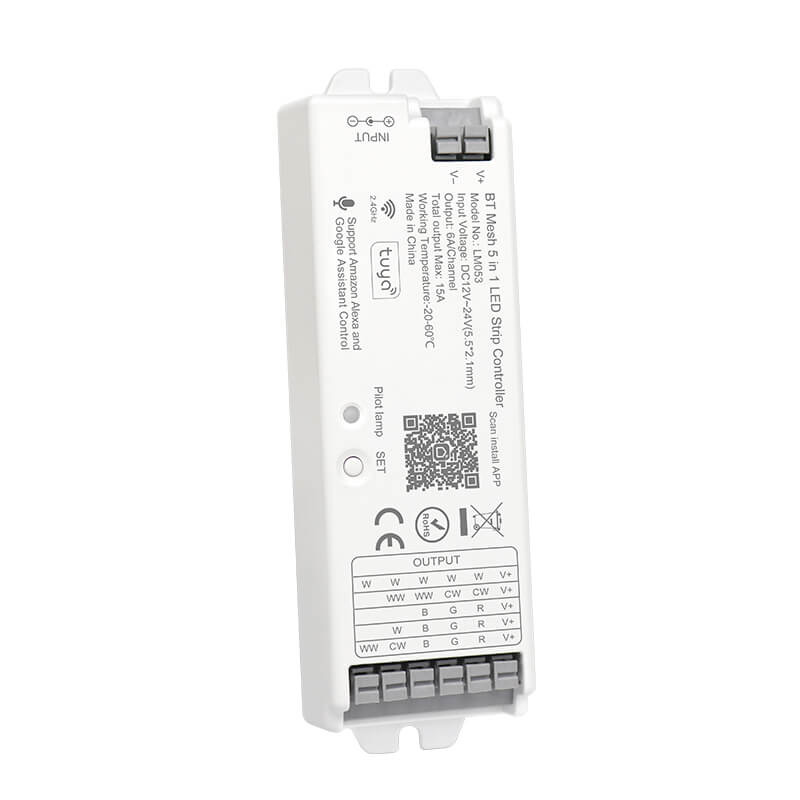

5 in 1 Bluetooth Controller Via Tuya and Smart Life Control for LED Strip Lighting
5 in 1 Bluetooth controller is compatible with a variety of led strip lights (single color/CCT/RGB/RGBW/RGBCCT) through Tuya and Smart Life smartphone APP. This led controller supports third party vioce control, need Bluetooth Gateway to achieve Google Assistant and Amazon Alexa voice control.
2.4GHz RF wireless remote control, group control, 30m control distance.
16 millions of color change, color saturation adjustable.
color temperature adjustable freely from warm white 2700K to pure white 6500K.
1-100% beightness dimming, night light mode function.
Support music rthythm.
Signal auto-transmitting and mode auto-sync function.

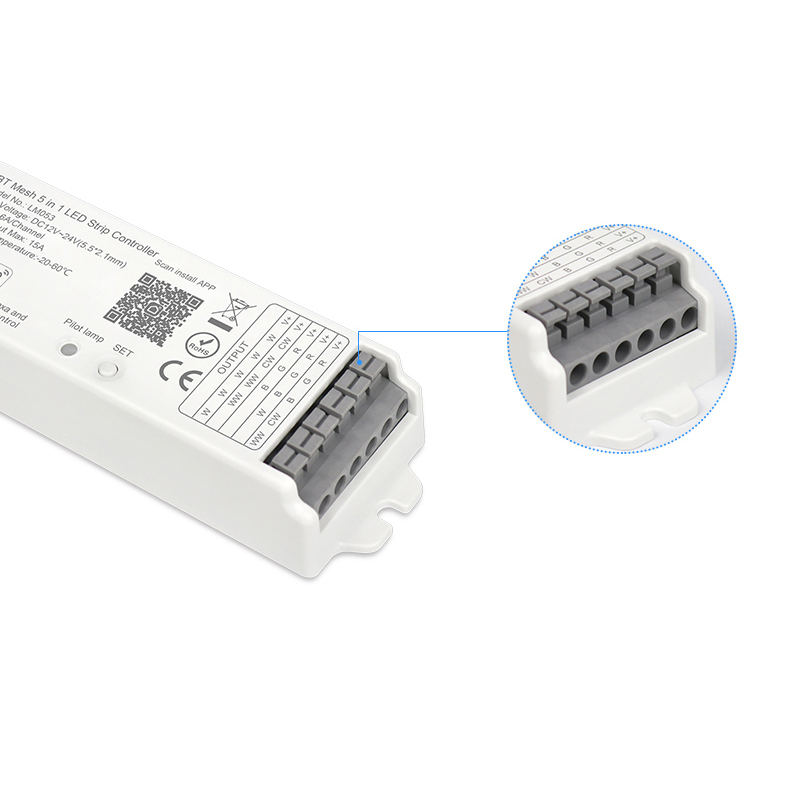

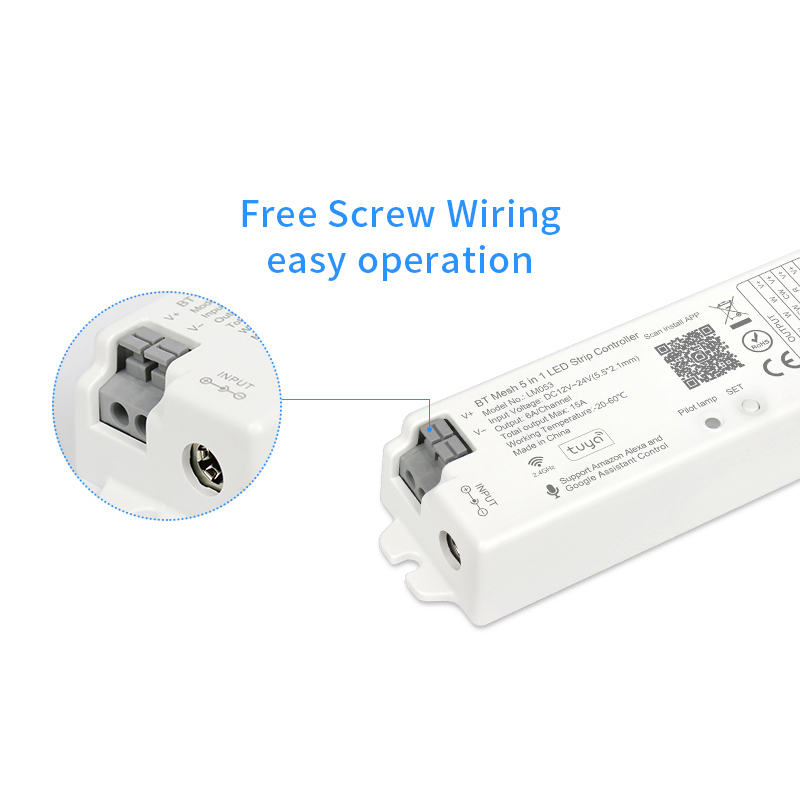

Free scew wiring, easy operation.
The LM053 Bluetooth controller with Single Color Dimming, CCT Color temperature, RGB Color Changing, RGB+W, and RGB+CCT output modes. You need to short-press the "SET" key of the controller to switch to your led strip mode before matching, white light pilot lamp for single color led strip, yellow light for CCT, red light for RGB, green light for RGBW, and blue light for RGBCCT. (It's necessary, related to your control page)
Standards and Certifications
How to wire the LED strip light?
