16 Channel MADRIX ARTNET LED Controller with SD Card for Addressable Lights GC-5016
Related Products
16 Channel MADRIX ARTNET...
$167.98
DC12V Ultra High Density...
$109.98
Artnet DMX Recorder...
$121.98
8mm Narrow Dense...
$52.98
12 Channel SD Card TTL...
$112.98
DC24V DMX512 Outdoor...
$91.98
8 Channel Online and...
$113.98-
Special Price: $167.98

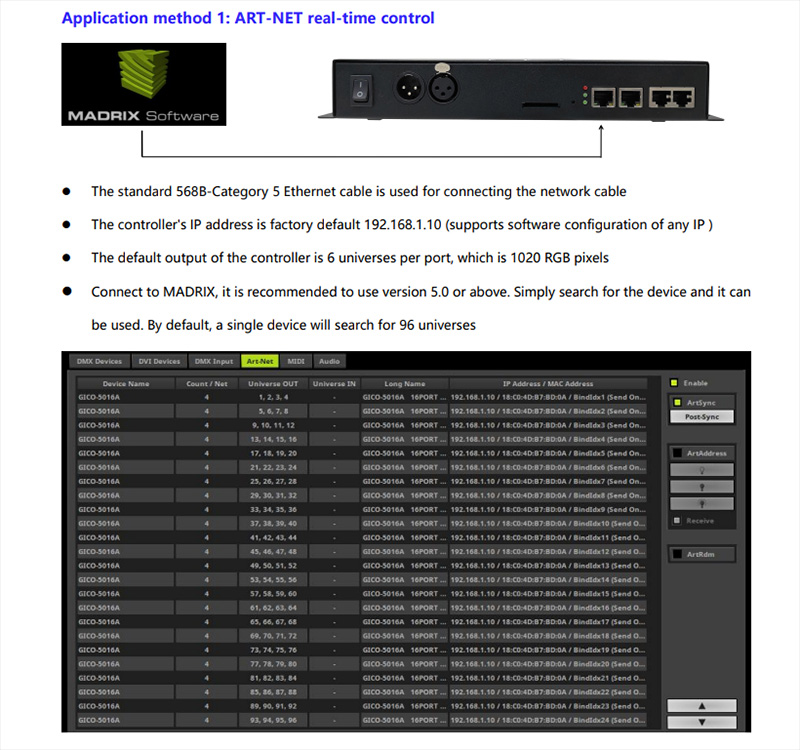

The GC-5016 is a 16-port ART-NET controller that can be connected both online and offline. It can be connected to a computer for real-time preview, to MADRIX ART-NET, or to an SD card for offline playback. It can also be connected to a DMX console. With industry-leading specifications, it offers 16 output ports capable of outputting TTL and SPI data signals. The GC-5016 uses FPGA as the core processor, enabling high load, high frame rate, and high grayscale control, thanks to the powerful data processing capabilities of FPGA.

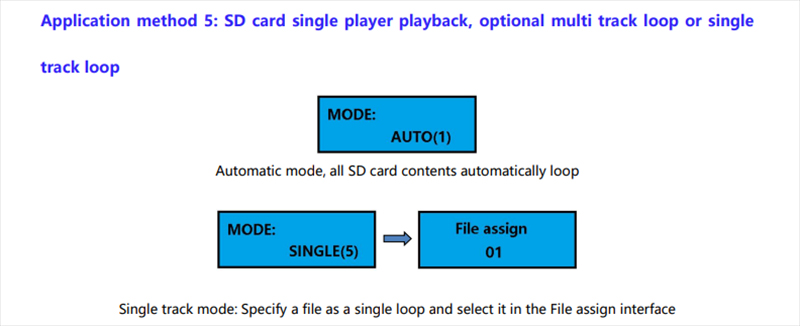

The GC-5016 can read programs from SD cards and run them offline with plug-and-play functionality, making it a stable and highly applicable offline LED controller. It is the first 16-port offline controller in the industry, with fully isolated outputs, capable of supporting a single load of over 16,000 pixels. This makes it especially beneficial for construction site wiring.

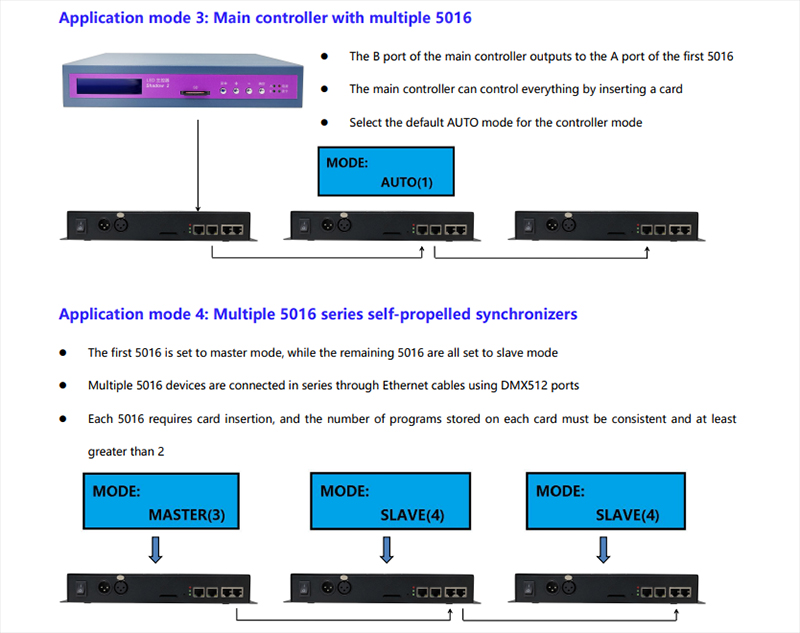

The GC-5016 also features an external console triggering function, allowing it to connect to a console or KTV intelligent lighting control box. This makes it ideal for bar and KTV private room lighting control, where console commands can be used to call programs and adjust speed and brightness.
The GC-5016 is perfect for various LED lighting projects, including landscape lighting, building outlines, bars, KTVs, and more. When combined with our multifunctional editing software "FAST LED" and compatible with lighting software like MADRIX, ARENA, XLights, and MadMapper, it can create any effect—such as color gradients, jumping, chasing, images, videos, and text. It is widely used in LED lighting projects such as office buildings, hotels, store signs, bars, KTVs, restaurants, ice rinks, and banquet halls.
Standards and Certifications
Specification
| Input Voltage: | AC 110-240V |
| Power Consumption: | 3W |

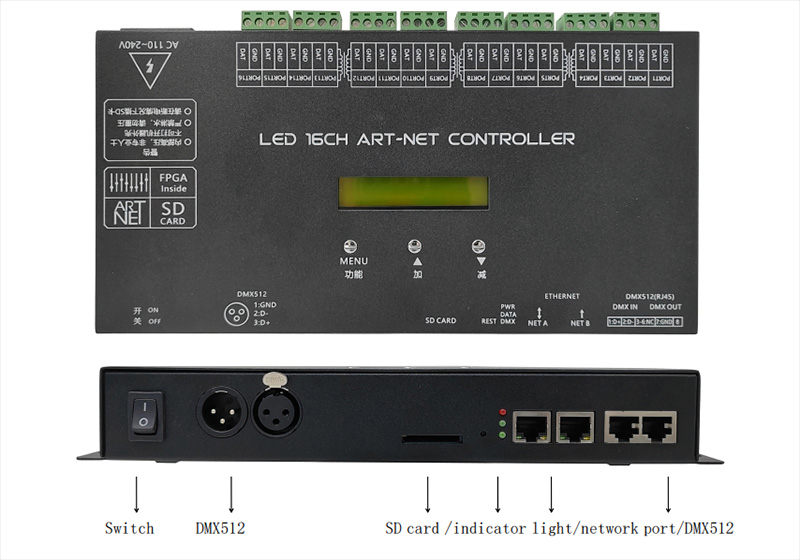

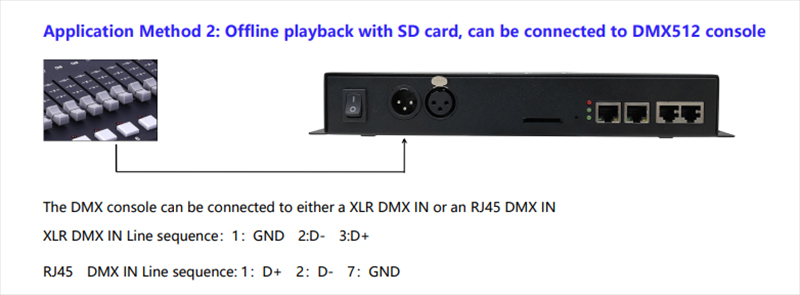

| DMX Trigger Interface: | RJ45 (DMX512) / 3-Core XLR Head |

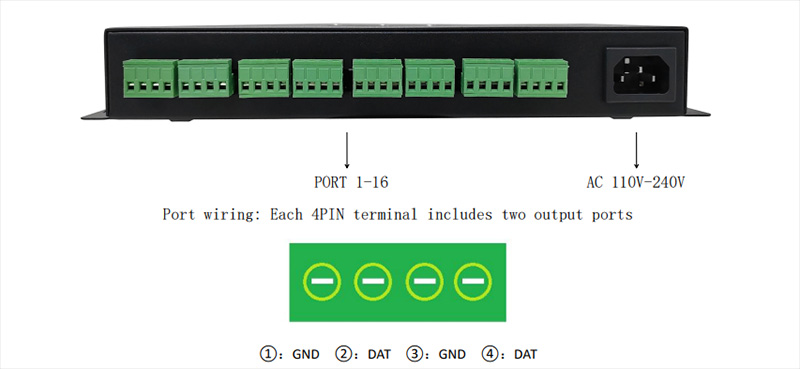

| Output Interface: | 16x2pin (TTL) |
| Output Signal: | TTL |
| Working Temperature: | -20℃～65℃ |
| Dimension: | L278×W140×H39 mm |
| Weight (G.W): | 1.6 Kg |
