Product Information

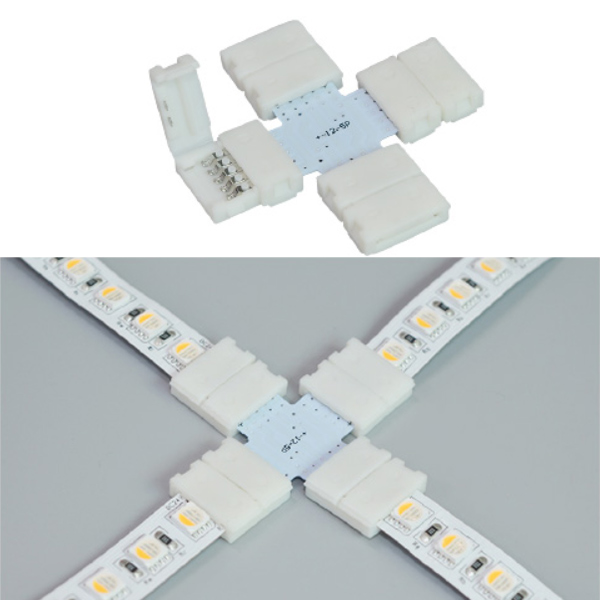

Create flawless, four-way intersections in your custom lighting layouts with the Cross Shape 5-Pin Solderless Connector. Specifically designed for 12mm wide, non-waterproof 5050 RGBW LED strips, this connector eliminates the need for soldering, making complex installations simple and fast. Its unique '十' shape is the perfect solution for building grid-like patterns on walls or ceilings, or for any project requiring four light strips to meet at a central point. The secure clamp-down mechanism ensures a reliable connection for consistent color and brightness across your entire setup, providing a clean, professional finish without any technical hassle. This is an essential component for ambitious DIY projects, retail displays, and architectural accent lighting.
Key Features
Solder-Free Installation
Features an intuitive snap-down clasp design for quick, secure, and reliable connections without any soldering or special tools.
Unique Cross (十) Shape
Enables clean, stable four-way connections, perfect for creating grid layouts, intersecting lines, or complex geometric designs.
Precise Compatibility
Engineered exclusively for 5-pin, 12mm wide non-waterproof (IP20) 5050 RGBW LED strip lights, ensuring a perfect fit and optimal performance.
Secure & Stable Connection
High-quality internal contacts grip the strip's pads firmly, ensuring uninterrupted power and signal flow for consistent lighting.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 十 Shape 5 Pin RGBW LED Strip Solderless Connector |
| Model | RGBW-ACCESSORIE-015 |
| Shape | Cross / Plus (十) |
| Pin Quantity | 5 |
| Connector Type | Strip-to-Strip |
| Connection Method | Solderless, Clamp-on |
| Compatible Strip Width | 12mm |
| Compatible Strip Type | SMD 5050 RGBW |
| Compatible IP Rating | IP20 (For Non-Waterproof Strips) |
| Material | Fire-retardant PVC Plastic |
| Working Voltage | DC 5-24V |
| Max Current | 5A |
Application Scenarios
How to Use This Cross Shape Solderless Connector
- Turn off the power supply before installation.
- Ensure you are using a compatible 12mm wide 5-pin non-waterproof RGBW LED strip.
- Cut the LED strip cleanly along the designated copper cut lines.
- Open the white clasps on all four sides of the cross connector.
- Slide one strip end into each of the four ports, ensuring the strip sits underneath the metal contact pins.
- Verify that the polarity markings (+, G, R, B, W) on all four strips are aligned correctly to ensure proper function.
- Press down firmly on each white clasp until it snaps shut, securing the strips in place.
- Gently tug each strip to confirm it is held securely. Reconnect power to test your new layout.
- This connector is designed exclusively for 12mm wide, 5-pin non-waterproof RGBW LED strips. It is not compatible with 10mm strips, waterproof/coated strips, or strips with a different pin count (2, 3, 4, or 6-pin).
- Incorrectly aligning the polarity (+, G, R, B, W) can cause the lights to function improperly or not at all. Always double-check alignment before closing the clasps.
- Ensure the total current of your connected LED strips does not exceed the 5A maximum rating of the connector to prevent overheating.
What's in the Box
- ✓1 x 十 Shape 5 Pin RGBW LED Strip Solderless Connector
Frequently Asked Questions
Q: Will this 5 pin led strip light connector work with waterproof RGBW strips?
A:No, this solderless connector is designed for non-waterproof (IP20) strips only. The silicone coating on waterproof strips will prevent the pins from making a secure connection.
Q: Can I use this connector for a 10mm wide RGBW strip?
A:No, this connector is specifically machined for 12mm wide PCBs. Using it with a 10mm strip will result in a loose and unreliable connection.
Q: What is a '十' or cross-shape connector used for?
A:It allows you to connect four separate RGBW LED strips at a single 90-degree intersection, creating a clean four-way junction point. It is perfect for making grid patterns or other complex layouts.
Q: Is any soldering required for this led strip solderless connector?
A:No, this is a completely solderless connector. It uses a simple but effective clamp-on mechanism to create a secure electrical connection.
Q: Does this work with standard 4-pin RGB strips?
A:No, this is a 5-pin connector designed exclusively for RGBW LED strips that have five contact points (+, R, G, B, W). It will not work with 4-pin RGB strips.
Q: How do I ensure the colors match up across all four connected strips?
A:Before closing the clasps, make sure the polarity markings (e.g., '+', 'G', 'R', 'B', 'W') on each strip end are aligned with the corresponding pins inside the connector. All strips should be oriented the same way.
