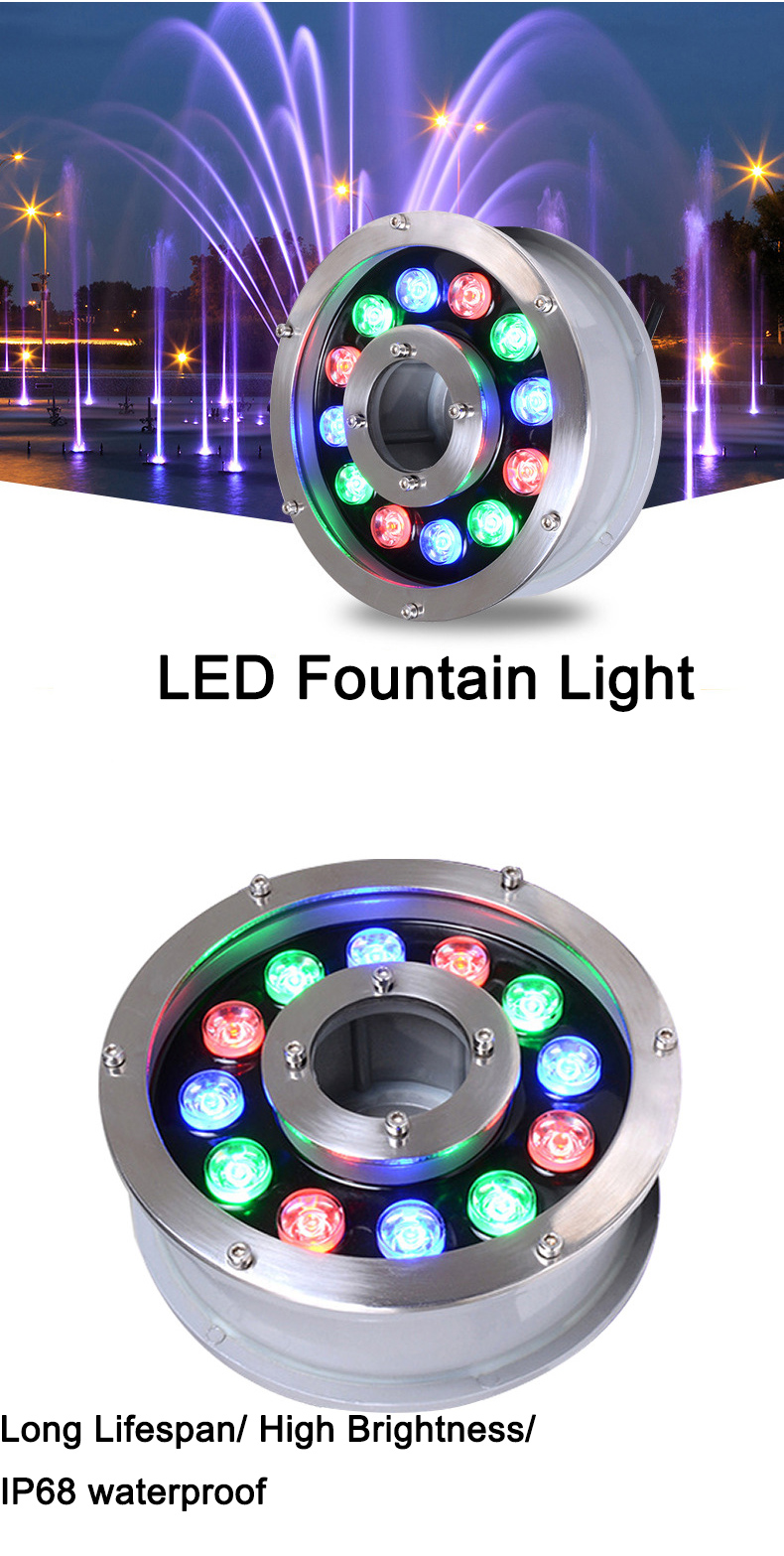

Product Information
DMX compatible; and it requires a DMX master to manage the lights.
Default RGB DMX512 external control input voltage: DC24V
The fountain light must be used under the water. 304 Stainless Steel Material.
Please note: For single color version, we can do the voltage of DC12V, DC24V, AC24V (New Model: FOUNTAIN-RING-SL).
For RGB version, only have AC24V (New Model: FOUNTAIN-RING-RGB).
For DMX512 version, only have DC24V.
DMX512 Underwater LED Light Wiring Diagram
Standards and Certifications
Product Specification
Light Source: 1W high power LED
Luminous Efficiency: 110 lm/w

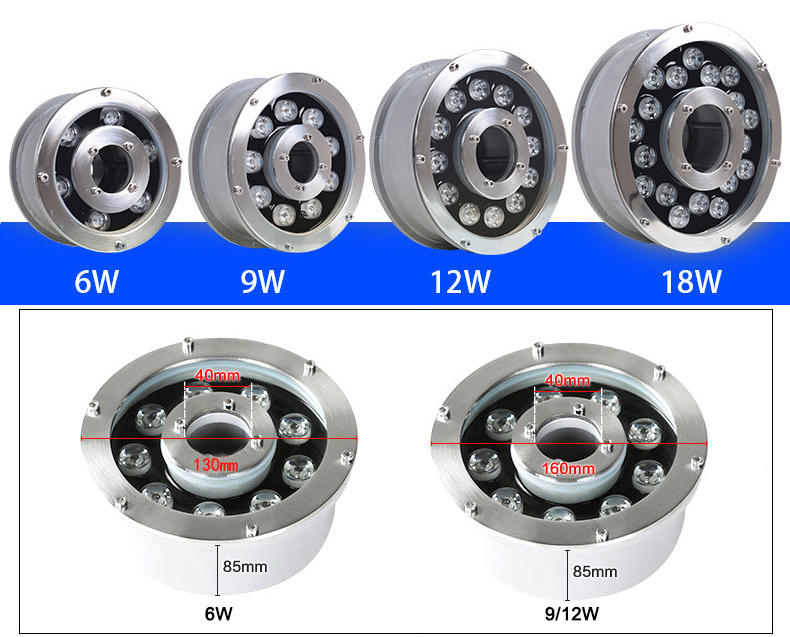

Power Consumption: 6/9/12/15/18/24/36W
Color: DMX512 Addressable RGB
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Lifespan: 50000 hours
Luminous flux: 1800LM
Color rendering index: 80
Waterproof rating: IP68
Control method: DMX512
Voltage: DC24V
Material: die-cast aluminum + stainless steel + tempered glass
Product Certification: CE Rosh
Package inclueded:
1 Pieces x led underwater light

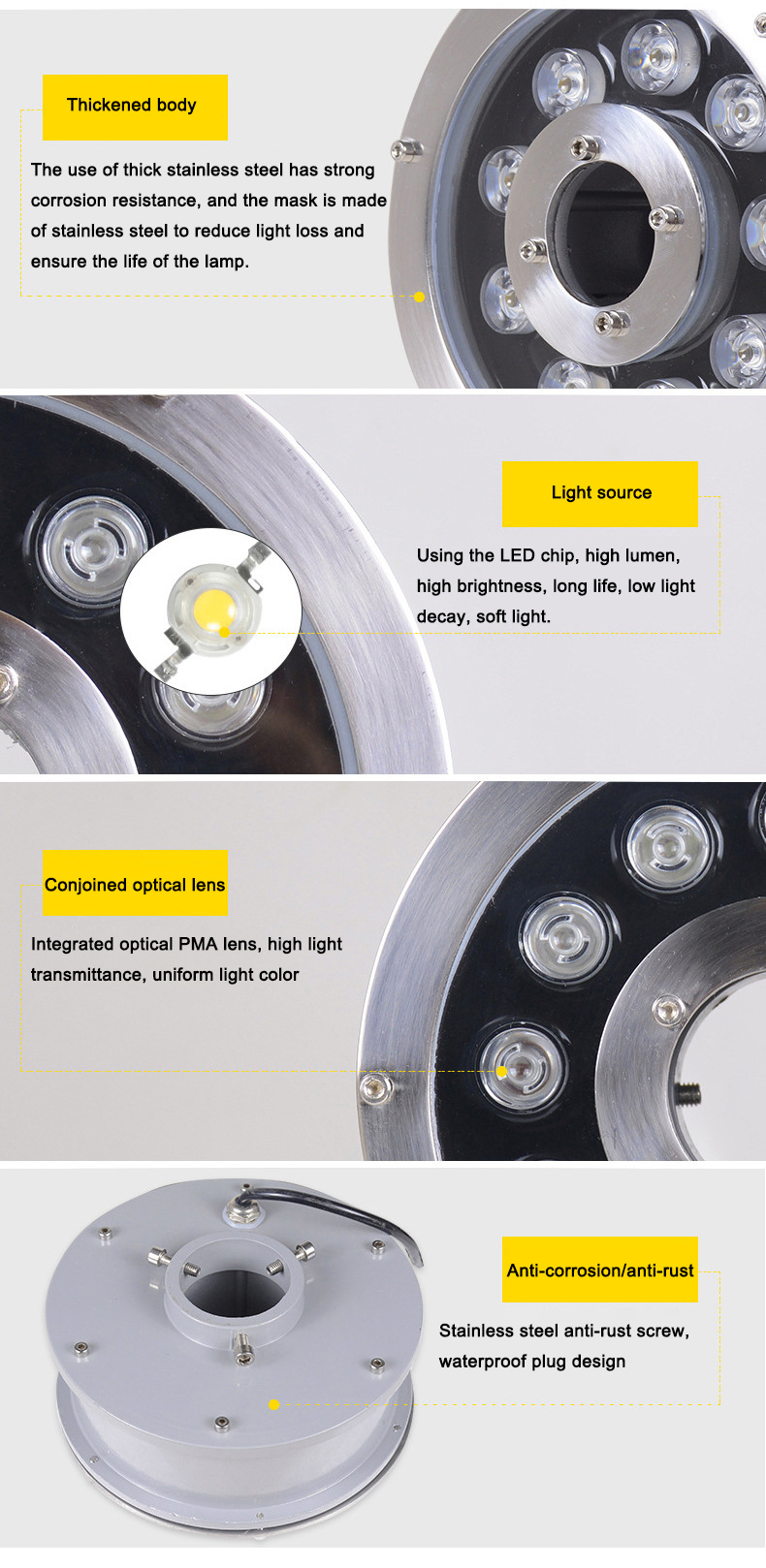

Product Advantages:
Thickened main body: the use of thickened stainless steel has strong corrosion resistance, and the mask is made of stainless steel to reduce light loss and ensure the life of the lamp.
Light source: LED chip, high lumen, high brightness, long life, low light attenuation, soft light.
One-piece optical lens: integrated optical PMA lens, high light transmittance, uniform light color
Anti-corrosion/anti-rust: stainless steel anti-rust screw, waterproof plug design

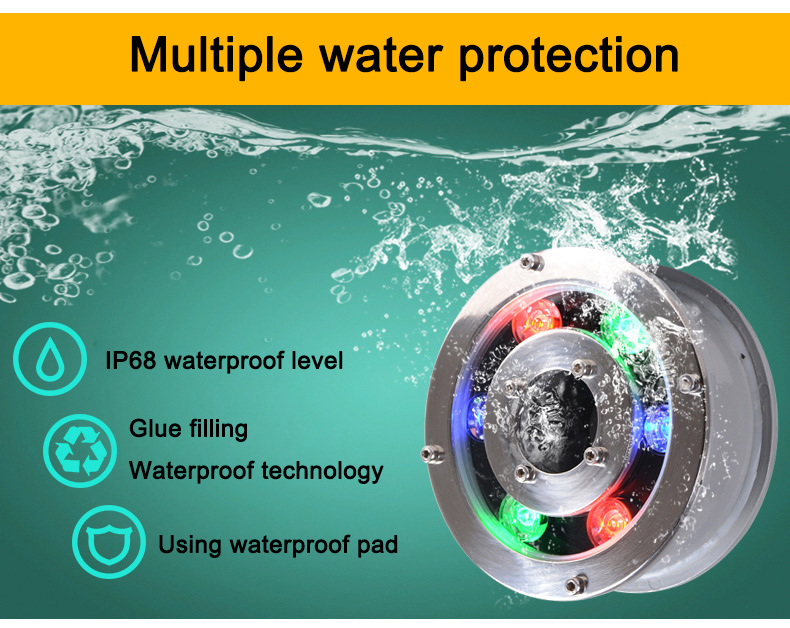

Multiple water protection: IP68 waterproof grade, glue filling, and waterproof process using waterproof pad film
Product types optional
we have different lighting color for you to choose
You can also choose our product with a wireless remote control
Our remote controller is 12-key RF smart remote control
7 fixed colors, 3 dynamic color changes
Sensitive remote control, synchronous control within 50 meters
No need to connect in series, connect to control
You can choose the colorful jump and RGB jump mode

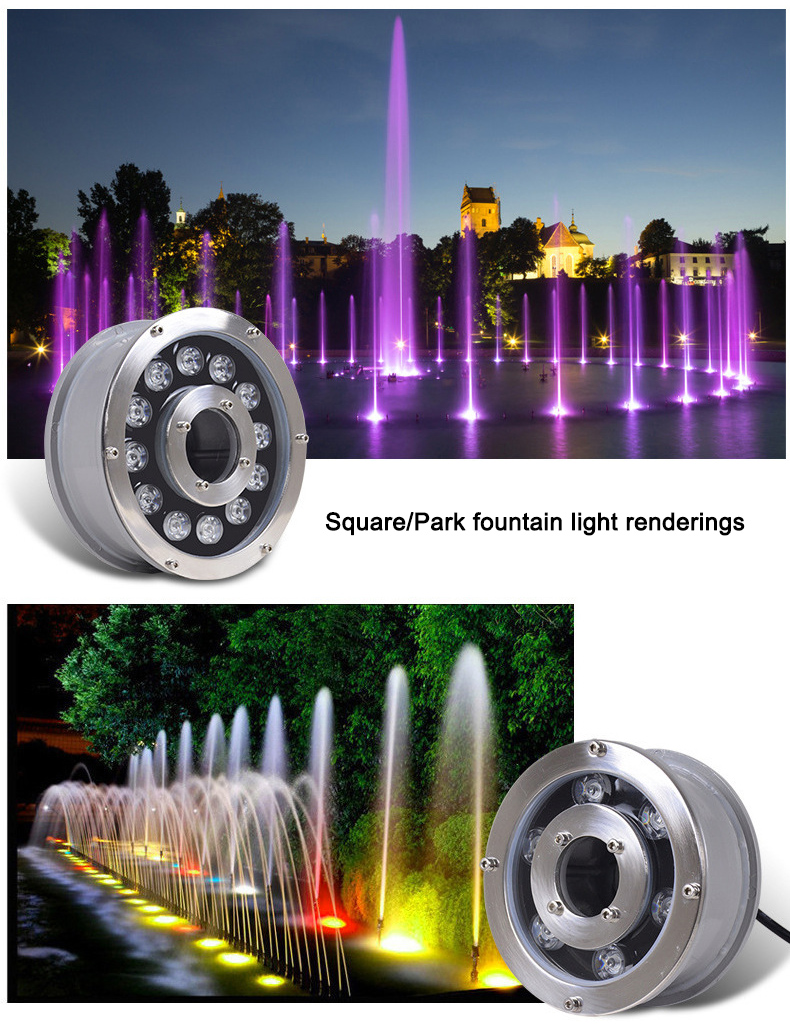

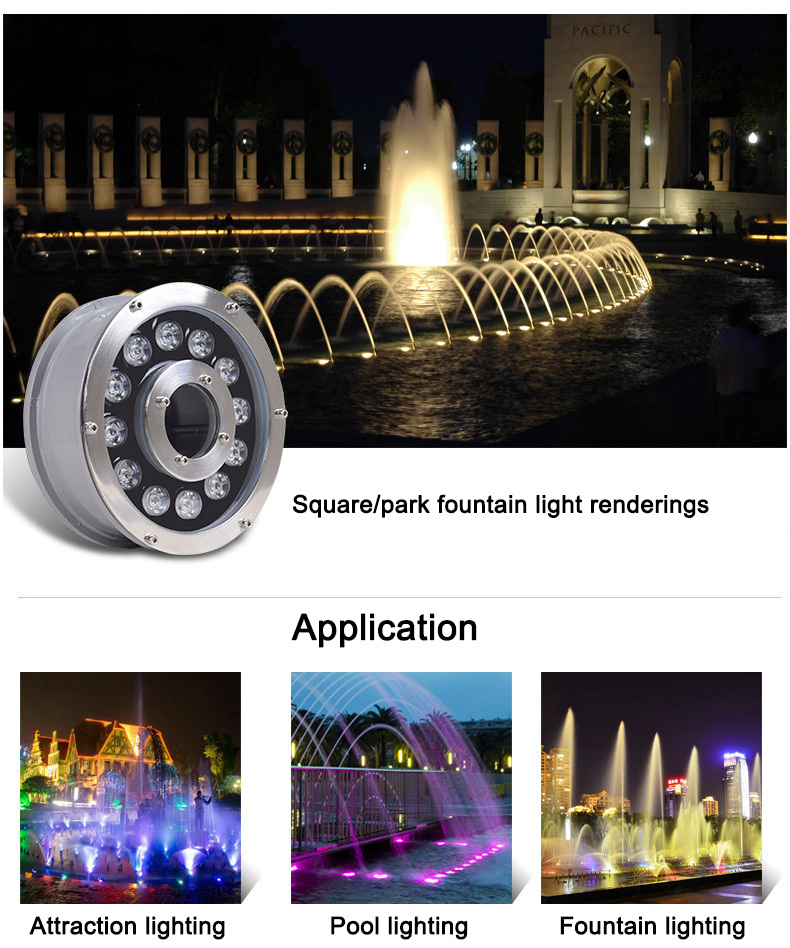

Application:
Attraction lighting
Pool lighting
Fountain lighting
LED Landscape Lighting
Submerged Pond Lighting
Underwater Lights
Underwater LED Pool Lighting
LED Fountain Lights
Waterfall Lights
Pond Lighting
Connection diagram:
