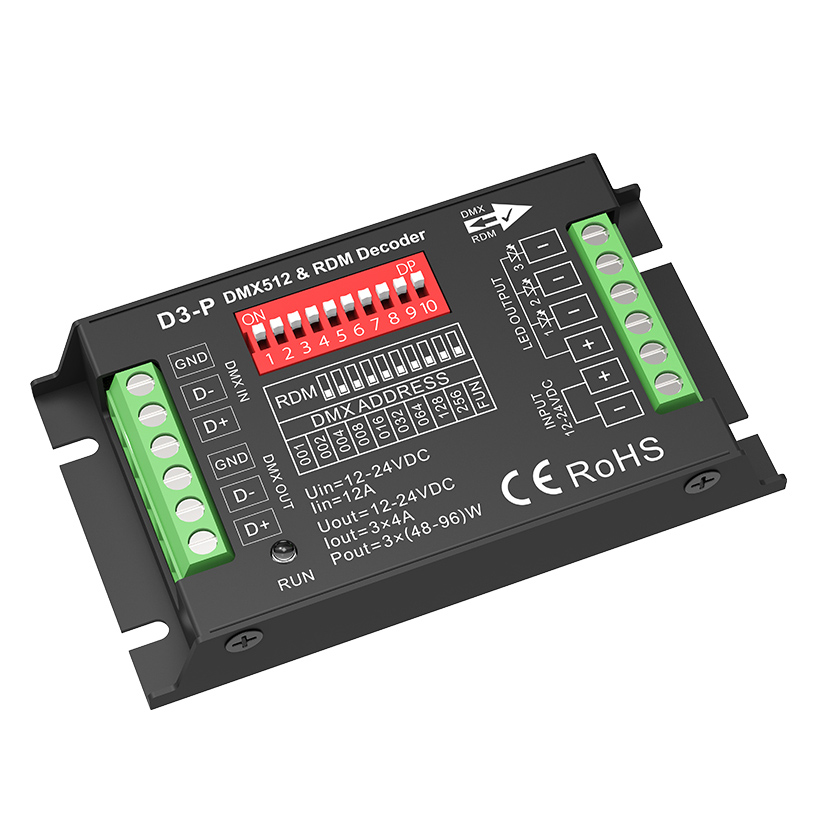

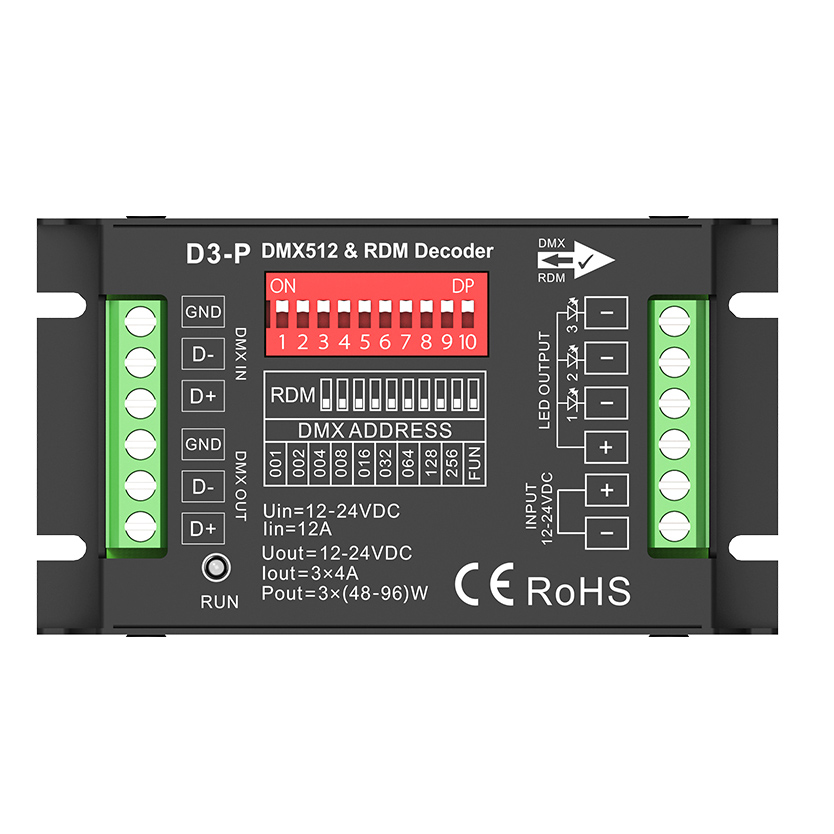

12-24VDC 3CH*4A CV DMX Decoder D3-P
Comply with the DMX512 standard protocols.
Set DMX decode start address via DIP switch
RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.

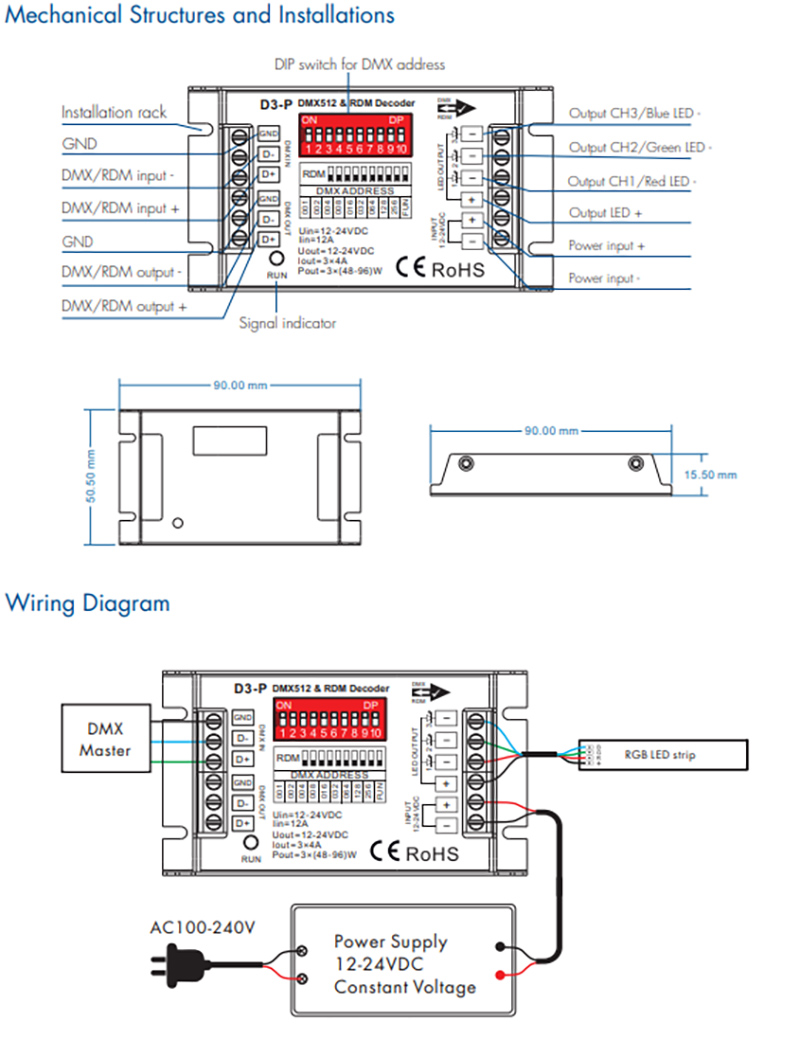

Green termimal DMX signal input & output
Over-hat/Short circuit prctection, recover automatically.

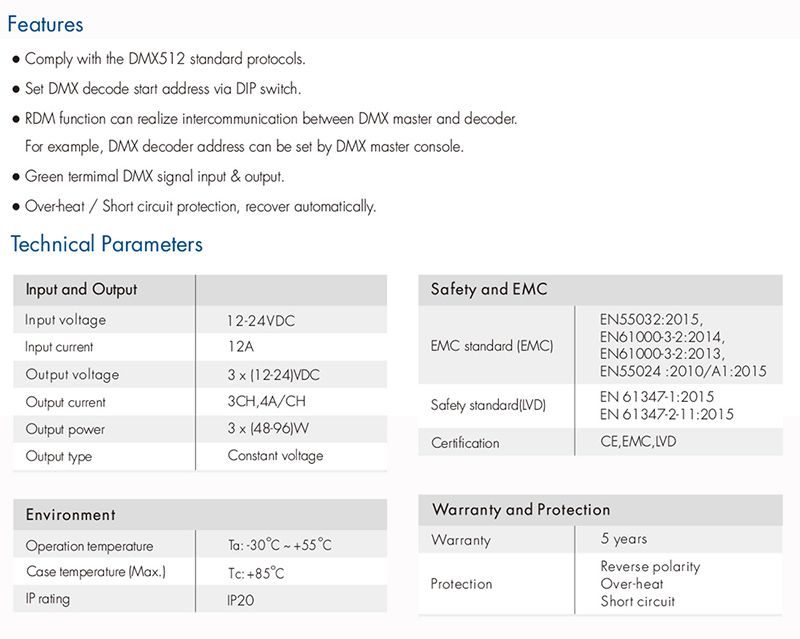

Input and Output
Input current: 12A
Output voltage: 3 x (12-24)VDC
Output current: 3CH,4A/CH
Output power: 3 x (48-96)W
Output type: Constant voltage
Operation temperature:Ta: -30C~+55"C
Standards and Certifications
