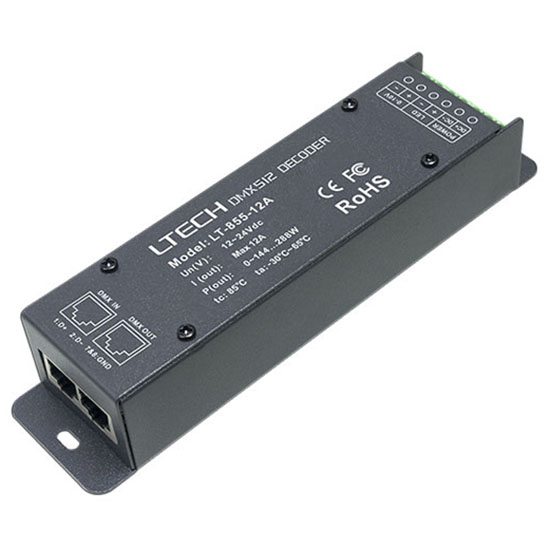

1CH CV DMX Decoder LT-855-12A
LT-855-12A DMX decoder works to convert universal DMX512 digital signal to PWM signal, realize 0-100% brightness can control single color LED lights. 0-10V signal output socket also available.
1CH CV DMX Decoder LT-855-12A
Input signal： DMX512
Input power ：DC12V～DC24V

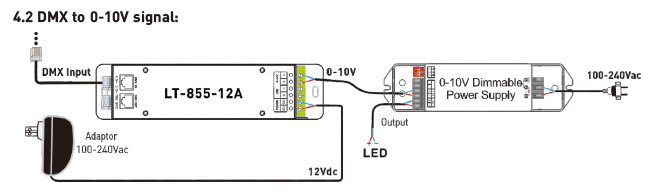

Output ：12A x1CH+0-10V x1CH
Max output power： 144W/288W(12V/24V)

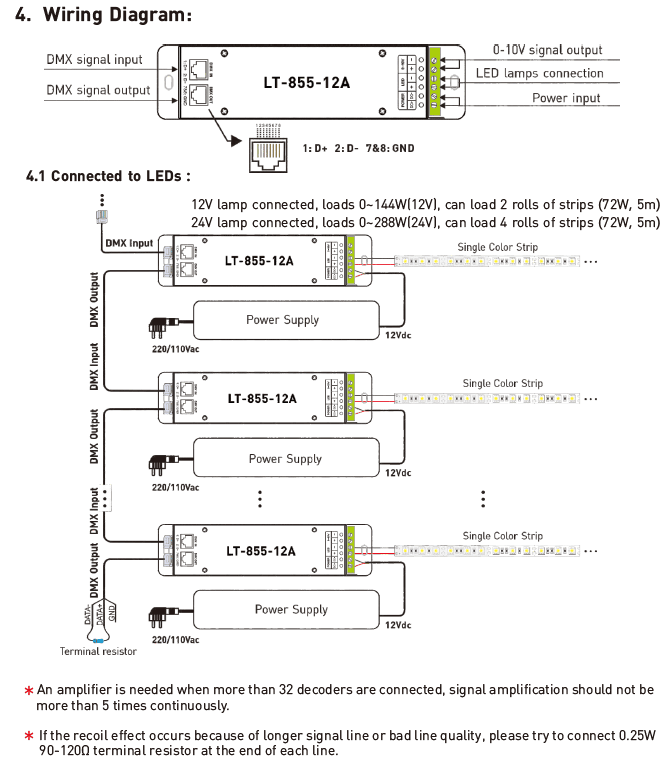

DMX512 socket： RJ45
Dimming range ：0～100%
Working temperature ：-30℃～65℃
Package Size ：L183×W48×H41(mm)
Weight (G.W) ：310g
