RGBW Controller M4+M4-5A
M series LED controller is compatible with 8 kinds remotes of different function (patent technology).
which means using one receiver could experience single color/CT dimming, RGB/RGBW adjustment to
meet customers' different lighting requirements. With the RF remote, speed/brightness adjustment.
customize color and lighting changing modes selection could all be achieved
Remote :Model: M4
Working Voltage: 3V DC(battery CR2032)
Working Frequency: 433.92MHz
Remote Distance: 30m
Working Temp.:-30 ~55 ℃ ℃
Weight(N.W.): 42 g

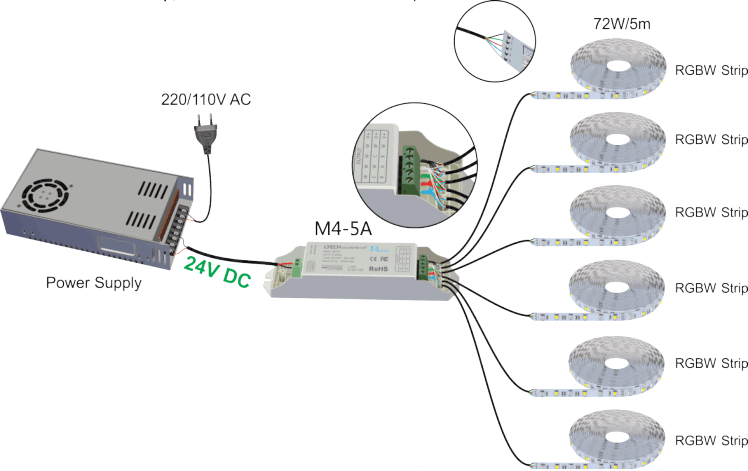

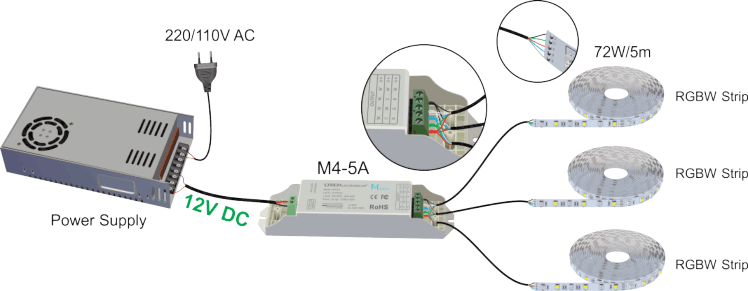

CV Receiver (RGBW):
Input Voltage: 12~24V DC
Max Current Load: 5A×4CH Max 20A
Max Output Power: 100W/240W/480W(5V/12V/24V)
Working Temp.:-30 ~55 ℃ ℃
