Product Information

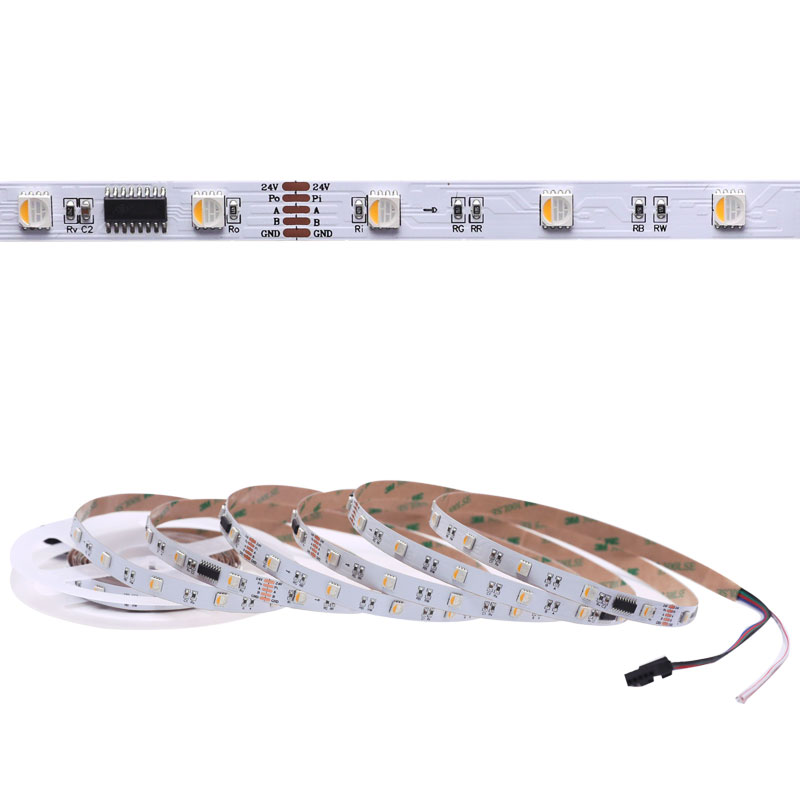

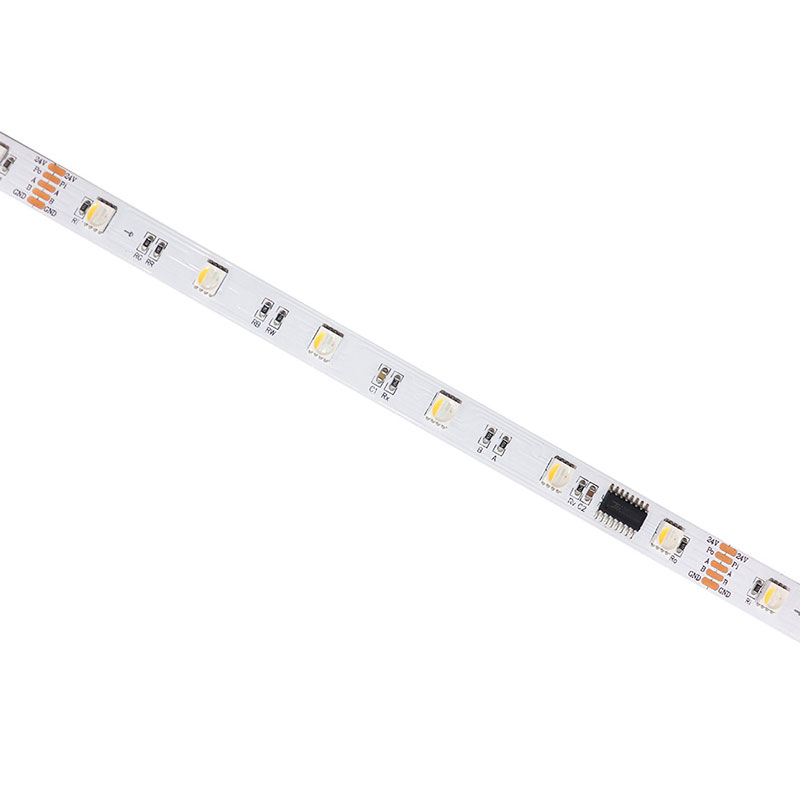

10mm 36LEDs/m DMX RGBW led strip. This DC24V RGBW programmable DMX512 led strip adapts SMD5050 4in1 RGBW LEDs as light sources, high light brightness. 36 LED lights per meter, a total of 180 lights per roll. DMX LED strip lights are with low power consumption, it only consumes 11W per meter, and 55W per roll. You just need a LED power supply that has a capacity of at least 66W to run this strip light. Low-voltage 24V DC input, more secure to use.
This DMX light strip has 6 ICs per meter, and 30 ICs per roll. One DMX512 IC controls 6 LED RGBW lights. 6 DMX lights as a loop (166.7mm cut length), easy to cut and connect! It can use DMX512 controller, Artnet controller, Madrix console, or GPS signal control to realize the design of large-scale lighting, such as light shows, stage lighting, etc.
DMX512 Chips Specifications Download
Standards and Certifications
Product Specification
| LED Strip Type: | DMX512 RGBW Addressable LED Strip Light |
| LED Chip: | SMD5050 + 16-Pin UCS512C4 IC |
| Input Voltage: | DC24V |
| Power: | 11W/m, 55W/16.4ft |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | RGBW |

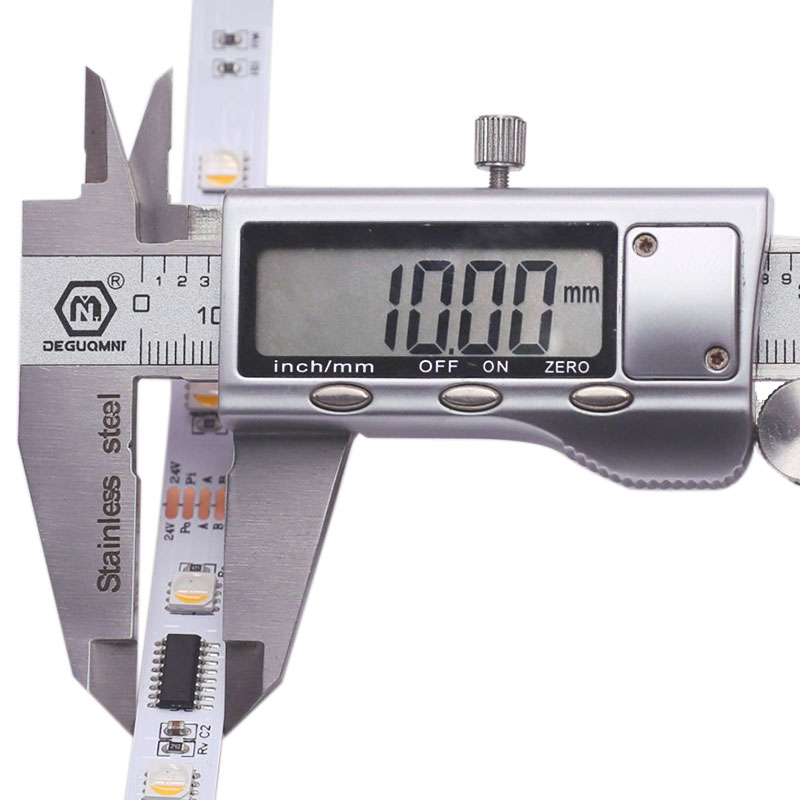

| PCB Width: | 10mm |
| LED Quantity: | 36 LEDs/m, 180 LEDs per roll |
| IC Quantity: | 6 ICs/m, 30 ICs per roll |
| Cut Unit: | 166.7mm / 6 LEDs can be cut |
| Waterproof Rating: | Non-waterproof IP20, Indoor Waterproof IP65, Outdoor Waterproof IP67 IP68 |
| Strip Length: | 5m/16.4ft |
| Beam Angle: | 120° |
| Lifespan: | 30,000+hours |
| Lumen: | 22 lm/LED |
DMX Lighting Wiring Diagram:
Available LED Strip Lights Fixtures:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
LED aluminum channel also has multiple types to create your linear lighting, surface mounted, recessed mounted, or hanging mounted, etc. And they all evenly diffuse the strip lighting and protect the LED strips.
