24V LED Strip Light Kit CCT White Color Temperature Dimmable

Model: FSLCCT-24-30145MKIT
24V LED Strip Light Kit CCT White Color Temperature Dimmable

Select Specifications:

$80.00 $67.9815% off

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

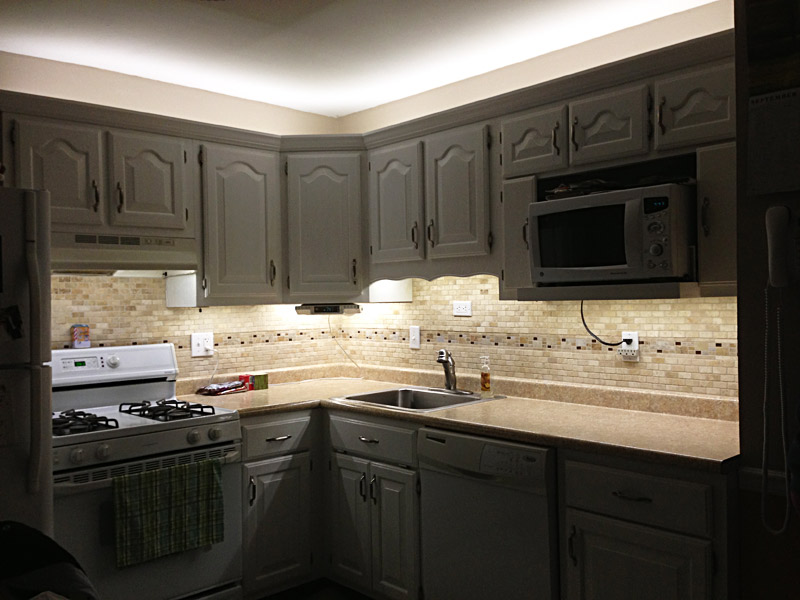

    This tunable white LED light strip kit is perfect for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. The kit includes a tunable white LED light strip with color temperatures ranging from 2700K to 6000K, an LED controller with wireless RF remote, and a UL-Listed 24V power supply. Use the RF remote to adjust brightness and/or color temperature from greater than 50' away in open air. The flexible light strip has 1200 LEDs (600 cool white and 600 warm white) that emit a wide 180° viewing angle. Reeled LED strip is 16-1/2' long and can be cut into 6-LED segments. Easy installation with peel-and-stick 3M VHB adhesive backing. The non-weatherproof strip has 24V DC operation and is designed to last 30,000 hours.



    Applications

    Task Lighting

    Accent Lighting

    Retail Lighting

    Cove LED Lighting

    Under-Cabinet Lighting

    LED Display Case Lighting

    Trade Show Lighting



    Specifications

    Current Draw: 2970mA

    Dimmable: Yes

    IP Rating: Non-Weatherproof

    LED Color: Tunable White

    LED Density: 73 LEDs/ft.

    Total Length: 196.9in (16.40ft)

    Remote Control: Radio Frequency (RF)

    Special Features: Complete Kit, Remote Control

    Standards And Certifications: RoHS Compliant

    Strip Width: 10mm (0.39in)

    Operating Voltage Range: 100~240 VAC

    Wattage: 19.2 W/m (5.85 W/ft)



    Controller Specifications

    Input Voltage: 5 ~ 24 VDC

    Rated Current: 7 Amps/CH x 2 Channels

    Remote Specifications

    Type: Radio Frequency (RF)

    Maximum Range Up to: 15m (Optimum)

    Battery Type: 1 x CR2025



    Strip Specifications

    Full Length: 196.9in (16.40ft)

    Section Length: 2 Inches

    Strip Width: 10mm (0.39in)

    Input Voltage: 24 VDC

    Total Power Consumption: 96 Watts

    Number of LEDs: 1200 LEDs

    LEDs per Segment: 12

    LED Color: Tunable White

    LED Type: 2216 SMD

    LED Lifetime: 30000 Hours

    Beam Angle: 180 degree

    Intensity :511 lm/ft

    Strip Finish: White

    Polarity Sensitive: Yes

    Wire Length: 8in(20.3cm)



    Power Supply Specifications

    Input Voltage: 100 ~ 240 VAC

    Input Frequency: 47 ~ 63 Hz

    Output Voltage: 24 VDC

    Output Current: 5000mA

    Power: 120 Watts Maximum

    Wire Length: 59in(150cm)





    24V LED Strip Light Kit CCT White Color Temperature Dimmable

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    24V LED Strip Light Kit CCT White Color Temperature Dimmable
