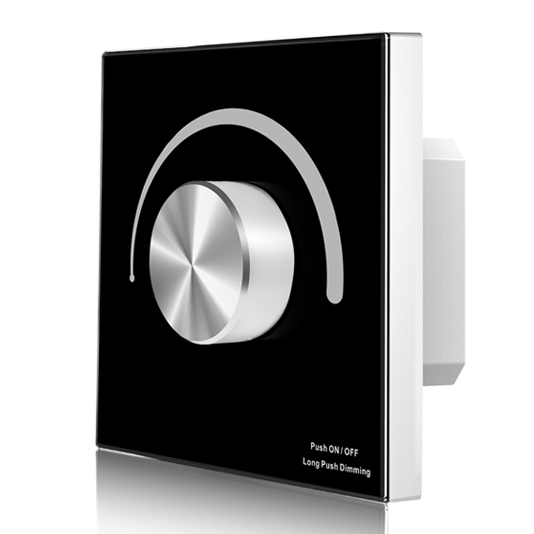

Rotary Glass Panel Single Color LED Constant Voltage Controller T1-K For Single Color led strip light switch
Rotary panel single color PWM constant voltage controller, can also be used as single color remote.
1-3 color/Glass panel/Rotary dimming/DC input/3 channel constant voltage PWM output/Wireless remote control

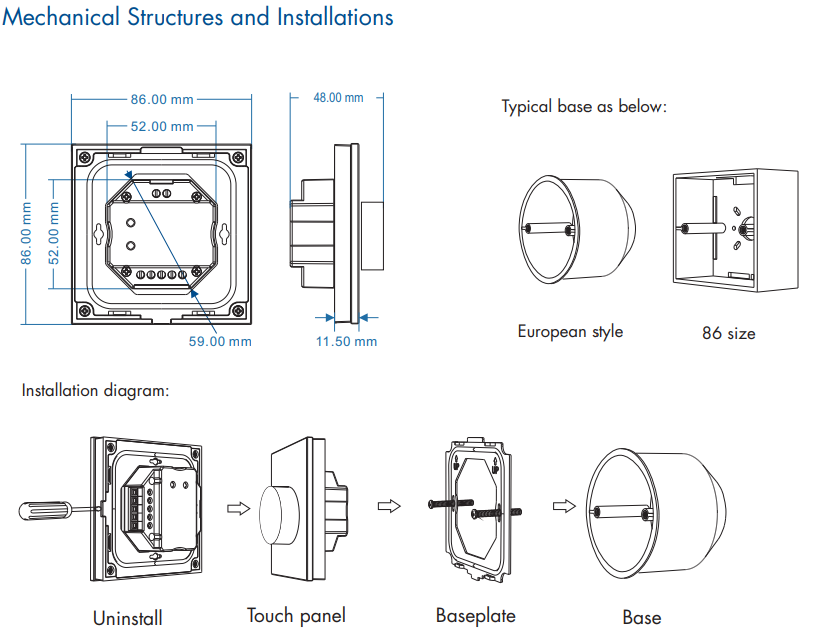

Wall Mounted Rotary Panel
● Rotary panel single color, dual color, or RGB PWM constant voltage controller.

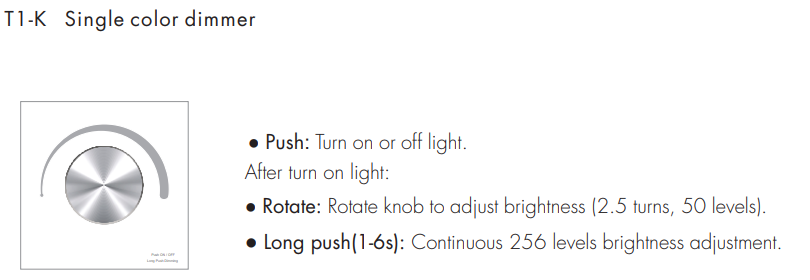

● Rotate the knob to change RGB color, color temperature, or brightness.
● 256 levels 0-100% dimming smoothly without any flash.
● Compatibility with RF 2.4G single zone or multiple zones remote control.
● Push/Rotate with chord tones and LED indicator.
● White & Black glass panel available.
Standards and Certifications
Input and Output
Input voltage: 12-24VDC
Input current: 12.5A
Output voltage: 4 x (12-24)VDC
Output current: 4CH,3A/CH
Output power: 144-288W
Output type: Constant voltage
Light type: Single color
Safety and EMC
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328

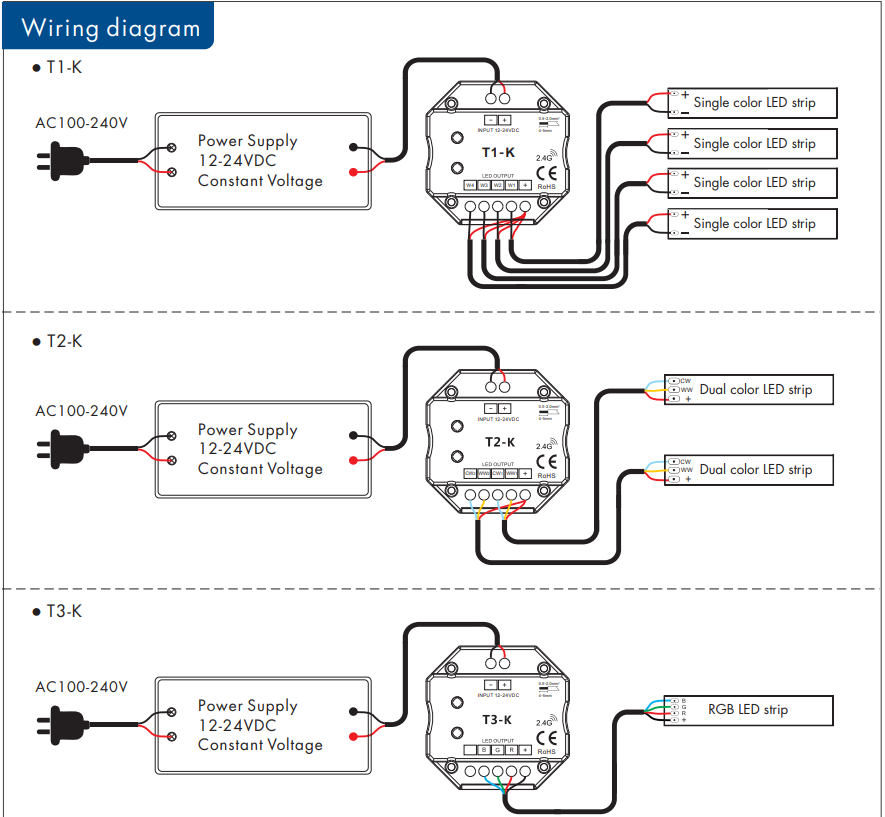

LED power supply voltage and power select :
● 12V lamp, Input 12V power supply, can load 0~144W,
● 24V lamp, Input 24V power supply, can load 0~288W, The power supply power must larger than load power 20%.
Match Remote Control (two-match ways)
The rotary panel controller can also match with the RF remote (optional).
End-user can choose the suitable match/delete ways. Two options are offered for selection:
Turn on light, turn off, immediately push the knob for 5s, then press on/off key (single-zone remote) or zone key (multiple zones remote) of the RF remote within 5s. The LED indicator fast flashes 3 times
means the match is successful.
Turn on light, turn off, immediately push the knob for 10s, delete all matched RF remote. The LED indicator fast flashes 6 times means all matched remotes were deleted.
Use Power Restart
Switch off the power, then switch on power again, immediately short press on/off key (single-zone remote) or zone key (multiple zones remote) 3 times on the remote. The light blinks 3 times means the match is successful.
Switch off the power, then switch on power again, immediately short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
