EXC2 100-240Vac Touch Panel 2 zones controller
Within the effective range, unlimited receivers can be connected in the same zone

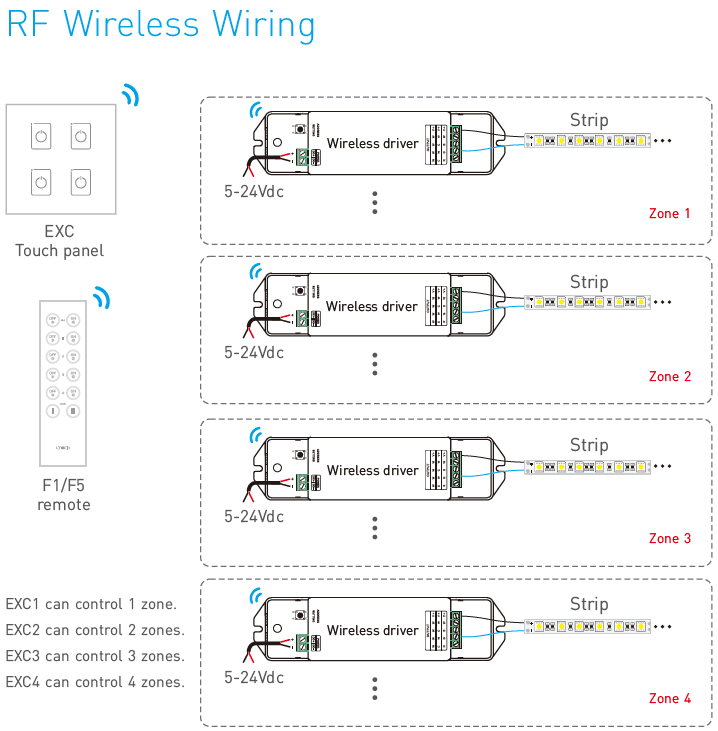

Each switch key works as an individual zone, workable with any matching zone of remotes.

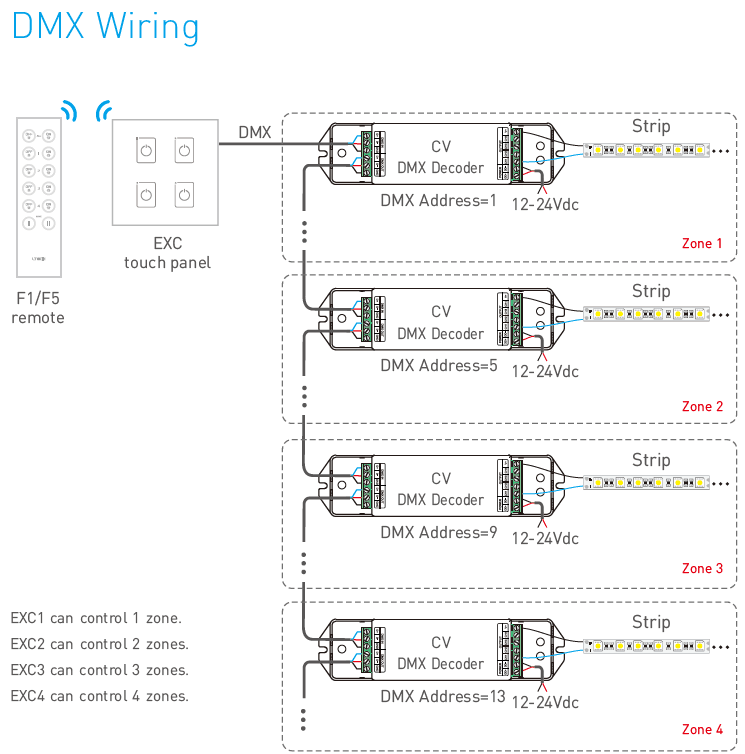

Support DMX512 signal output can work as DMX master controller to control DMX fixture.

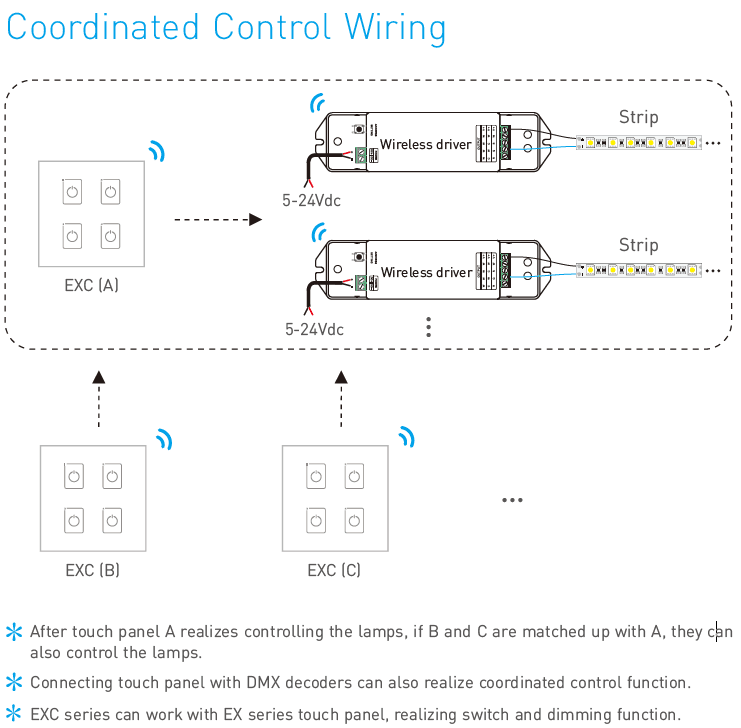

Support multi panels coordinated control wirelessly, no quantity limited.
Touch keys with chord and LED indicator

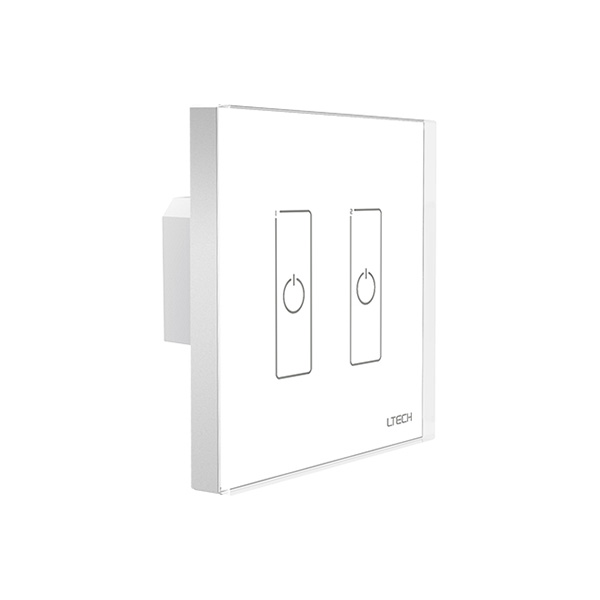

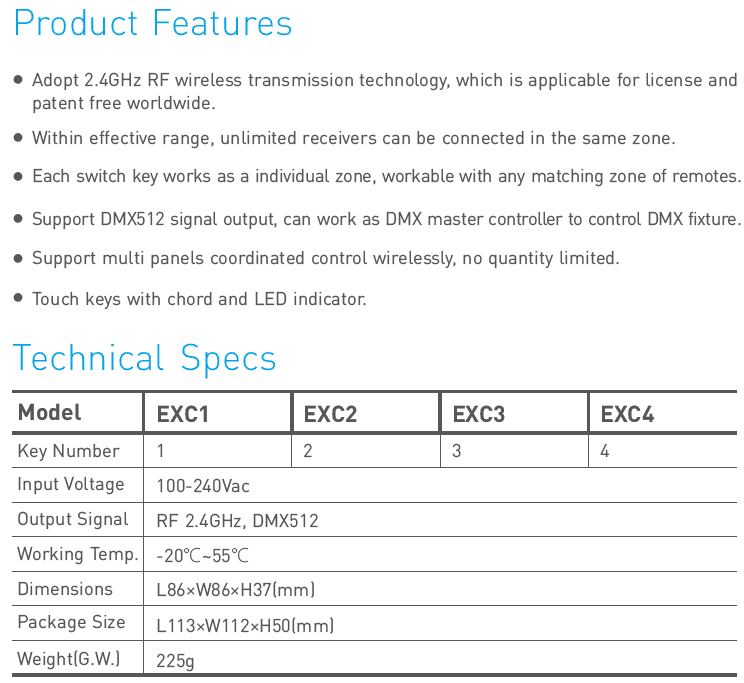

EXC2 Touch Panel (2 zones)
Input Voltage: 100-240Vac
Output Signal: RF 2.4GHz, DMX512
Control mode: Synchronous control
Working Temp.: -30℃～55℃
Package Size: L113×W112×H50(mm)
