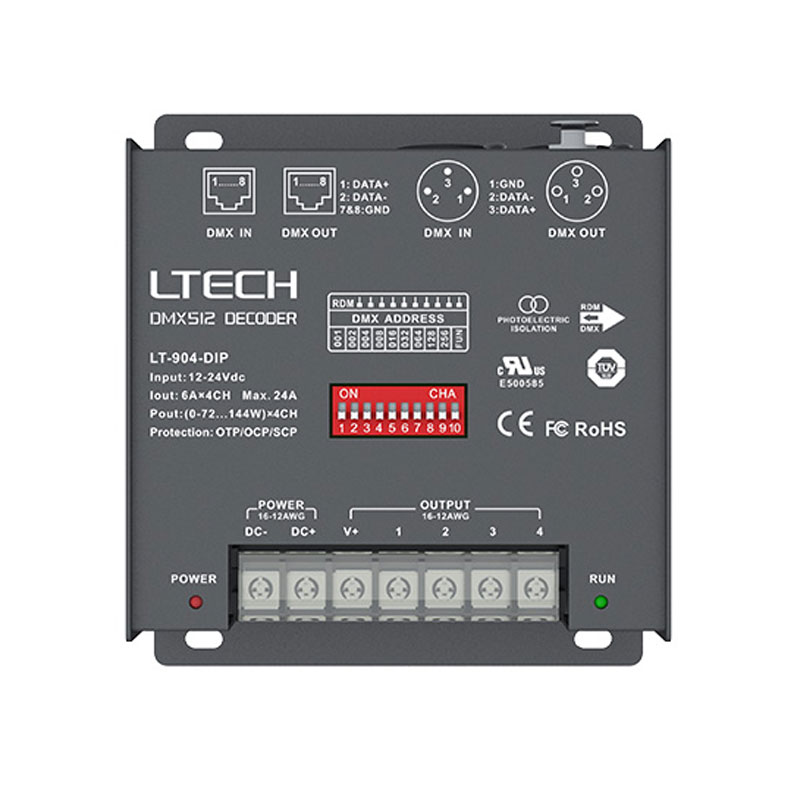

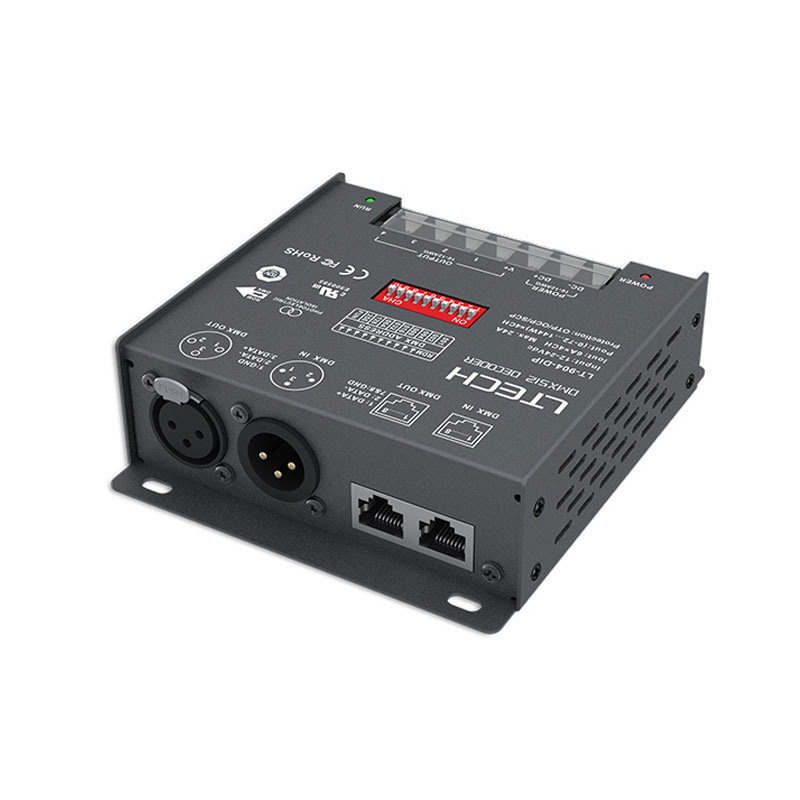

576W 4CH CV DMX Decoder LT-904-DIP
1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.

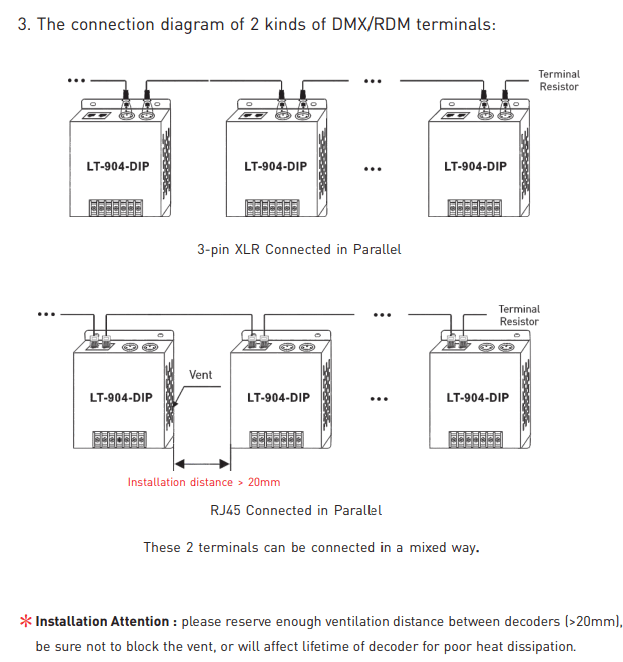

2. Support 2 kinds of DMX ports with signal isolation function: 3-pin XLR, RJ45.

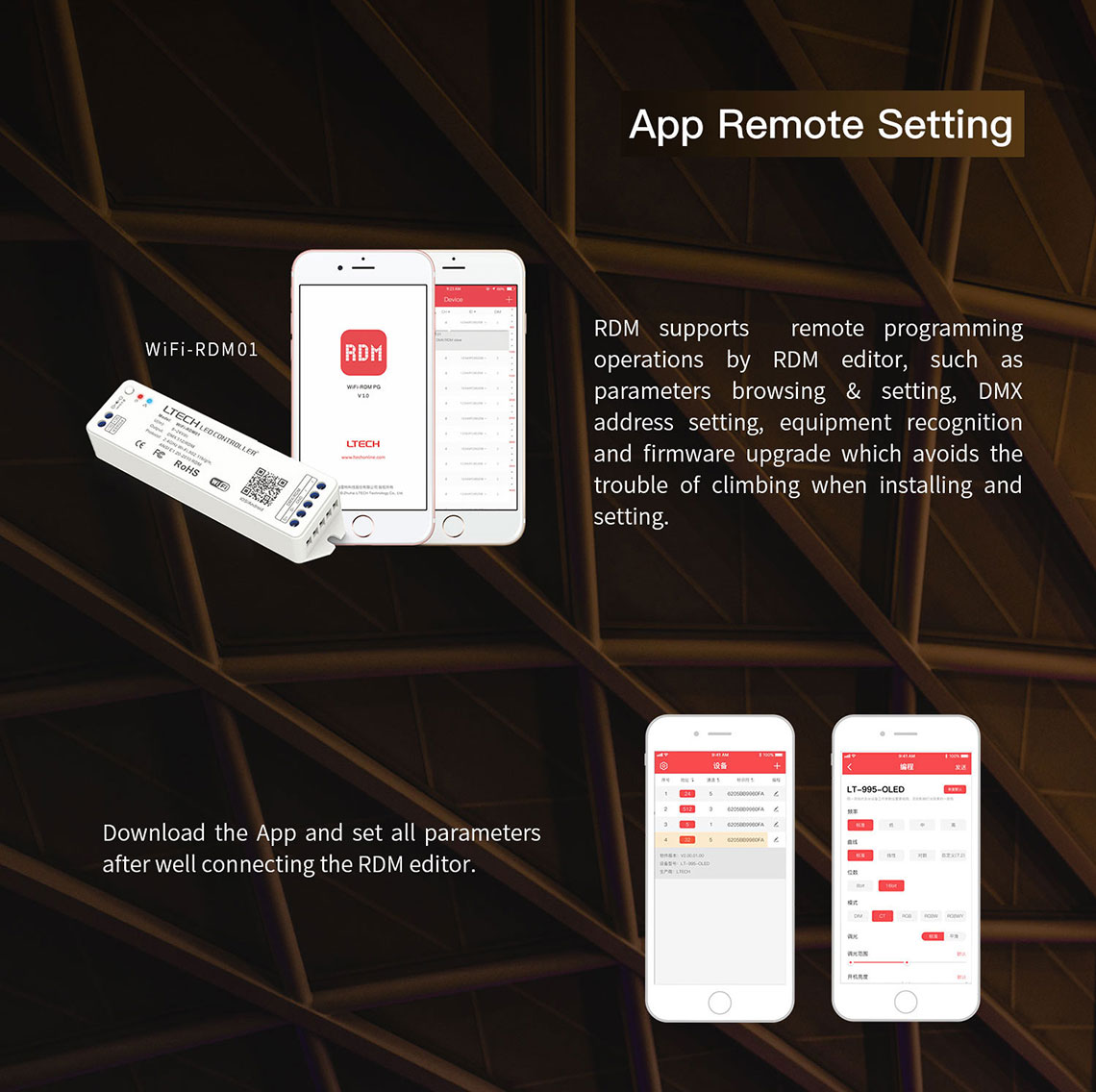

3. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
4. With shortcut protection and overload protection, as well as warning function when fault.
Input signal: DMX512/RDM
Input voltage: DC12V～DC24V
Max load current :6A x 4CH Max. 24A
Max output power: (0~72W...144W) x4CH Max.576W

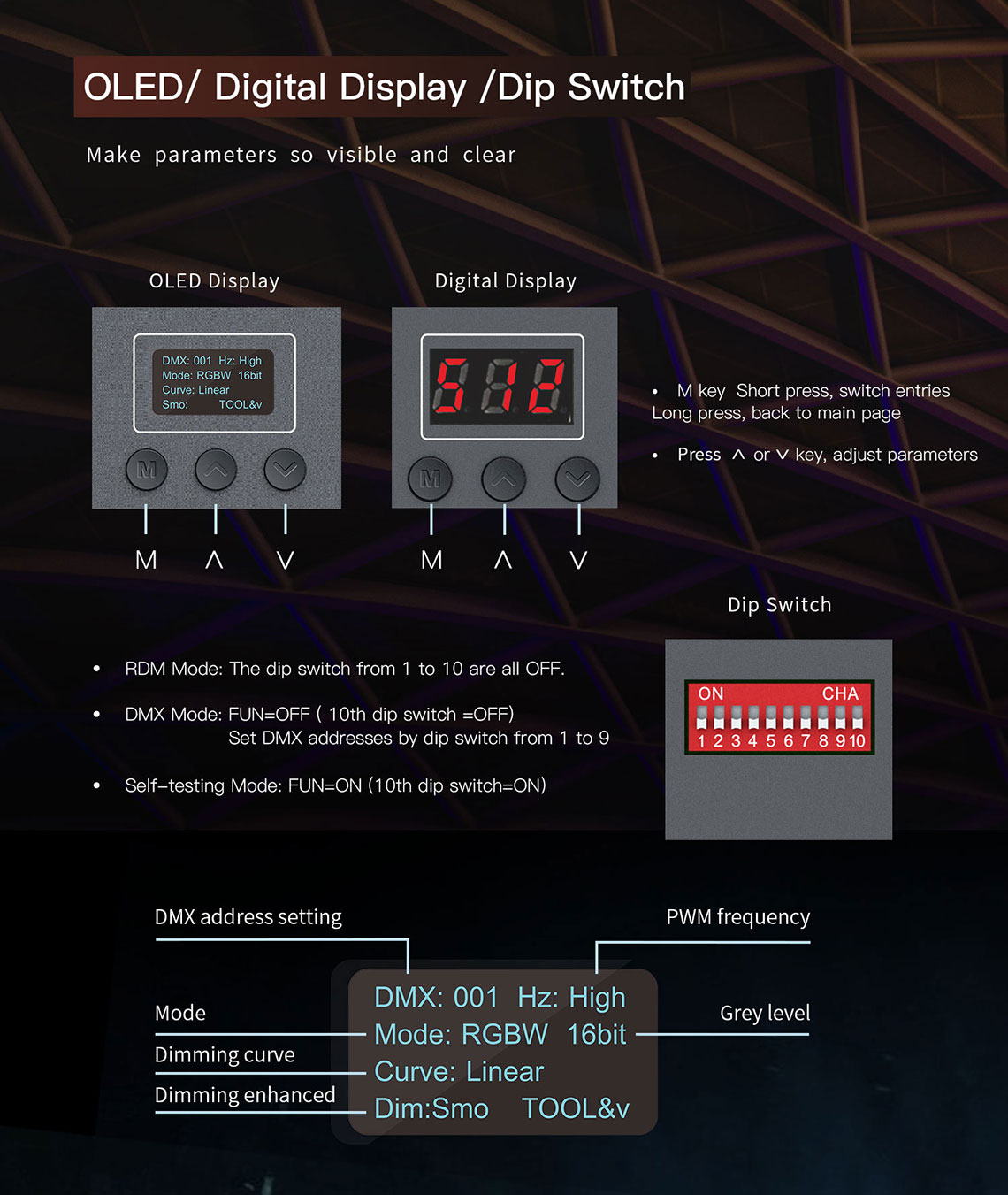

DMX512 socket: 3-pin XLR, RJ45
Working temperature: -30℃～65℃
Package Size: L127×W123×H41mm
Weight (G.W): 550g
