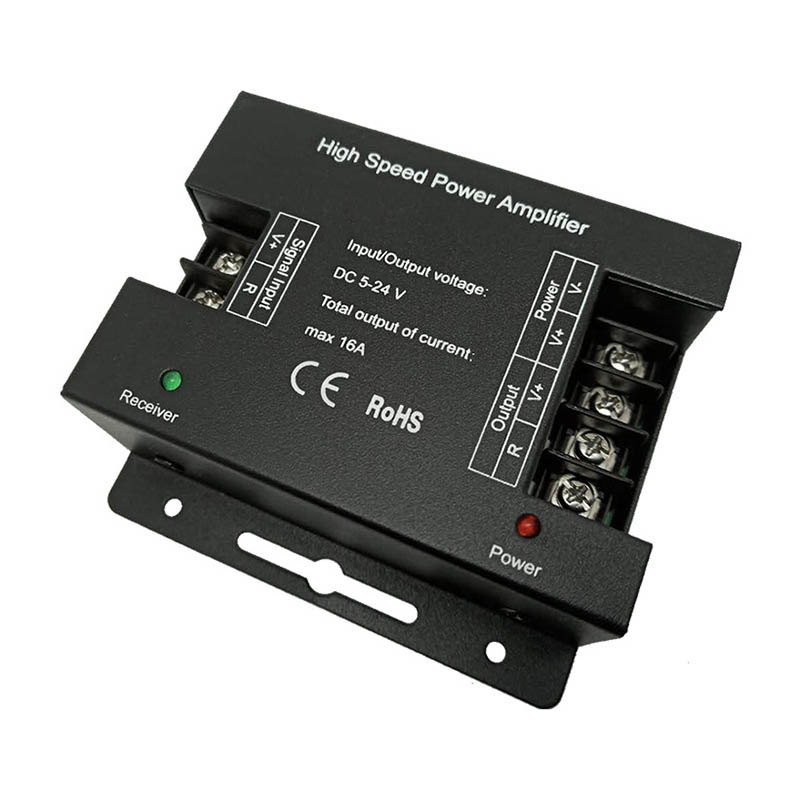

AP101 DC5-24V 1 Channel High-speed Power Amplifier, LED Power Amplifier
Standards and Certifications
● Working Temperature: -20-60℃
●Input voltage: DC 5-24V
●Static power consumption: <1W
● Output current: Max 16A
● Output: 1 Channel
● Maximum output power: 380W/24V
● Output connection method: Common anode
● Dimensions: 83mm*79mm*33mm
● Delay time: 20NS

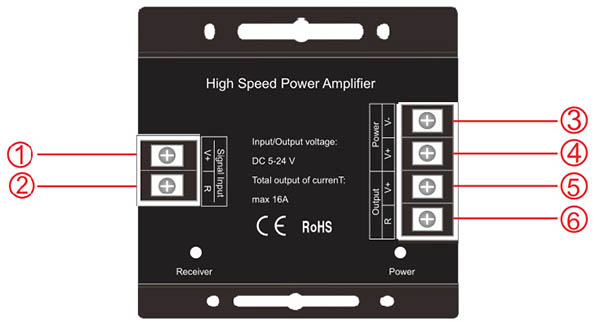

Signal control port:
"①": Common anode common pole; "②": R channel input signal negative pole.
Power supply and load output interface:
"③": negative pole of power supply input voltage; "④": positive pole of power supply input voltage;
"⑤": load output common anode common pole; "⑥": R road load output negative pole.
Indicator: "POWER": power indicator, red; "Receiver": dimming indicator, green, brightness changes with PWM
1. The power supply voltage of this product is DC5V-24V, and it should not be connected to other voltages;
2. The power cords must not be shorted to each other, causing a short circuit;

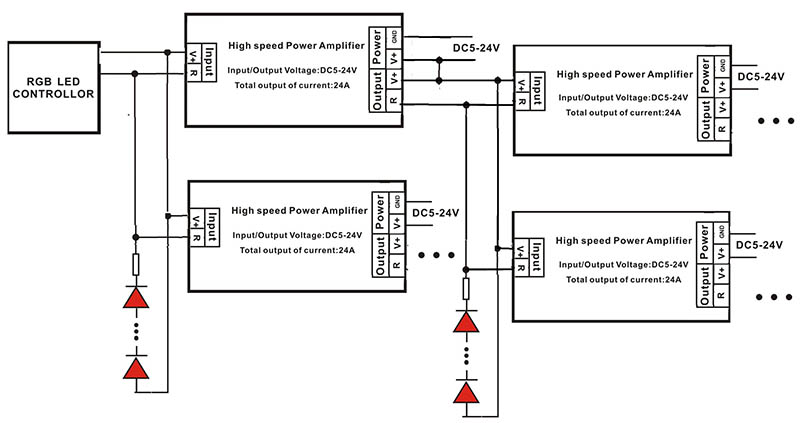

3. The lead wires should be correctly wired according to the line sequence provided in the wiring diagram.
