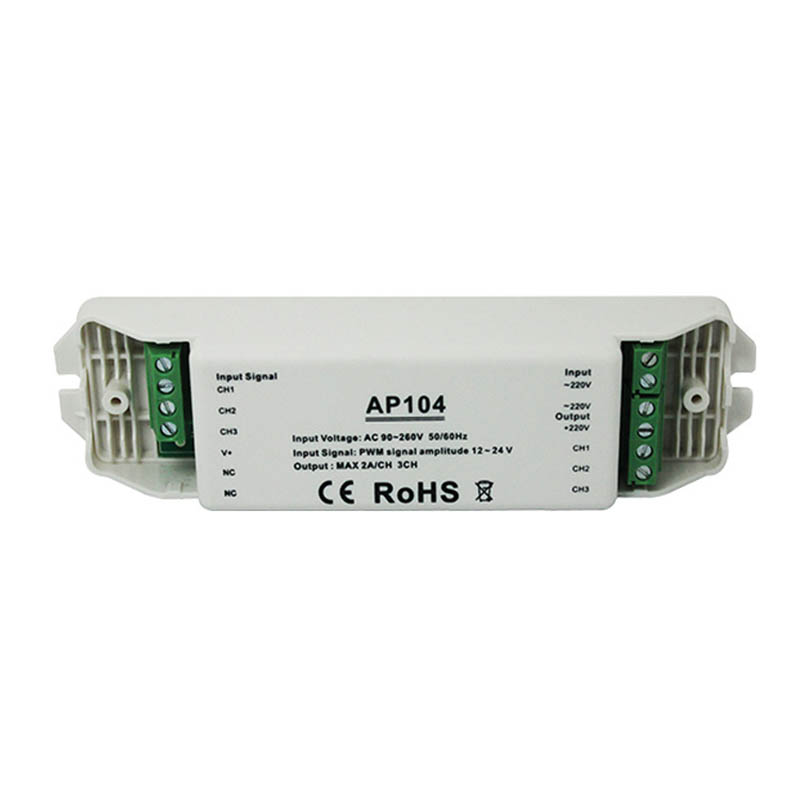

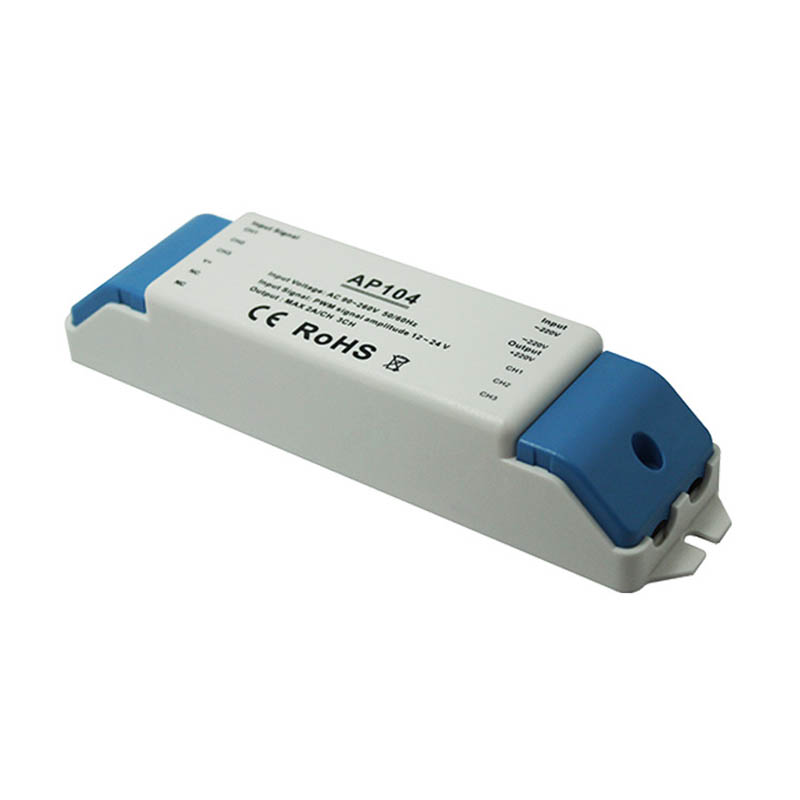

AP104 3 Channels Load Converter, High Voltage Controller
The load converter is a new controller newly developed by our company. This product is easy to install and can convert the controller of the low-voltage load into a high-voltage load. The upper-level controller (low-voltage controller) and the converter are isolated. The controller is a 3-way output, which can be controlled by a low-voltage controller to achieve the effect of the same high-voltage load and low-voltage load mode and synchronized control.
Working Temperature: -20-60℃
Power Supply Voltage: AC220V
Output: 3 Channels
Connection method: Common (DC220V)

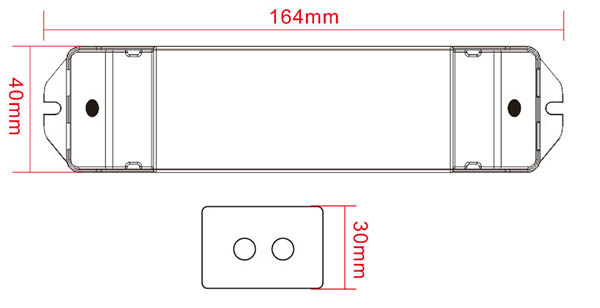

Dimensions: L164 * W40 * H30 mm
Packing Size: L170*W45*H45 mm
Net Weight: 120g
Gross Weight: 168g
Static Power Consumption: <1W
Output Current: <2A (each circuit)
Input Signal: PWM signal, amplitude 5-24V
1. 5/6 feet power input: city power 220V, 50hz;

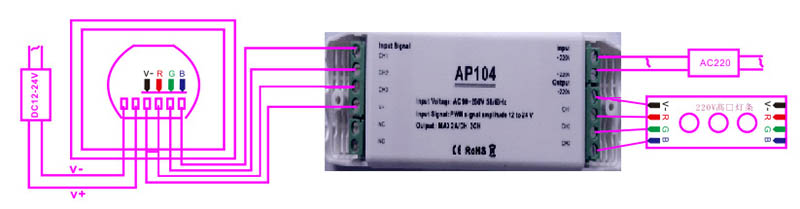

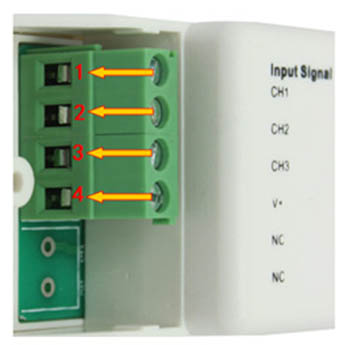

2. Pin 1/2/3/4 signal input: Pin 1/2/3 is a signal-, connected to the led-(R/G/B) output from the previous controller, and pin 4 is a signal +, connected to a V+ output by the level controller;

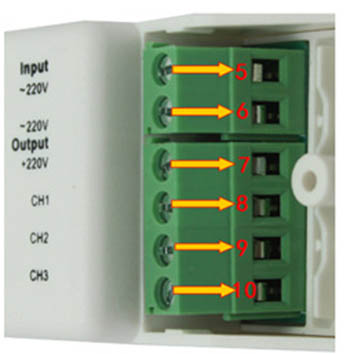

3. Pin 7/8/9/10 Load output: Pin 7 is the positive stage of the controller output (shared), and the negative pole of the 8/9/10-bit three-way output;
Connect the corresponding wires according to the interface instructions, taking care not to reverse the wires.
Connect the load cable first, and then the power cable; make sure there is no short circuit between the input and output cables before powering on.v
