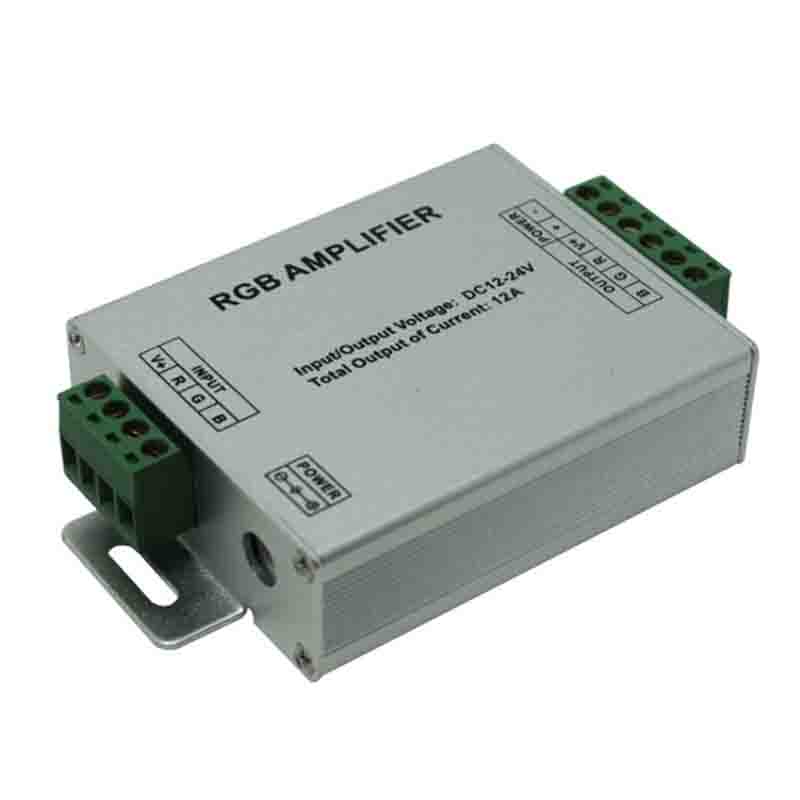

LN-ZJFJ-3CH-LV 3 Channels LED Repeater Amplifier, RGB Amplifier

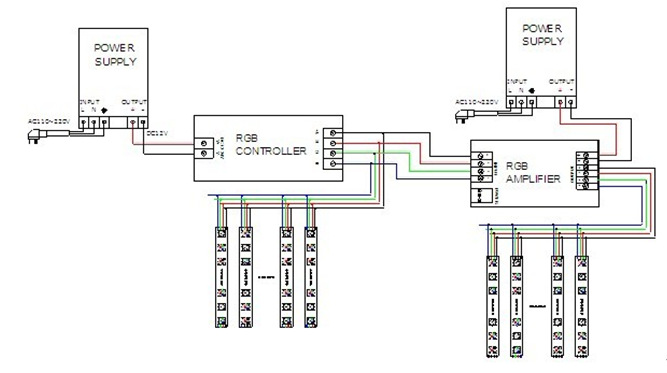

RGB amplifiers are suitable for all voltage-controlled LED controllers of our company. RGB can accept PWM (pulse width modulation). Each additional RGB amplifier can be connected with twice the number of LEDs. In theory, countless RGB amplifiers can be connected.
● Working Temperature: -20-60℃
●Power Supply Voltage: DC5V, 12-24V optional (specify the required voltage when ordering)
● Output: 3 Channels
● Connection Method: Common anode

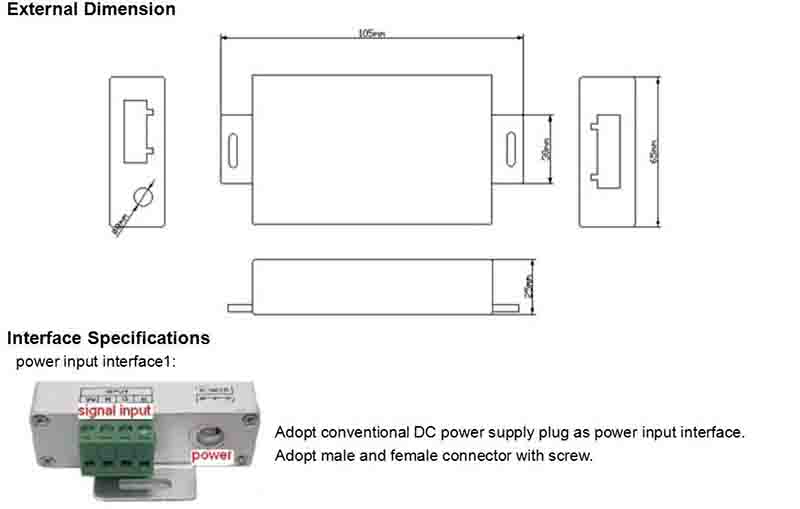

● Overall Size: L105ΧW65ΧH25mm
● Packing Size: L122ΧW85ΧH42mm
● Net Weight: 115g
● Gross Weight: 175g
● Static Power Consumption: <1W
● Output Current: <4A (each circuit)
● Output Power: 5V:<60W, 12V:<144W, 24V:<288W
