Corner Shape Aluminum LED Profile For 20mm Multi-Row Flexible LED Strips

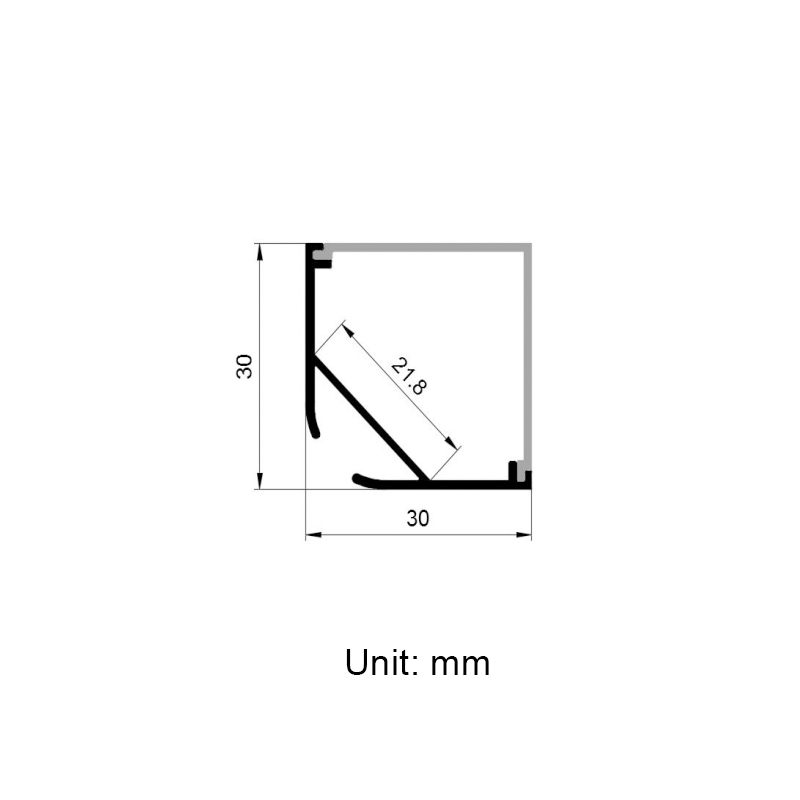

This corner aluminum profile with 20mm/0.79in inner width is a slim, low-profile for high to medium output flexible LED strip lights. LED Aluminum channels act as a heat sink to protect your high CRI LED strips from overheating. At the same time protect your led light strip from dust, moisture, UV radiation, and external damage.

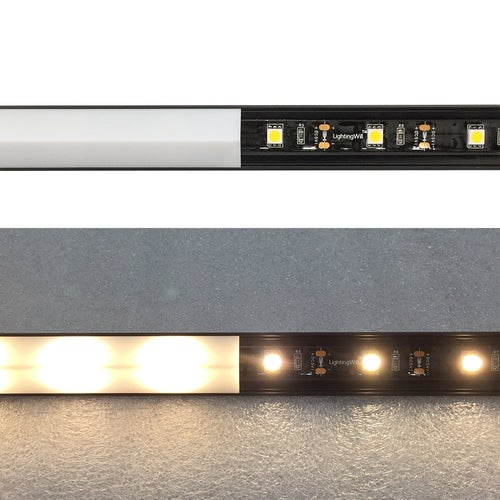

This aluminum led channel comes with PC/PMMA diffuser to smooth LED light output. To meet your fashion needs, you can choose the white or black aluminum channel. The led aluminum channel installation is easy, end-caps, mounting clips/stainless steel slings are included for surface mounted and suspended mount, which is a perfect choice for your LED residential and commercial linear lighting projects, furniture, cabinets, ceilings, etc. The led aluminum profiles support cutting, If you have requirements for the channel aluminum length, feel free to contact us to customize.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|

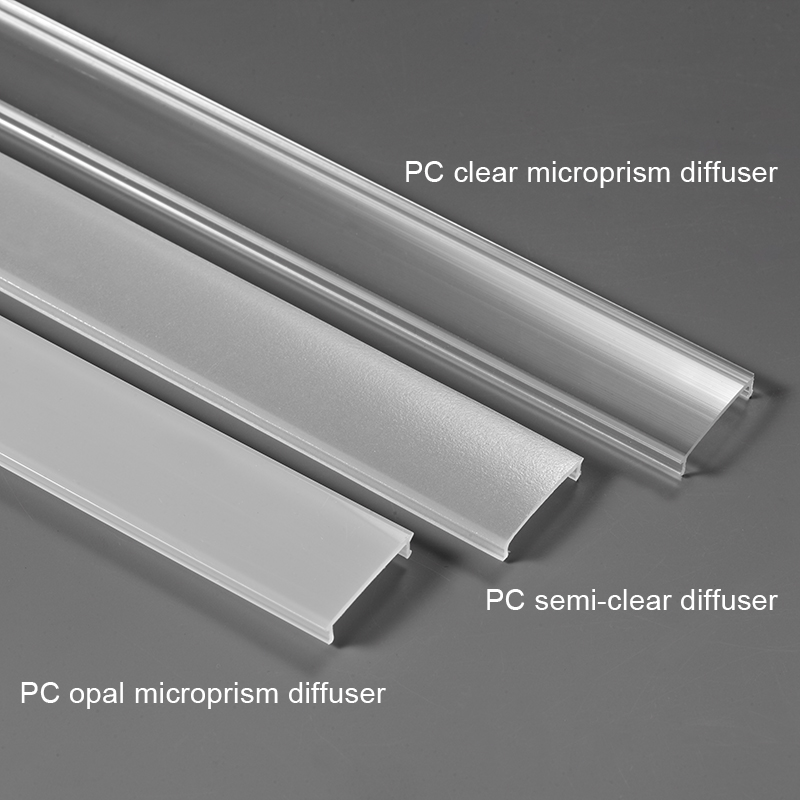

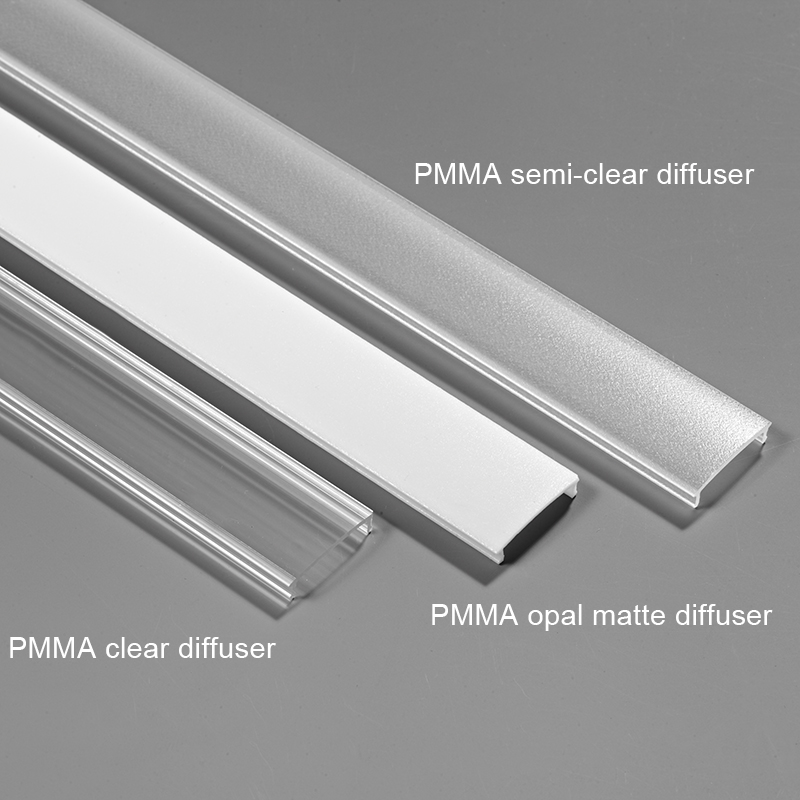

|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

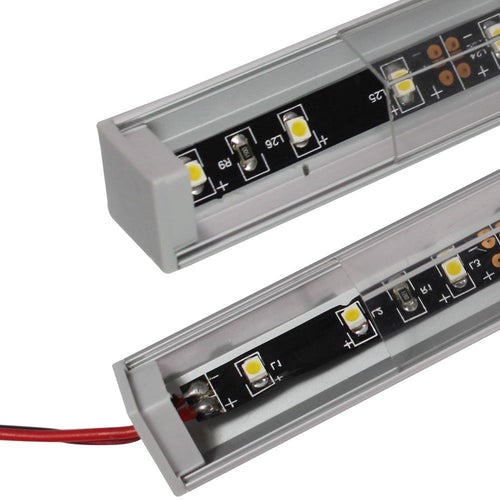

|Accessory||End cap without hole, end cap with wire hole, mounting clips/stainless steel slings|
|Apply to||2835/3528 flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
