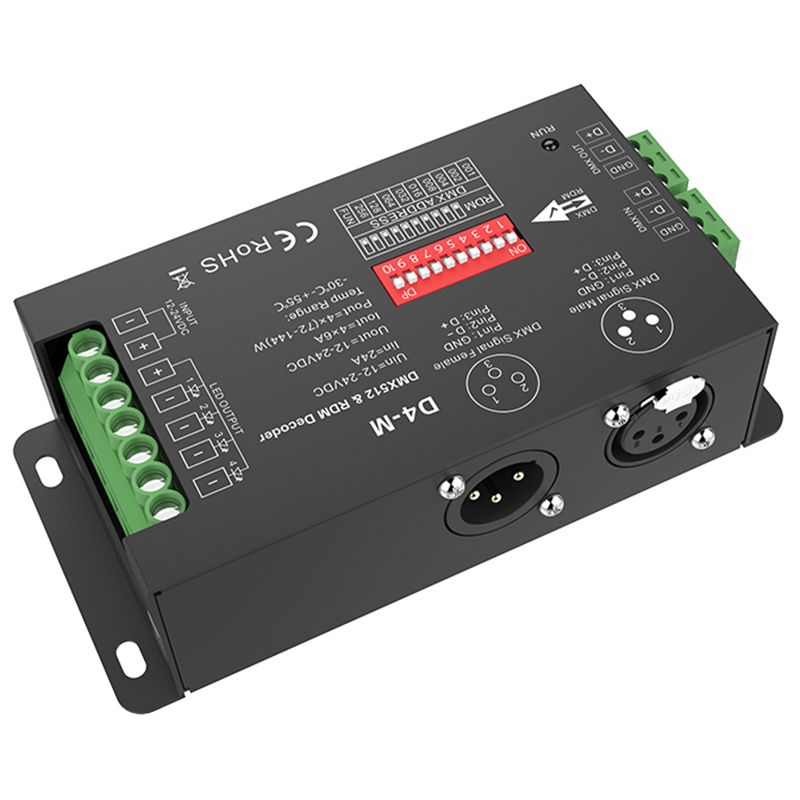

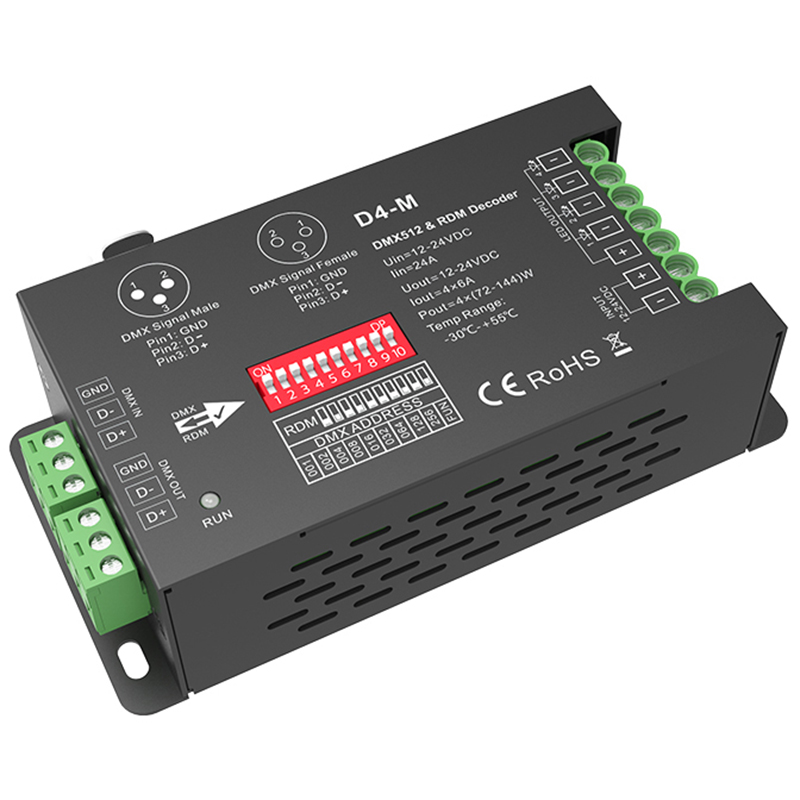

D4-M 4CH*6A DC12-24V Constant Voltage DMX & RDM Decoder
● Comply with the DMX512 standard protocols.

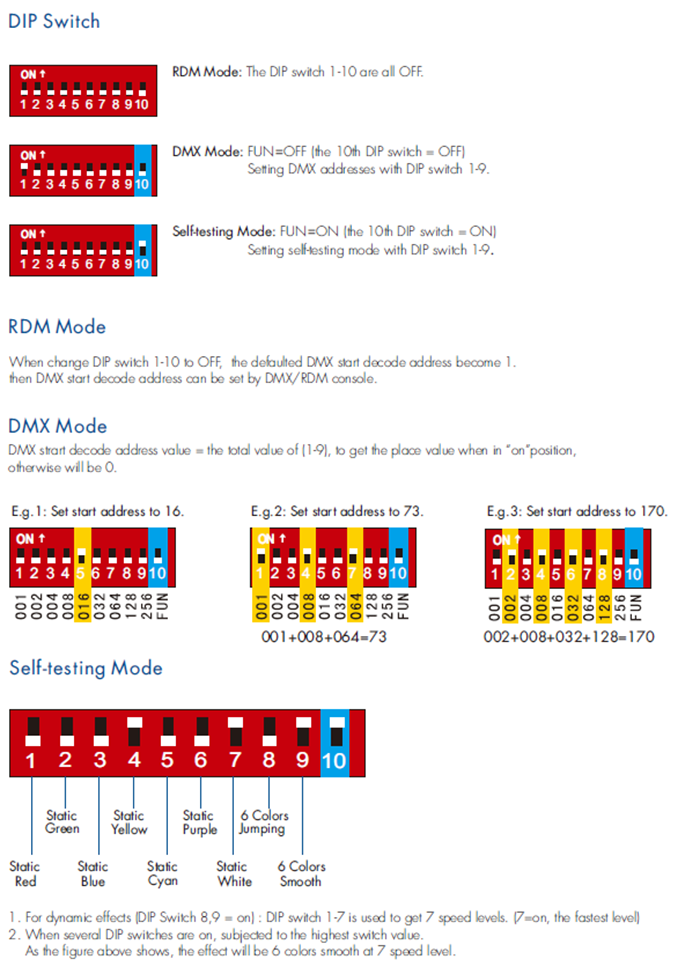

● Set DMX decode start address via DIP switch.
● RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.

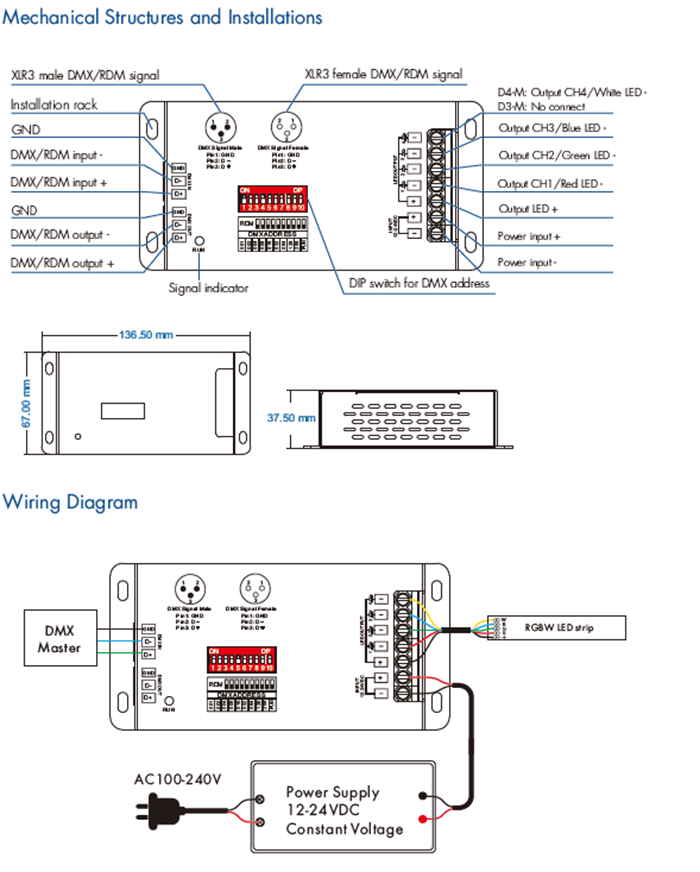

● 3-pin XLR and Green termimal DMX signal input & output.
Input Voltage: DC12-24V
Input Current: 24A
Output Voltage: 4x(12-24)VDC
Output Power: 4x (72-144)W
Output Type: constant voltage
Warranty and Protection
Warranty: 5 years
Protection: Reverse Polarity
Safety and EMC
EMC Standard (EMC): EN55032:2015,EN61000-3-2:2104, EN61000-3-2:2013, EN55024:2010/A1:2015
Safety Standard(LVD): EN61347-1:2015, EN61347-2-11:2015
