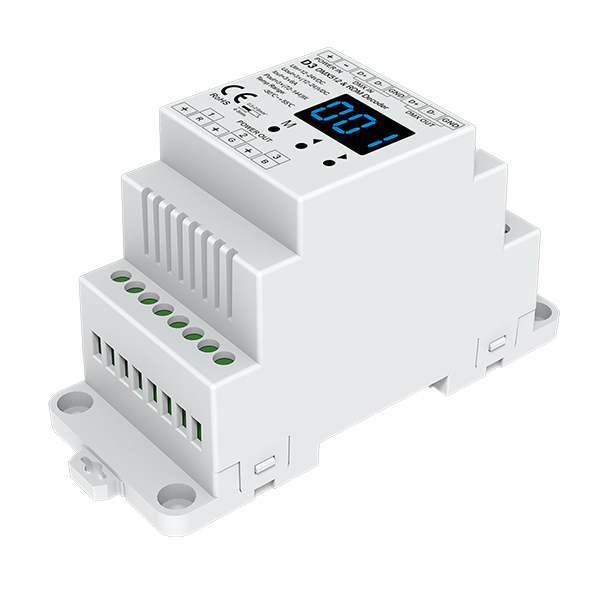

DC12-24V 3CH*6A 12-24VDC CV DMX Decoder D3
Comply with the DMX512 standard protocols.
Digital numeric display set DMX to decode start address by buttons.
RDM function can realize intercommunication between DMX master and decoder.
For example, DMX decoder address can be set by DMX master console.
PWM frequency 2000/500Hz selectable.
Logarithmic or linear dimming curve selectable.
Stand-alone RGB mode and 3 channel dimmer mode selectable,
which be controlled by buttons with built-in programs, instead of DMX signal.
Input and Output
Input voltage: 12-24VDC
Input current: 18.5A
Output voltage: 3 x (12-24)VDC
Output current: 3CH,6A/CH
Output power: 3 x (72-144)W
Output type: Constant voltage
Safety and EMC
EMC standard (EMC)EN61000-3-2:2014,
Safety standard(LVD):EN 61347-1:2015
Standards and Certifications
