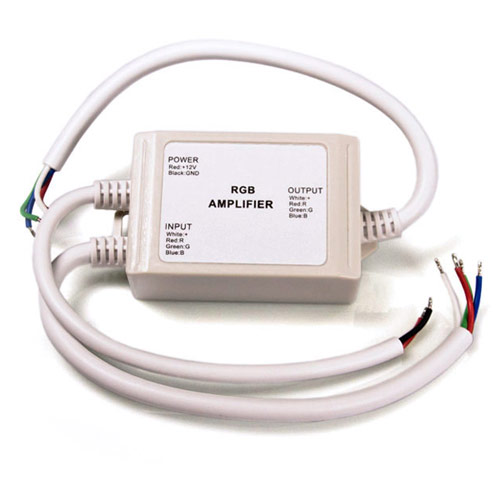

DC12/24V 4Ax3CH, ABS shell Waterproof IP67 LED RGB Data Signal Amplifier Used to Extend Color Change LED Strip Lights
RGB waterproof-Amplifier adjust to all the voltage-controlled LED controller of our company,it has waterproof function,RGB could accept PWM(Pulse Width Module) , Each one RGB amplifier can be added, the connecting number of LED will up to more than twice,countless RGB amplifiers could be connected in theory.
Standards and Certifications
Working temperature: -20-60 ℃
Power supply voltage: DC5V, 12-24V optional (order specify the required voltage)
Output: 3 channels
Connection mode: common anode
External dimensions: L95ΧW52ΧH30mm
Pckage size: L145ΧW95ΧH50mm
Net weight: 175g
Gross weight: 210g
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 5V: <60W, 12V: <144W, 24V: <288W
Direction for Use
According to the screen prompts of RGB amplifier on the panel,connect the in/out signal wire by order,ensure short circuit can not occur between wire.then connect power wire for RGB amplifier. The specific description about the matching use of RGB Amplifier and LED,please refer to the following: typical application.
