DC12-24V RGB Controler, max 4A/channel , Constant Voltage Amplifier for RGB LED Strip lights
  • DC12-24V RGB Controler, max 4A/channel , Constant Voltage Amplifier for RGB LED Strip lights
  • DC12-24V RGB Controler, max 4A/channel , Constant Voltage Amplifier for RGB LED Strip lights
  • DC12-24V RGB Controler, max 4A/channel , Constant Voltage Amplifier for RGB LED Strip lights

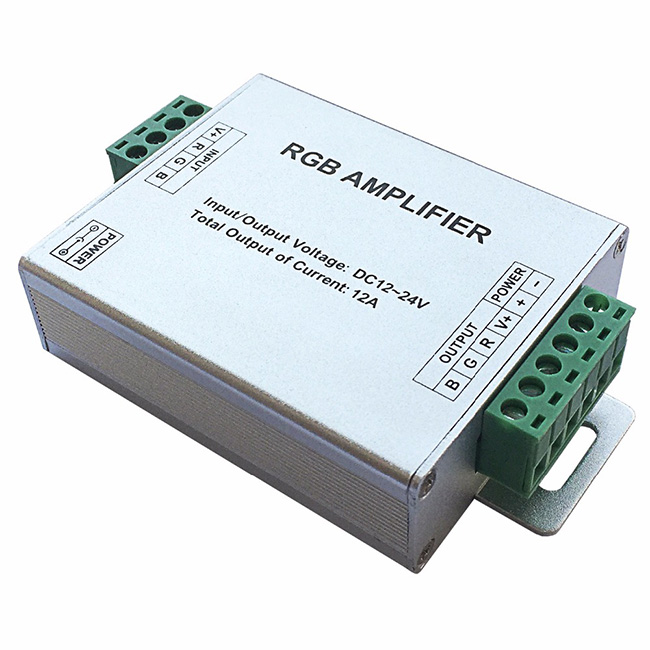

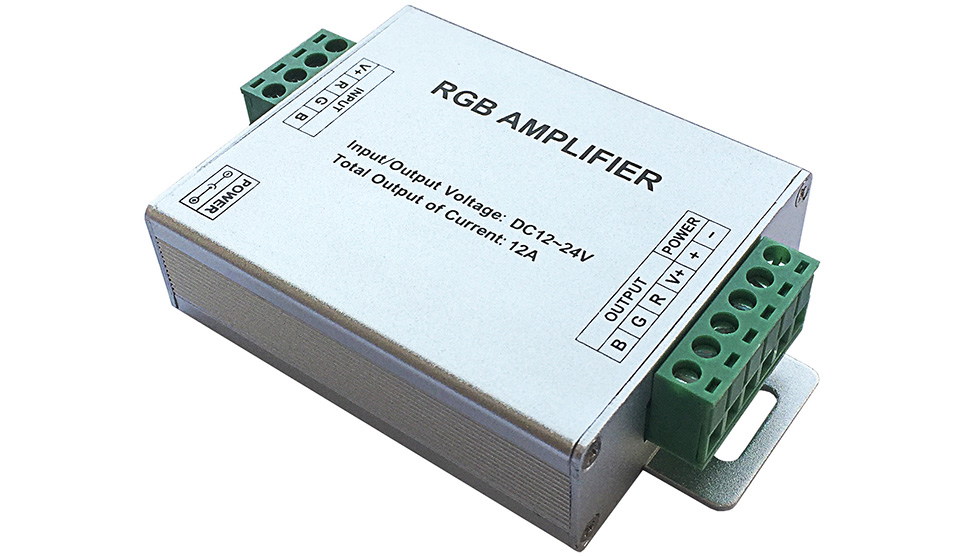

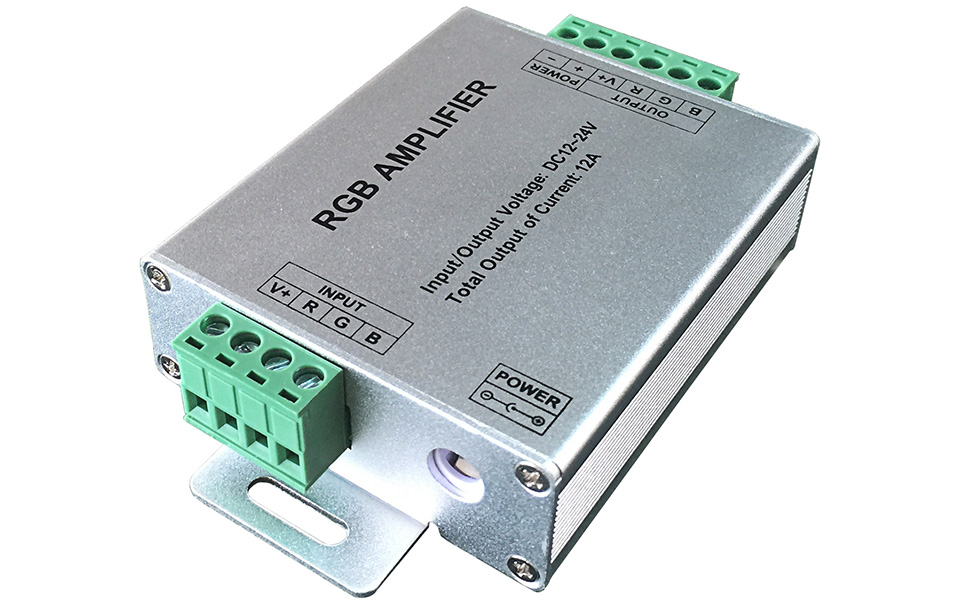

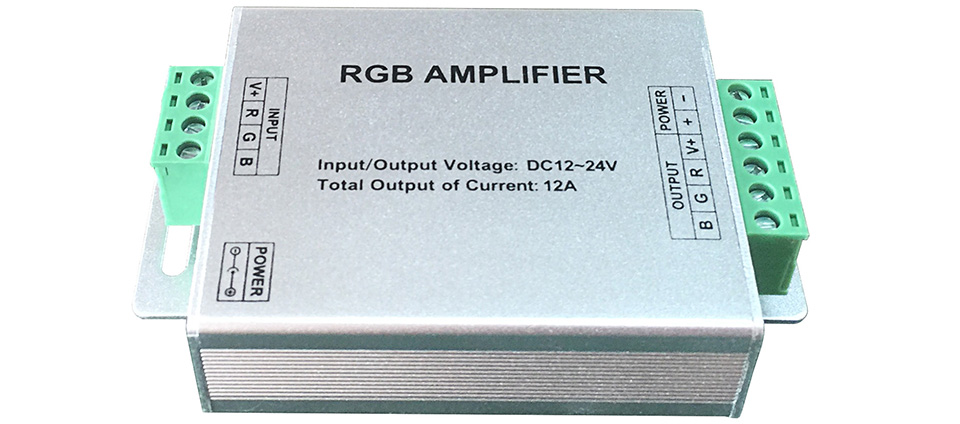

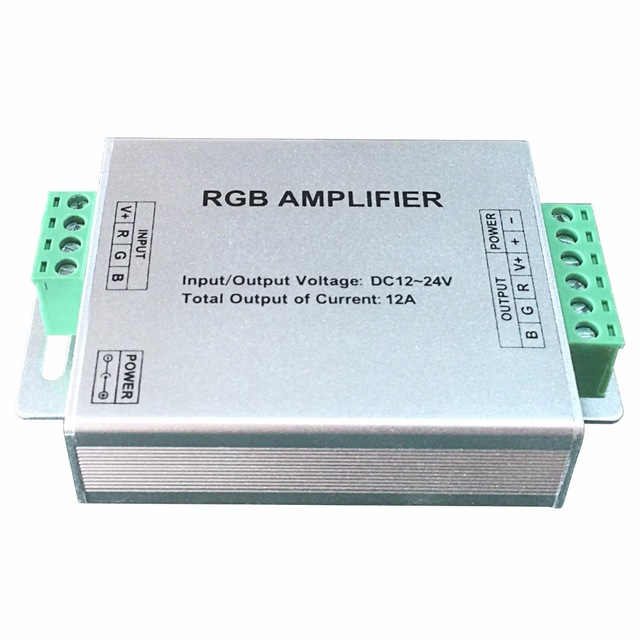

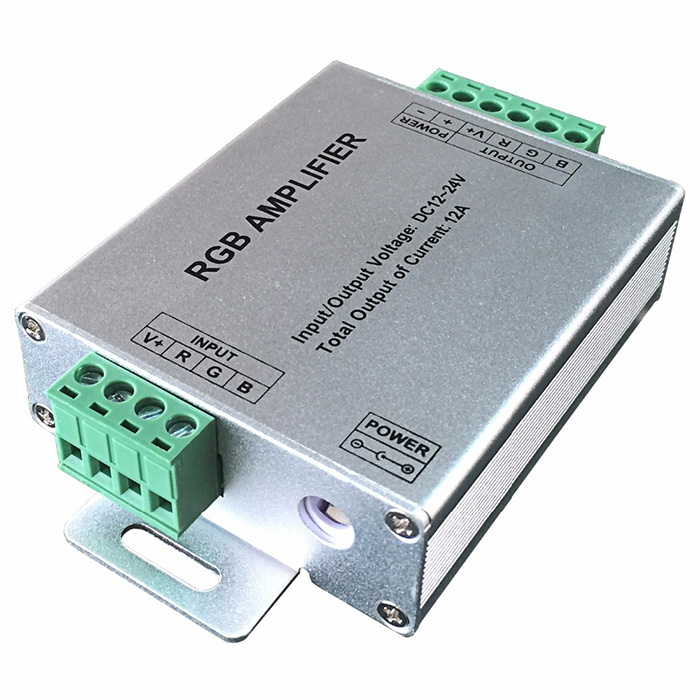

DC12-24V RGB Controler, max 4A/channel , Constant Voltage Amplifier for RGB LED Strip lights

Model: CONFULL-H801AM

$19.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Applied to:



Qty Discounts Off Price
1-4
$19.98
5-9
$18.98
10-19
$17.98
20+
$15.98
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Power Source:DC

    Warranty:1 year

    Features:RGB amplifier

    Applicable Lights:RGB lights

    Connection Mode:common anode

    Controled Method:amplifier

    Material:Aluminum shell

    Max. Load Power:144(12v)

    Certification:CE,CCC,RoHS

    Model Number:H801AM

    Wattage:144(12v)

    Voltage:12-24V

    Remote Distance:none



    Description:

     This RGB amplifier is suitable for all kinds of constant voltage led RGB controller.

     It can enlarge the PWM signal received from controller, and output the  signal to the load, then it can make the same effect with the controller.

     When add one additional  amplifier, controller  can connect and control twice more LED lights. Theoretically, one controller can connect thousands  of this RGB amplifier, and can make the same effect.

     Specifications:

     Model: H801AM

     Input voltage: DC12V,24V optional(please specify the ordered voltage)

     Output: 3 channels(RGB)

     Connection model: common anode

     External Dimension: L105 x W65 x H25mm

     Output current: maximum 4A/channel

     Output power: 12V<144W,24V<288W
