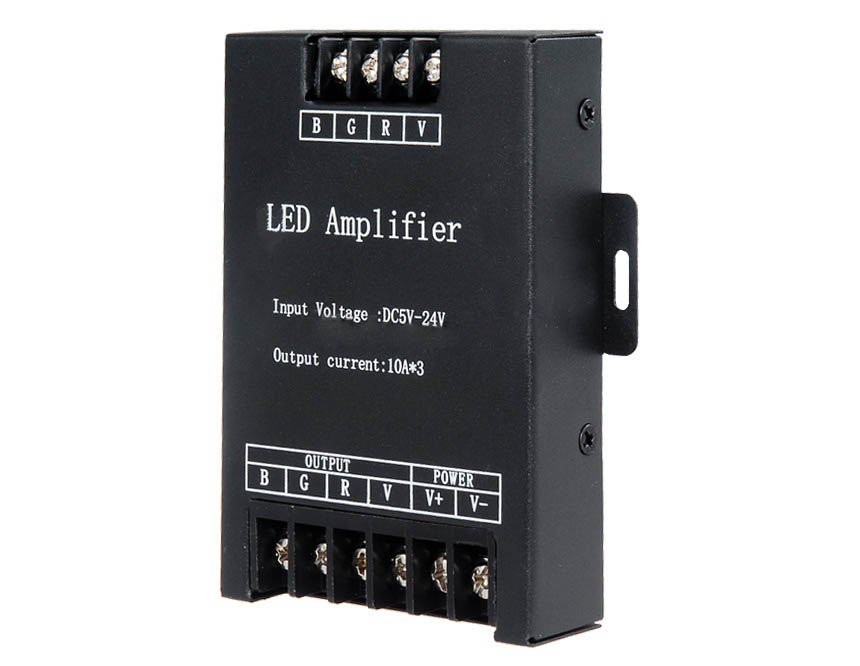

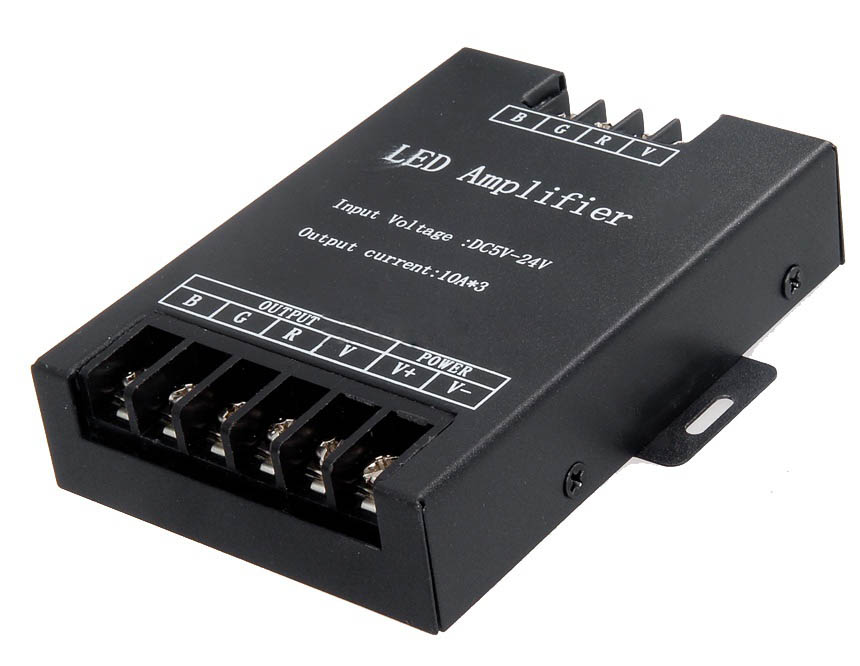

DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip
This RGB Signal Amplifier rated at 10A per channel. This unit allows an unlimited number of RGB products operating from either 5V 12v or 24v DC to be operated by one source of control and allows much longer runs of RGB flexible strip to be operated by one controller, removing the risk of the RGB strip being damaged by high current draw that can be present when operating long runs of RGB tape. This RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.
Standards and Certifications
Type: RGB Amplifier
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 years
Shell Type: Iron housing
Net Weight : 260g
Mode of Connection: common anode
Power Supply: DC5/12/24V
Input Type: RGB 3 channels
Output signal: CV PWM
Maximum Load Current: 10A X 3 channel (Max 30A)
Maximum Load Power: 5V/150W,12V/360W,24V/720W
Direction for Use

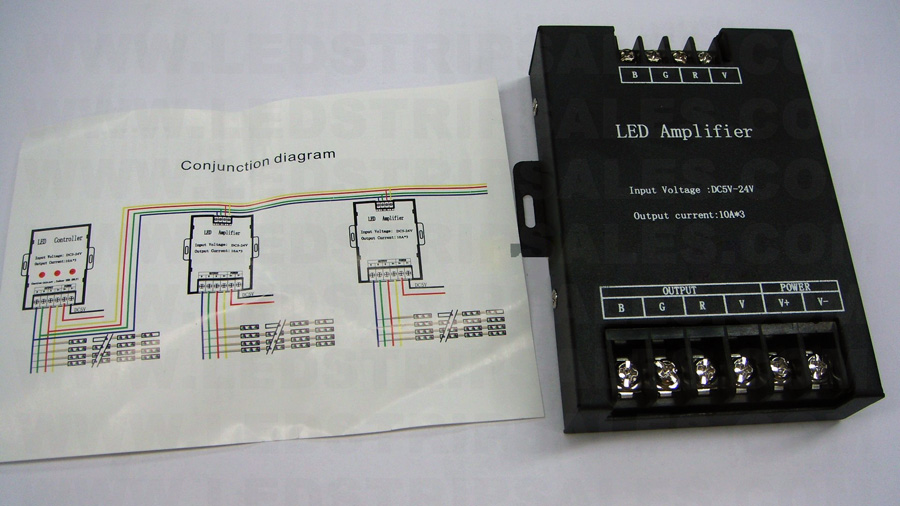

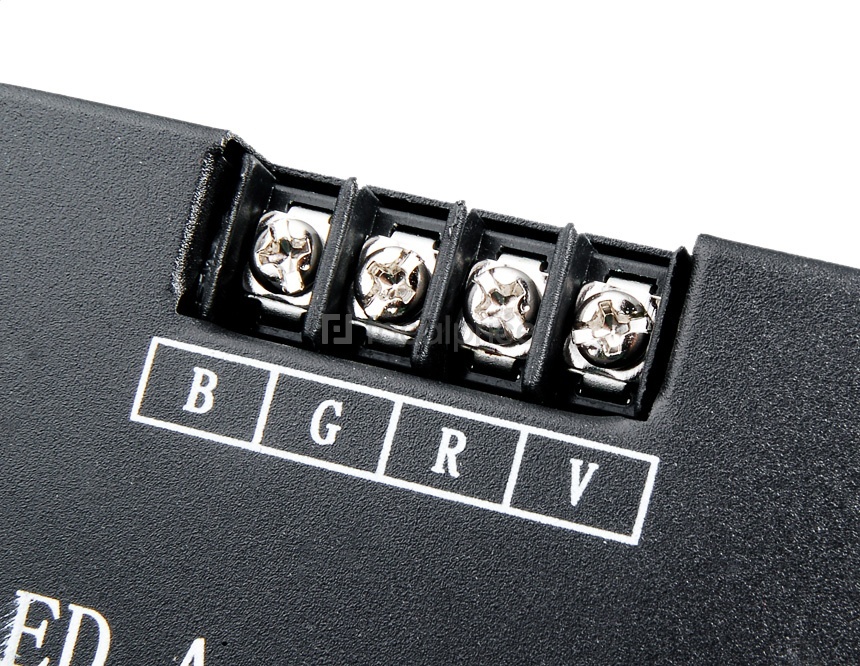

According to the silk-screen prompts on the panel of RGB amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier goes hand in hand with LED controller.

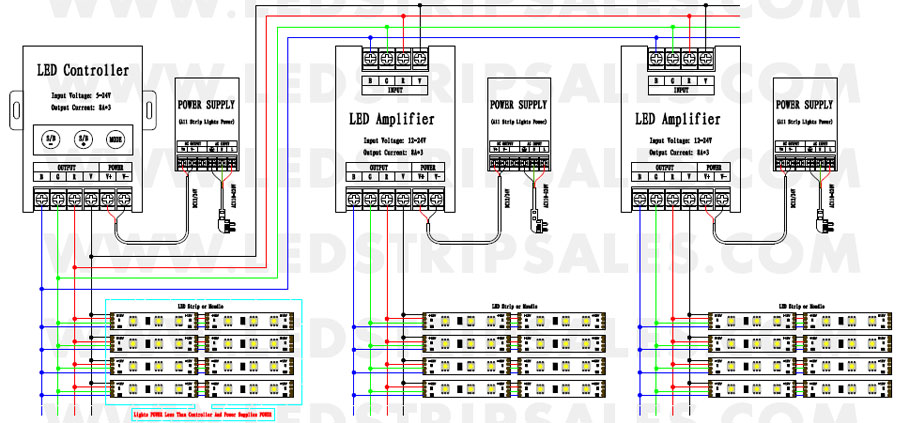

Mode of connection
1). All places where RGB light strips need to be extended when connecting.
2). All places where the quantity of RGB lights need to be increased.
3). All places where the color effects need to be changed as a whole in small scale.
1). Supply voltage of this product is 5~24 Volts DC, do not exceed.
2). Shorting output wires my cause damage to amplifier.
3). Always observe proper polarity when connecting power and load.
4). For indoor use only – this product is not waterproof or weatherproof.
