DC12-24V Max 12A 4A3CH, LED RGB Wireless RF Infrared Touch Remote Dynamic Color-Changing Modes Controller For RGB LED Light Strips
This is 6-key or touch infrared controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp. whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control. with two IR remote control optional.
Operating temperature: -20-60 ° C
Supply voltage: DC 5V-12V-24V
Output current: ≤4A(each channel)
Output power: 5V / 60W, 12V / 144W, 24V / 288W
External dimension: L89ΧW70ΧH28 mm
Material: ABS Plastic
Connection method: common anode
Control distance: 20 meters
IR Remote Control:
Power: AAA battery*2pcs (not including) for Touch controller / CR2025 battery
Fabrication processing: Multicolor printing & UV varnish
Functions: color changing and brightness dimming
Direction for use

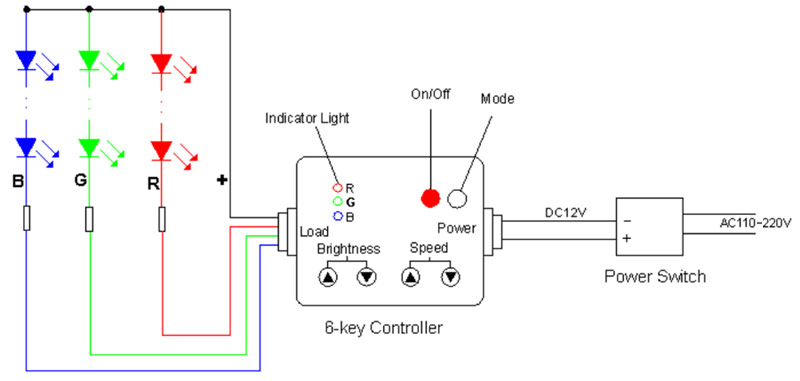

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

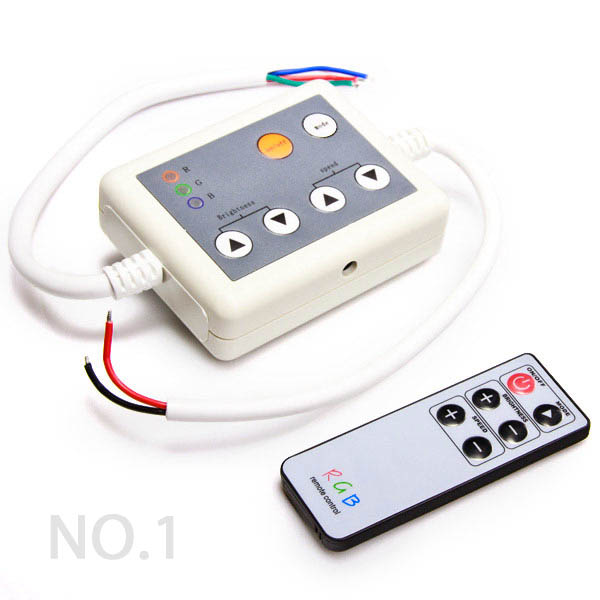

2. Adopt film button control,there are six buttons altogether, and every key-press function as follows:
on/off: In any state,you could turn on or turn off the output of controller;
mode: Pattern function key,you could choose the different changing mode;
brightness ▲: Brightness control of output signal,the brightness progression will add one when you press the button every time;
brightness ▼: The brightness progression will subtract one when you press the button every time;
speed ▲: The speed changing progression will add one when you press the button every time;
speed ▼: The speed changing progression will subtract one when you press the button every time.
3. Standard functional changes have been listed as follows:
1 Static red Color is adjustable,Speed is unadjustable.
2 Static blue
3 Static purple
4 Static green
5 Static yellow
6 Static cyan
7 Static white Color is adjustable,Speed is unadjustable.
8 Three color jumpy changing Color is adjustable, Speed is adjustable.
9 Seven color jumpy changing
10 Three color gradual changing Speed is adjustable, Color is unadjustable.
11 Seven color gradual changing 6 Static cyan

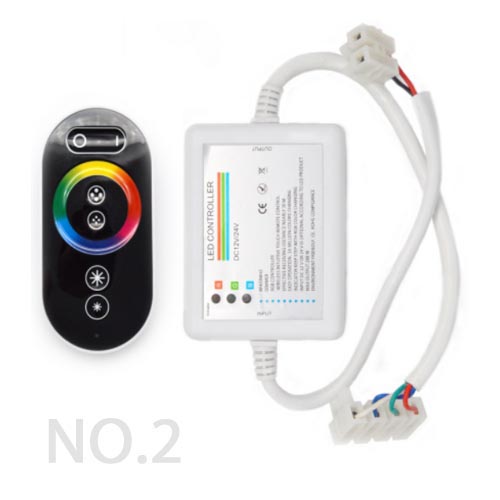

IR Touch Remote

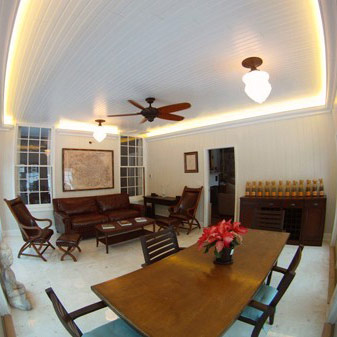

Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications
1 x 12a RGB LED Remote Controller
1 x RF Touch Remote Control
