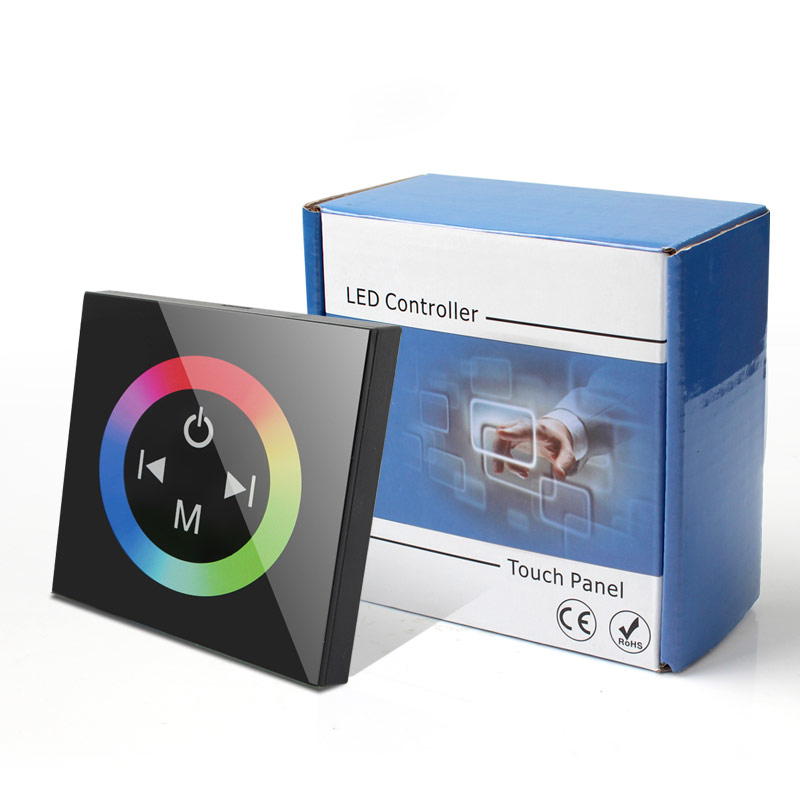

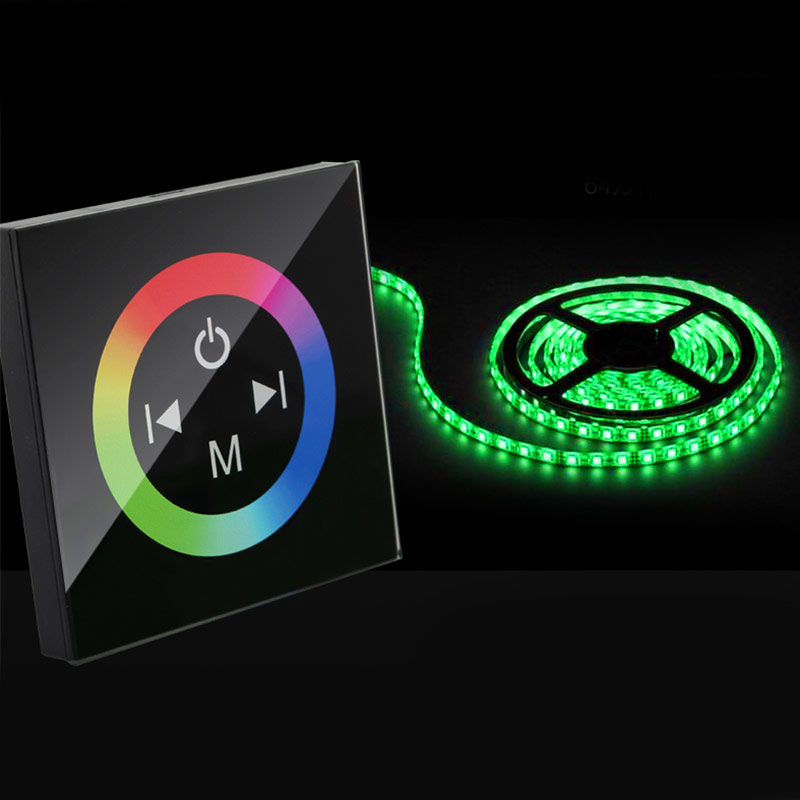

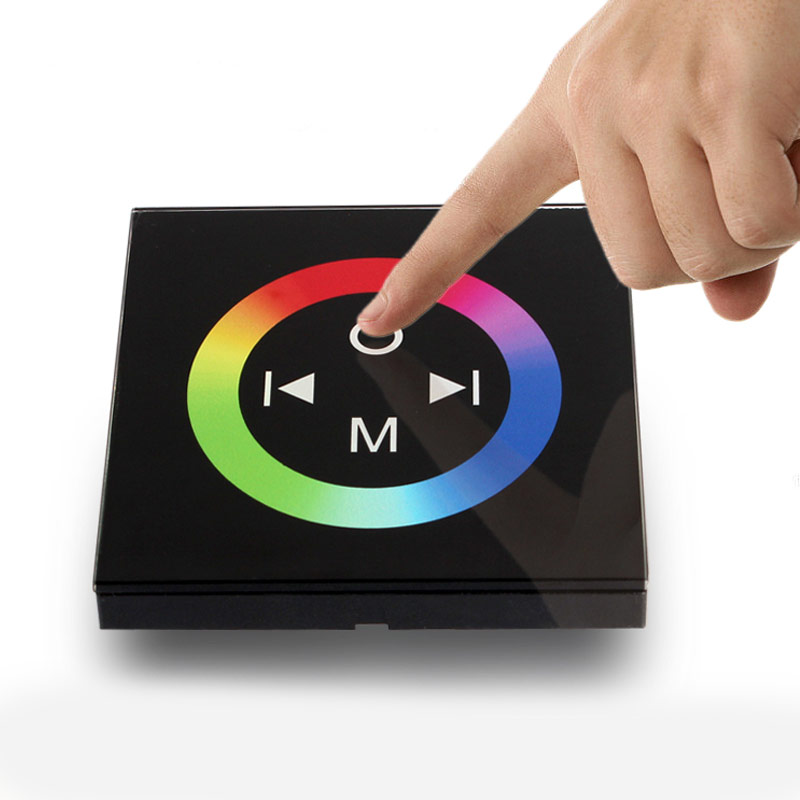

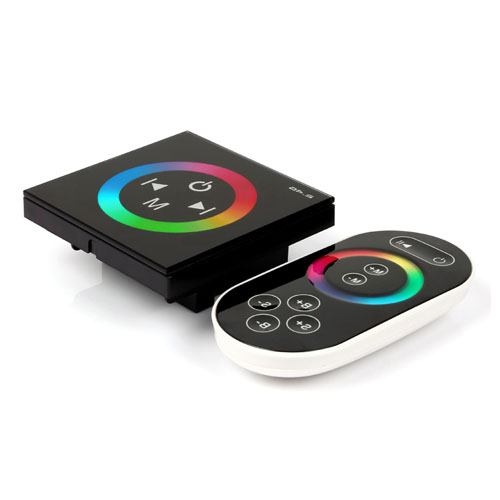

DC12/24V Max 12A 4A3CH, Wall Install Series Glass panel RGB Controller With RF Touch Remote For RGB Led Strips
Universal Red/Green/Blue (RGB) LED dimmer can dim any 12/24VDC RGB LED products from 0 to 100 percent using Pulse Width Modulation (PWM) circuits. it can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. Maximum Load is 3 Amps per channel (9 Amps total) , has screw terminals for power in and out connections.
Working temperature: -20〜60°C
Supply voltage: DC12/24V
Output: 3 channel
Funtion : can achieve stepless dimming
Max load current : 3A each color 9A Max
Static power consumption: < 1 Watt
Output Power: 12V/108 Watts 24V/216 Watts

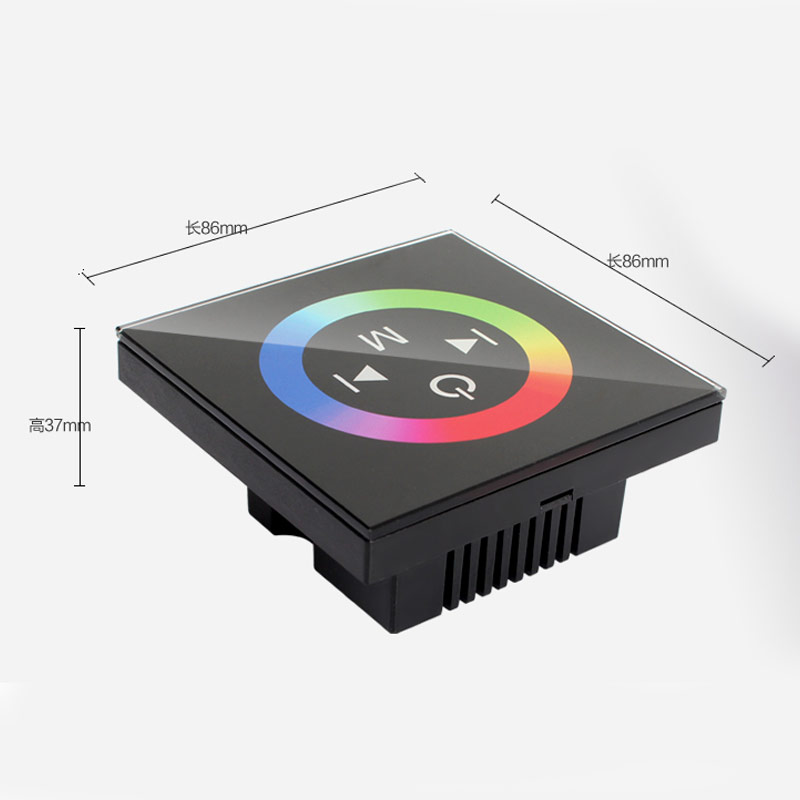

Product size: (L)130 Χ (W)40 Χ (H)52 mm
Net weight: 95 g
Gross weight: 175 g
Function: Dim 3 channels RGB LED product from 0~100% using PWM

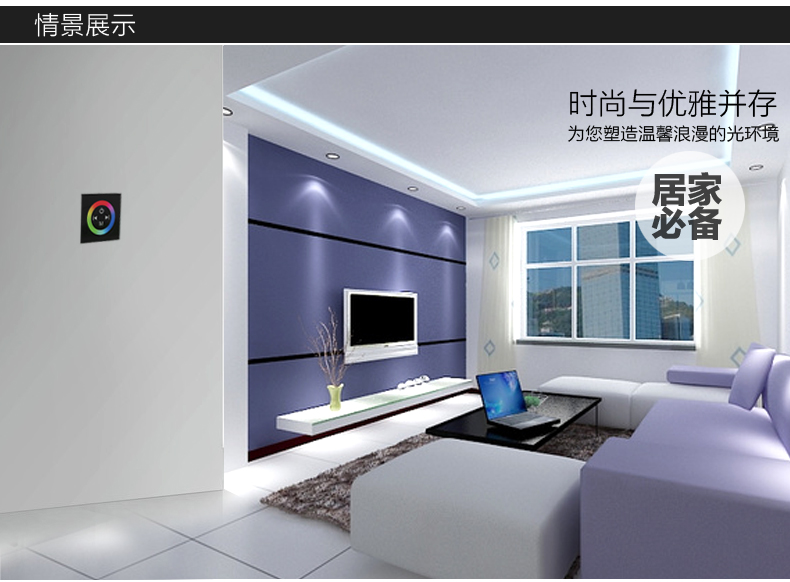

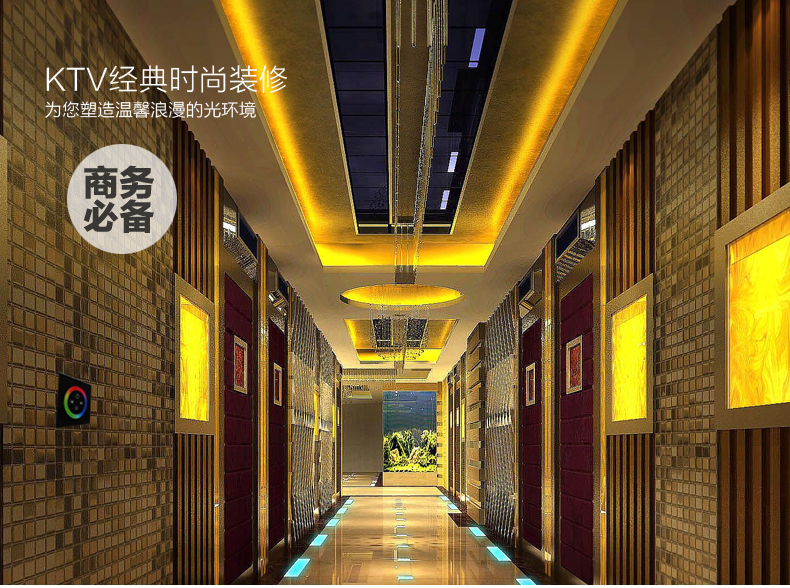

Interior Decoration: Club, bar, corridor, room, hotel, museum, christmas, holiday etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.

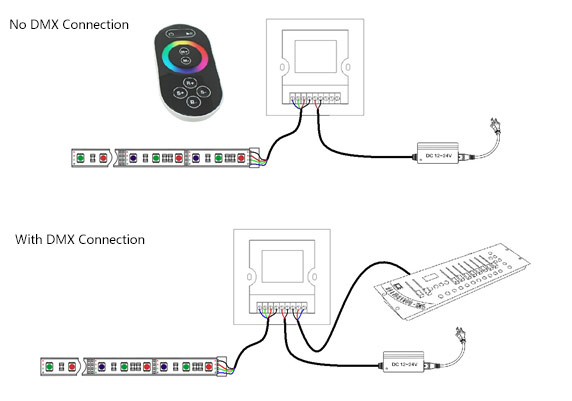

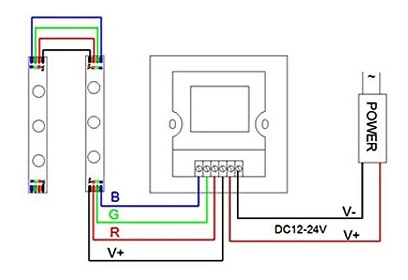

Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
1 X RGB Controller
1 X User Manual
