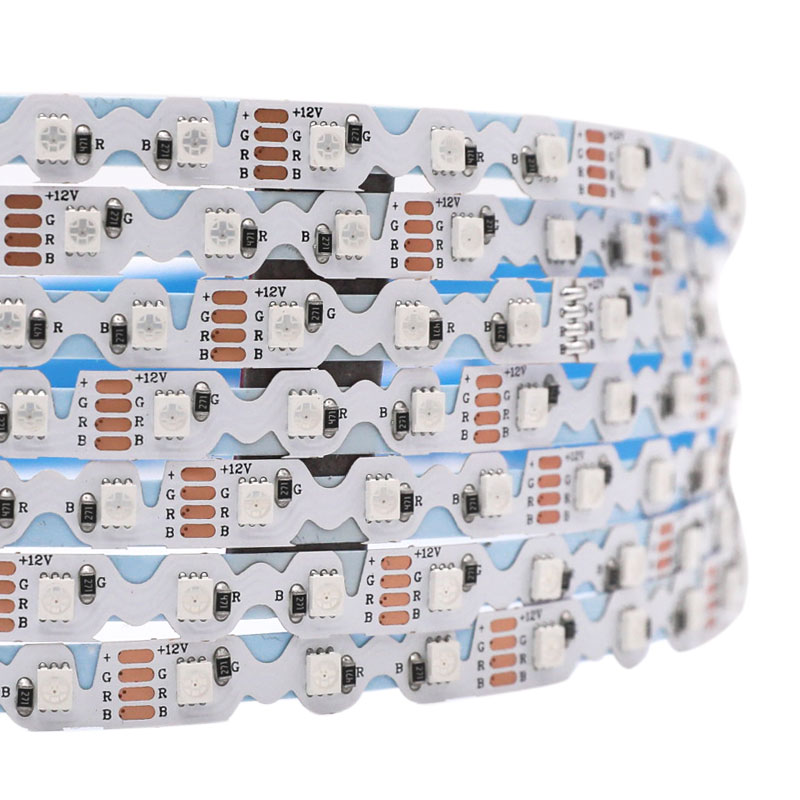

Compared with ordinary light strips, S-shaped bendable led strip has stronger plasticity and decorative properties, so it is more suitable for some occasions that require special shapes and artistic effects such as channel letter signage lighting.
The herringbone/zig-zag design of this RGB strip is one of its biggest highlights. It can be freely deformed and bent according to actual needs to create unique, beautiful, and artistic lighting effects, which can meet more lighting needs and creative designs.
This S-type RGB strip with IP20 rating, is not waterproof and needs attention to prevent moisture and avoid contact with liquid etc.

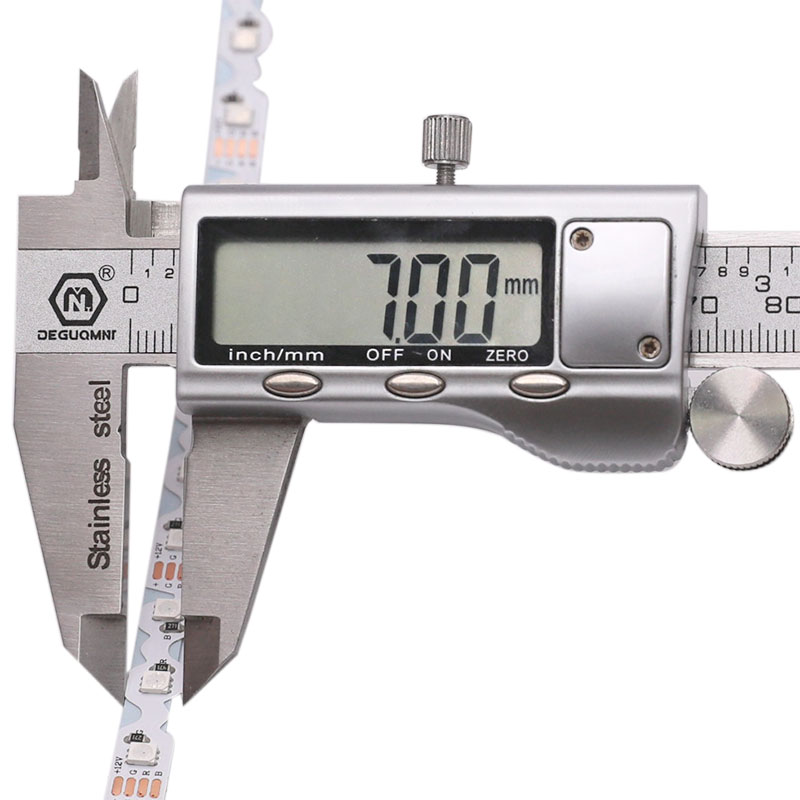

7mm narrow PCB width
90 lights per meter, 27 lights per foot, higher density
SMD2835 RGB LED chips, small size and easy to layout

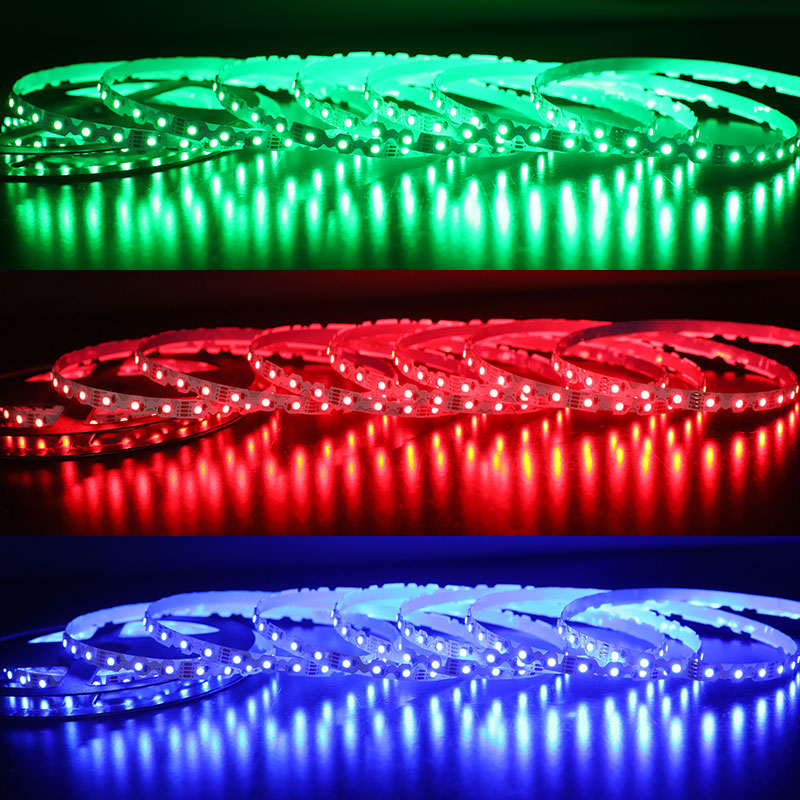

Color changing RGB lights, create an attractive lighting decoration
Zig-zag design, flexible and bendable, easily bend and fold during installation

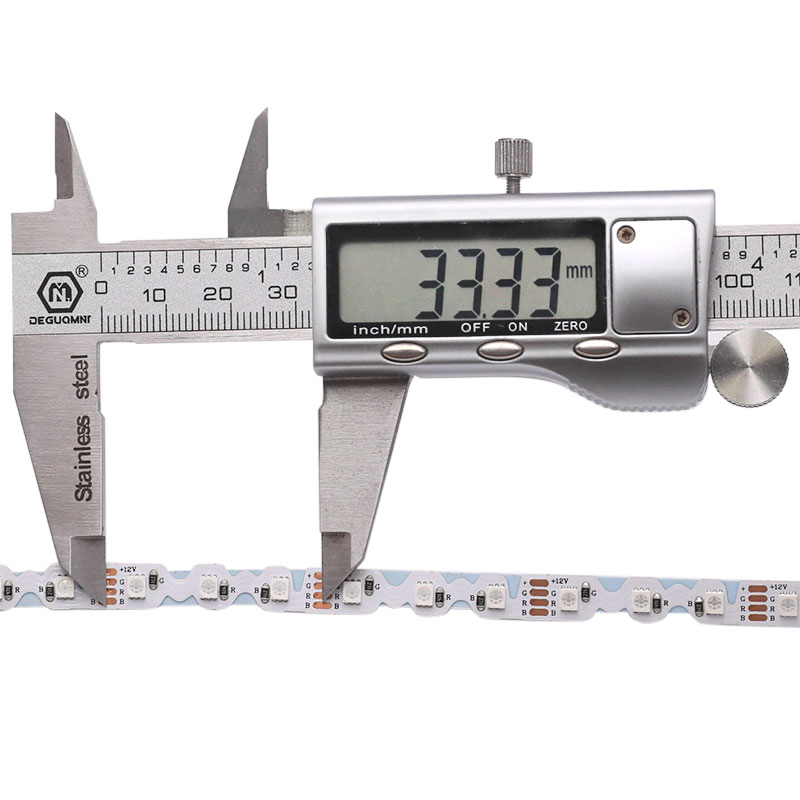

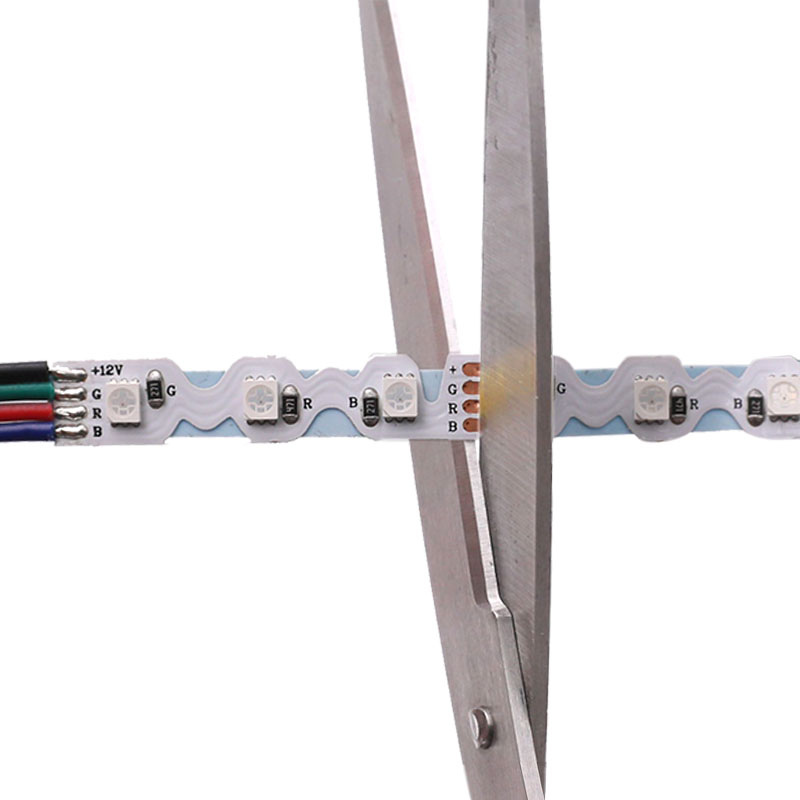

3-LED/33.33mm a segment, can be cut according to your installation needs
Adhesive double-sided tape, easy installation
Need an RGB controller and 12V power supply or an RGB driver to use
Standards and Certifications
|LED Strip Type:||S Shape RGB LED Strip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||RGB Color Change|
|LED Quantity:||90 LEDs per meter, 27/ft, 450LEDs per roll|
|Cut Unit:||3-LED, 33.33mm/1.3"|
|PCB Width:||7mm / 0.27"|
|Input Voltage(V):||12V DC|
|Working Power:||12W/m, 3.65W/ft, 60W/roll|
|Beam Pattern:||120 degrees|
How to power this S shaped RGB led strip:

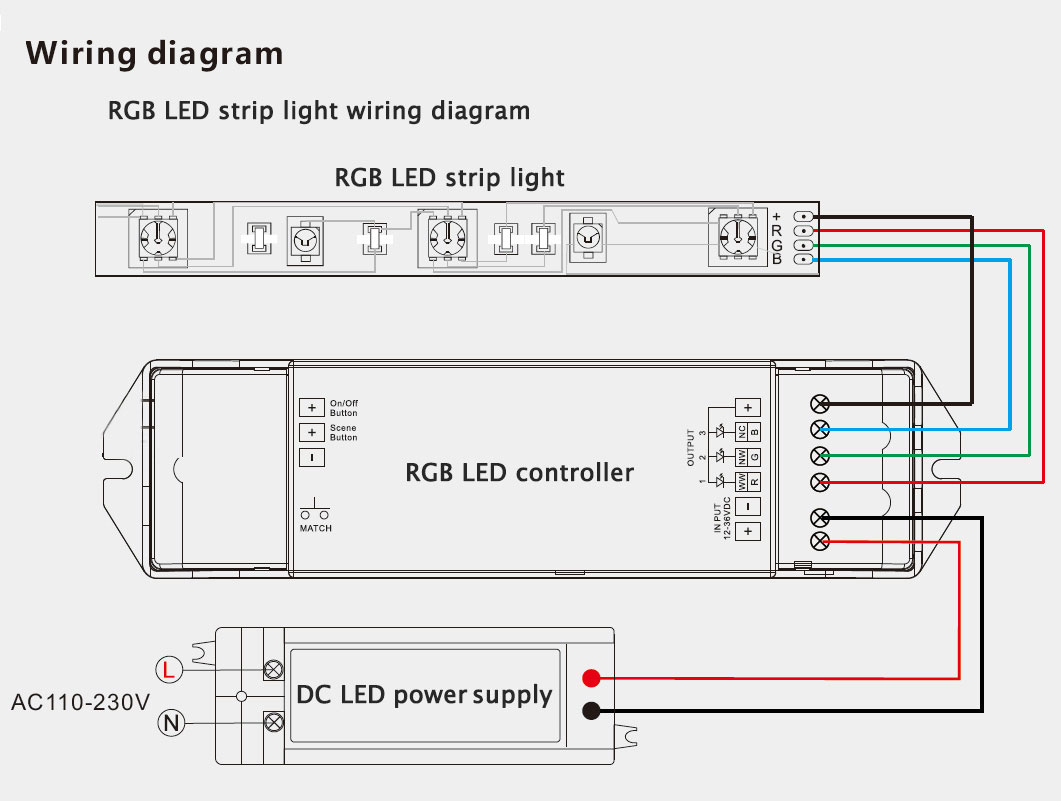

1. Used with RGB Controller and 12V power supply:

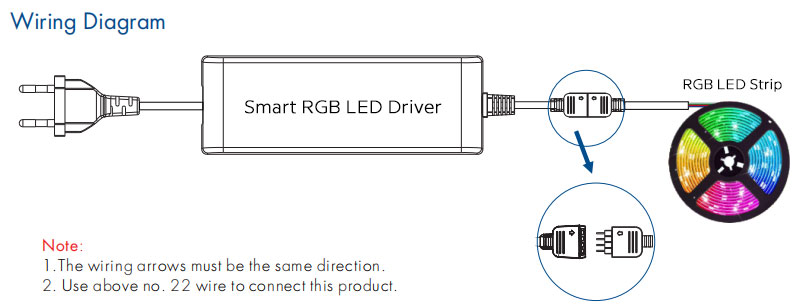

2. Used with smart RGB LED driver:
