DC5/12/24V 4Ax3CH, LED Mini Inline Amplifier Repeater Data Signal Amplifier For Single Color Led Light Strips
This small compact LED amplifier will help boost the signal of your LED strip lights after the allotted run length. Supper mini, safe and easy to operate. Typically, you will only need this product if you are dimming your LED strip lights from an LED dimmer. This amplifier will carry the dimming signal (PWM) from the first run of LEDs to the second run. If you are not using a dimmer, you do not need this product. You can connect the amplifier by soldering the input and output wires directly to the LED strip or by using solderless connectors. This product is NOT to be used with a Lutron or a Magnetic driver. Every add a amplifier, can connect double LED quantities.
Standards and Certifications
Type: Single Color Amplifier
Standards And Certifications: CE/FCC/ROHS Compliant
Warranty: 3 years
Craft materials: PVC
Operating Temperature: -30~+75°C
Working current: 12A
Voltage: DC 12V
Working power: 144W
Cable length: 12cm
Dimensions: L10.43 in x W0.47 in x H0.16 in (26.5 cm x 1.2 cm x 0.4 cm)
Great for: LED single color strip

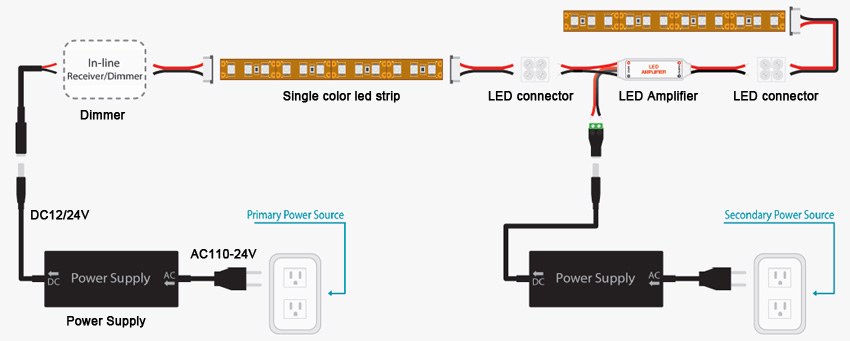

Mode of connection
Supply voltage of this product is 12 Volts DC, do not exceed
Shorting output wires my cause damage to amplifier
Always observe proper polarity when connecting power and load
1 x LED RGB Amplifier
1 x User manual
