DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights

Model: CONFULL-RF-7M
DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights
  • DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights
  • DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights
  • DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights
  • DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights
  • DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights

Select Specifications:

Select Operating Voltage :

Select Applied to:

$16.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$16.98
5-9
$16.64
10-14
$16.13
15+
$15.45
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    T-500 Mini Intelligent RGB LED Controller For 5050 WS2811 WS2801 LPD6803 Addressable Magic Dream Color RGB LED Strip lights,

    All our products have been carefully selected and they are same as the picture which you see on our store.

    We already let the product color tend to the true as far as possible, however because of the monitor color error there more or less has a little bit of different.

    But definitely the product shape is the same as the picture.



    Standards and Certifications





    Product Specification

    Supply Voltage:   DC5-24V

    Output Type:   TTL/SPI

    IC Control Quantity:   512pcs

    Working Temperature:   -20°C - 60 °C

    Dimensions ( L X W X H ):   bout 98mm x 62mm x 23mm

    Net weight:   86g

    Package weight:   105g



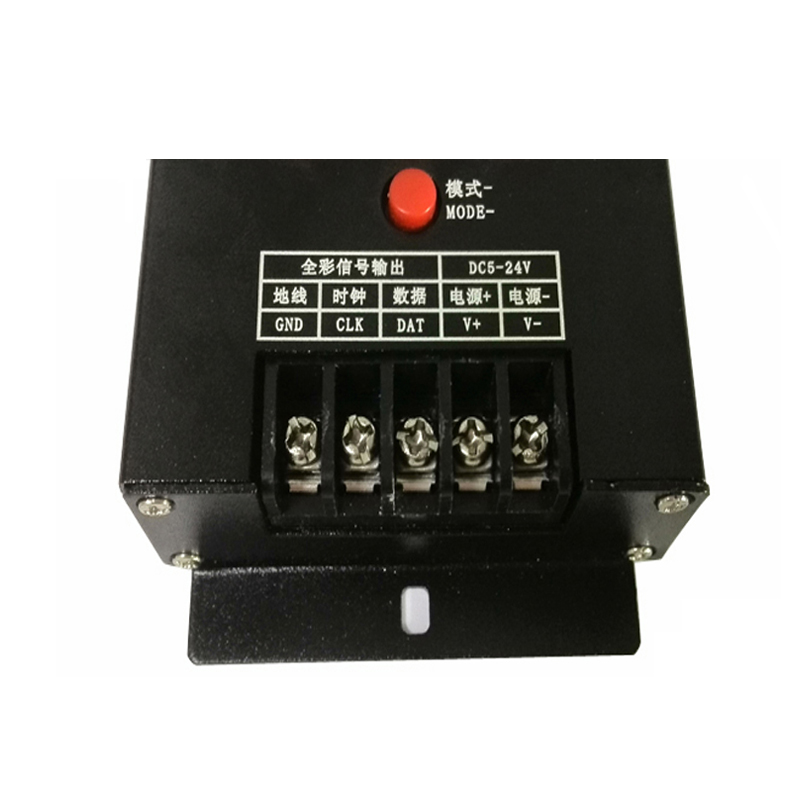

    Remote and Controller

     1. Connect led light signal wire first,Generally single wire IC(TM1803/TM1804/TM1809)just connect

    DAT and GND,Double wire IC(LPD6803,SM16716)connect DAT,CLK and GND.

     2.  "Power+"Switching power supply DC12V positive,"Power+" Switching power supply DC12V negative.

     3. Display when power supple:P-001  P: represent Mode  001: represent Mode value, Total 36 mode.



    Setting Instructions

     1. Press the setting , Into "IC mode choose" state,Press "mode+"or"mode-"can select different IC

    which IC model digital tube can show,Able been controlled IC model: LPD6803 LPD1109 LPD1882

    LPD1886 P9813 SM16716 TM1803 TM1903 TM1829 WS2811 WS2801;

     2. Then press the setting again, then set IC quantity, Press"mode+"or"mode-"add or reduce IC quantity,

    Digital tube show:L-001, Max IC quantity: 512pcs;

     3. Press the setting once more to save Settings information,the interface back to mode selection:P-0xx;

     4. Change mode: Directly press:"mode+"or"mode-", Interface show: P-0XX corresponding value

    will increase or decrease;

     5. Adjust the speed of change: Directly press:"mode+"or"mode-", Interface show:SP-XXX

    corresponding value will increase or decrease.

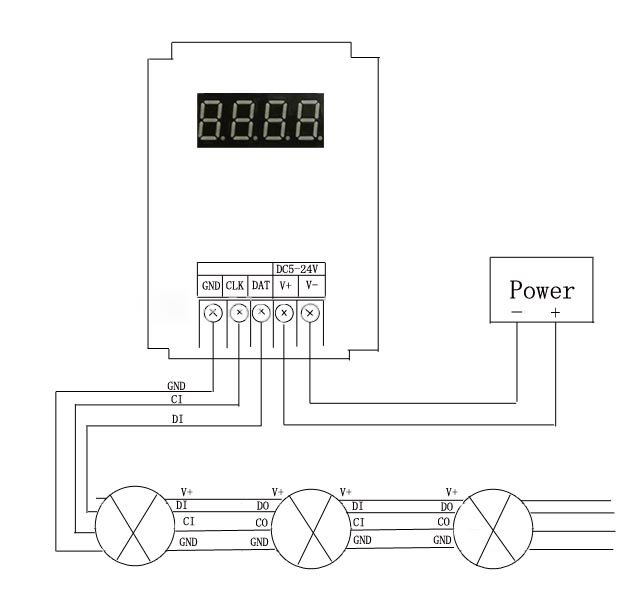

    Connection Diagram



    Applications

    Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.

    Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc



    Safety

    Supply voltage of this product is 5/12 Volts DC, do not exceed.

    Shorting output wires my cause damage to dimmer.

    Always observe proper polarity when connecting power and load.

    For indoor use only - this product is not waterproof or weatherproof.



    Note

    QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

    Connect according to the Wiring Schematic drawing.

    Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.



    Package including

    1x Controller

    1x User Manual



    DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights

    DC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip LightsDC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip LightsDC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip LightsDC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip LightsDC5/12/24V, New Multi fuction LED Pixel Full Color Mini 5Keys WS2801 WS2811 LPD6803 IC Controller for IC LED Module Strip Lights
