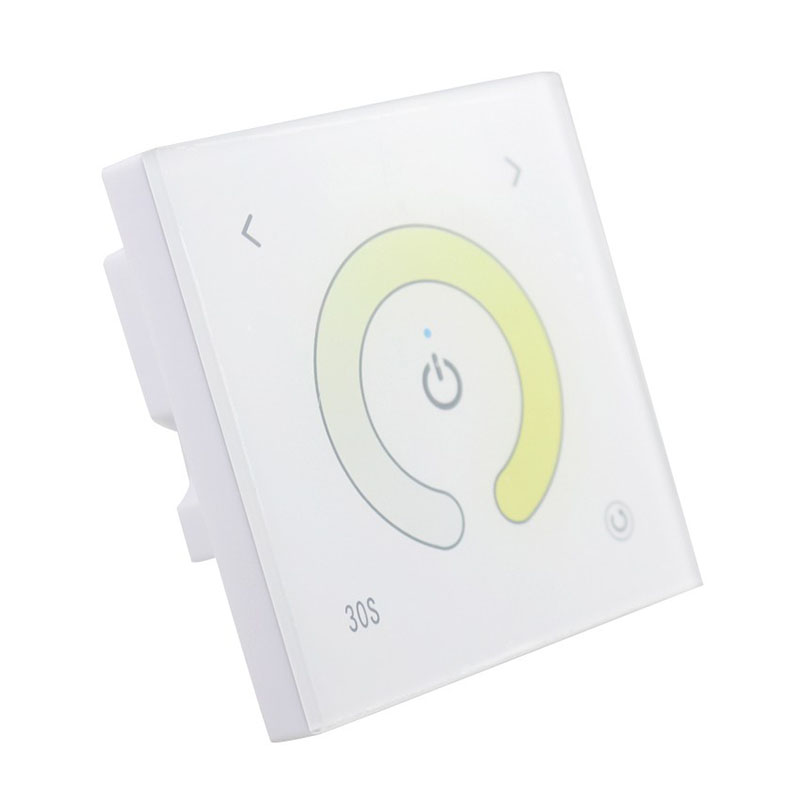

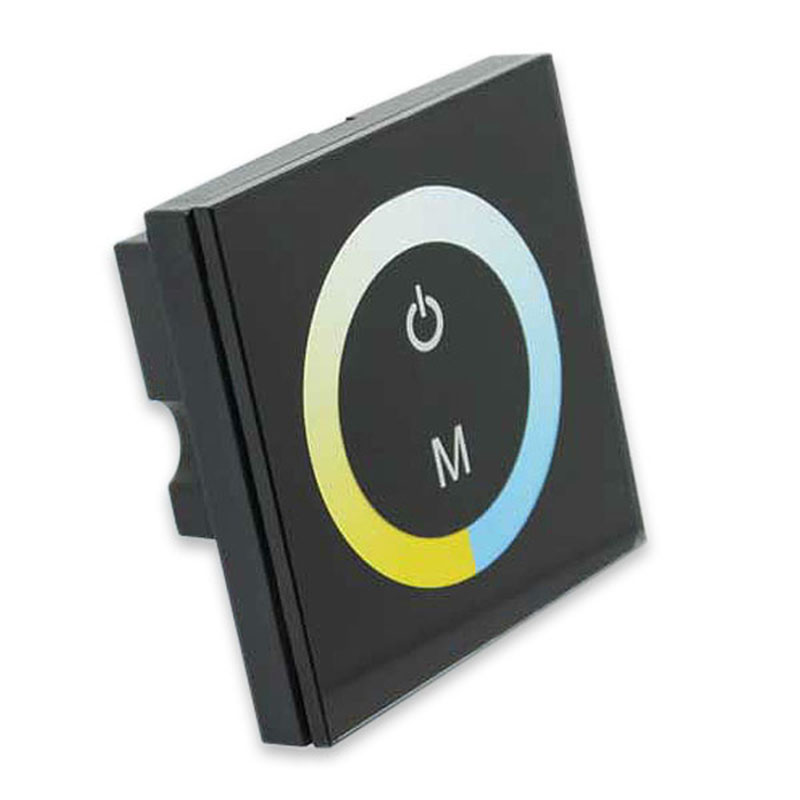

Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light etc., it has many advantages such as convenient to connect, easy to use and others. It can carry out cold, warm, white light and other effects of lighting change.
Working Temperature: -20-60 ℃

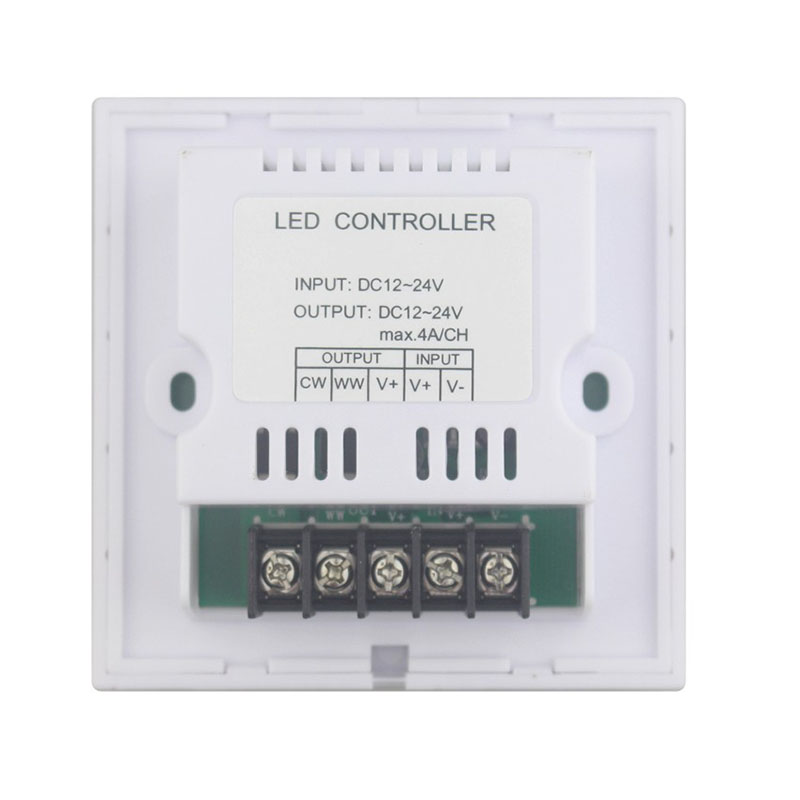

Supply Voltage: DC12-24
Output: 2 channels
Connection Mode: common anode

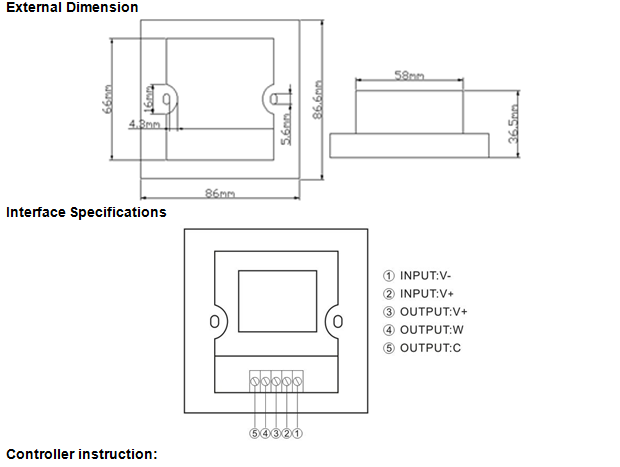

External Dimension: L86 Χ W86Χ H36mm
Packing Size: L115 Χ W110 Χ H56 mm
Net Weight: 130g
Gross Weight: 187g
Static Power Consumption: <1W
Output Current: <4A( each channel )
Output Power: 12V<96W,24V<192W
