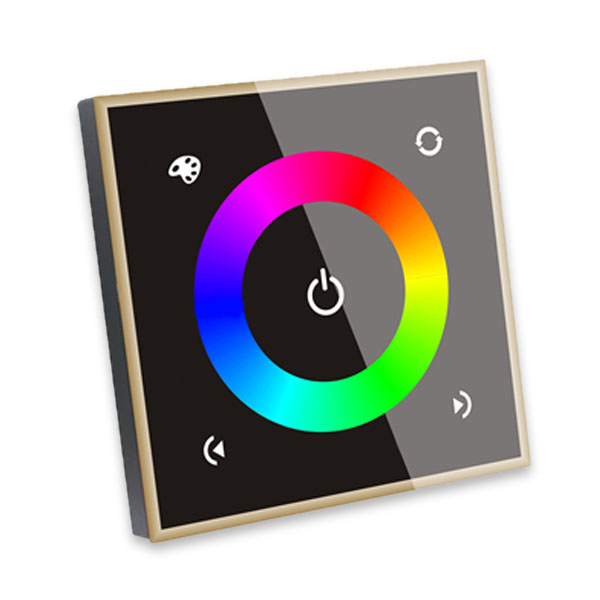

TM09 DC12V-24V 86 Type 4 Channels Touch Panel Controller
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. This controller can control RGB and RGBW led lamp, users don't need to purchase a variety of controller, then can achieve the effect you want, also RGBW mode can realize pure white light effect that RGB lamps and lanterns can't reach.
Working Temperature: -20-60 ℃
Supply Voltage: DC12~24V
Output Voltage: DC12~24V
Output: 4 channels

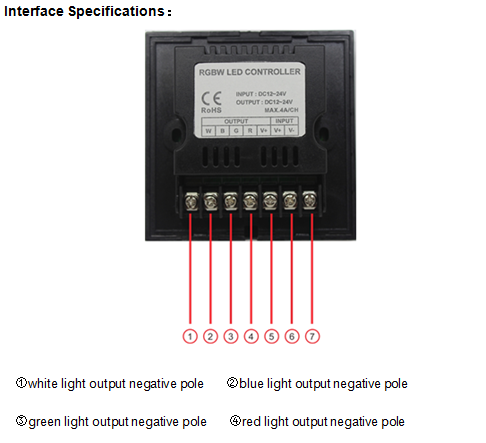

Connection Mode: common anode

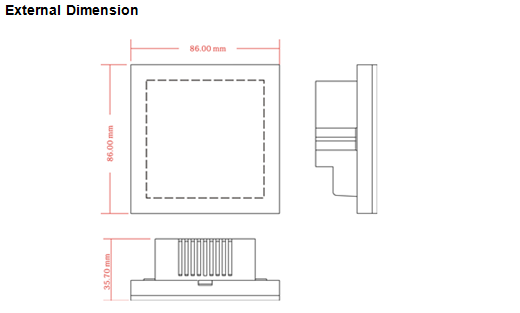

External Dimension: L86 * W86 * H36.7mm
Packing Size: L105 * W105 * H53 mm
Net Weight: 131kg
Static Power Consumption: <0.54W
Output Current: <4A (each channel)
Output Power: 192W/12V, 384W/24V
