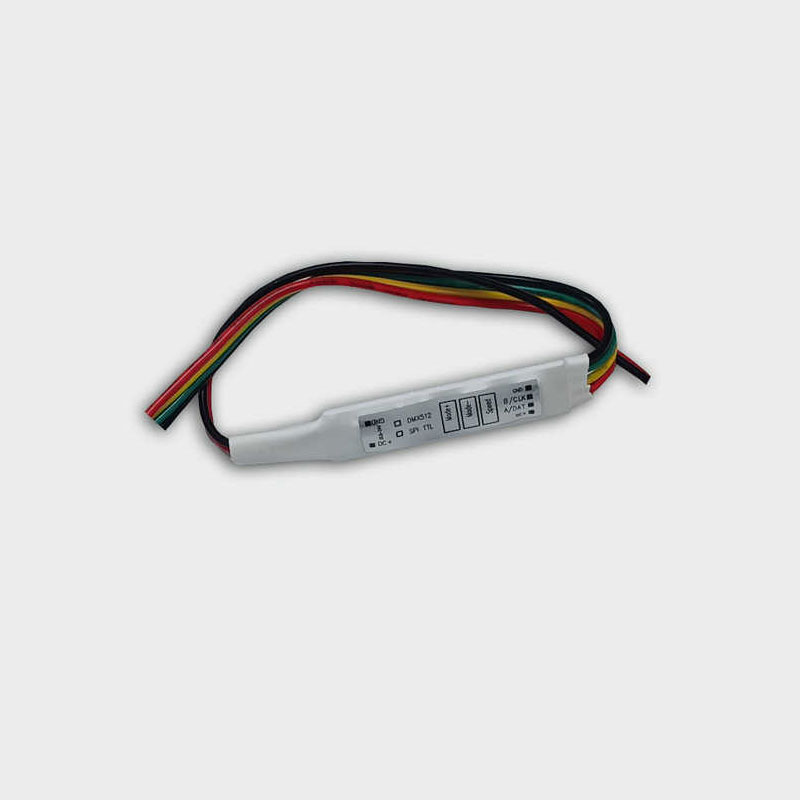

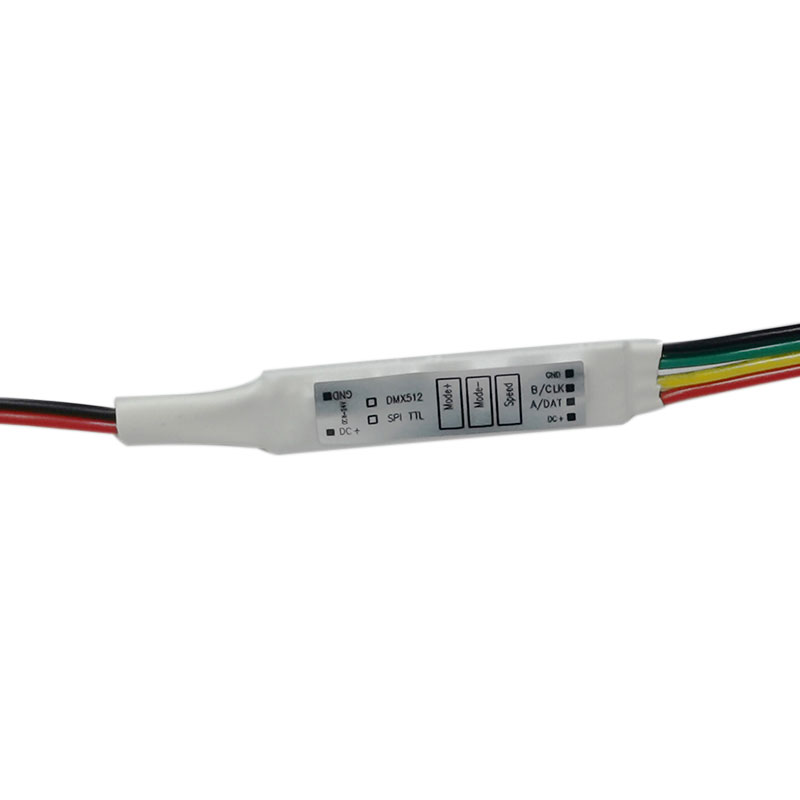

This LED mini controller adopts addressable SPI/TTL and DMX control method, with DC8-24V operating voltage, differential signal output, the distance between the mini controller and the light strip is no more than 25 meters. With 30 built-in patterns, the light colors and effects can be quickly set with a one-touch write code UCS512C (RGB). Standard DMX512 protocol supports up to 170 pixel control.

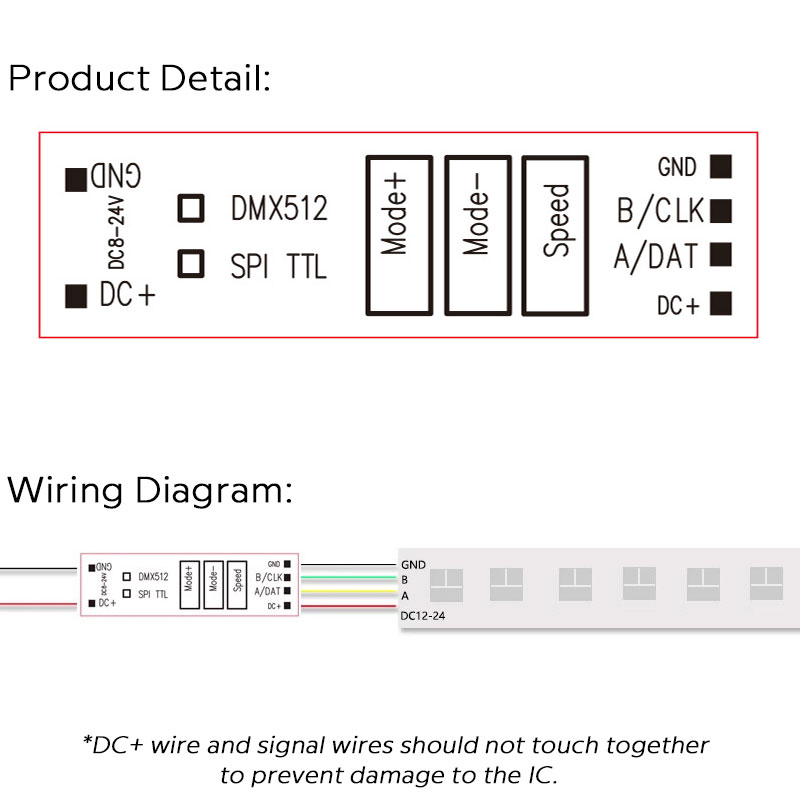

The controller's differential write code function can be achieved by long pressing the MODE+ key for more than 5 seconds to support one-touch write code for UCS512C4 and TM512 dual-line protocols. When the code is written, the LED will light up red (50% brightness) first to indicate the code writing operation is in progress, and when the code writing is successful, the LED will light up blue (50% brightness) to indicate the user that the code writing is successful.
Notice: Only for testing, not for engineering.
DC8-24V operating voltage
Differential signal output
Distance between controller and light strip＜25m
Built-in 30 kinds of patterns
Can write code UCS512C (RGB) with one key
170 pixel points for standard DMX512 protocol
