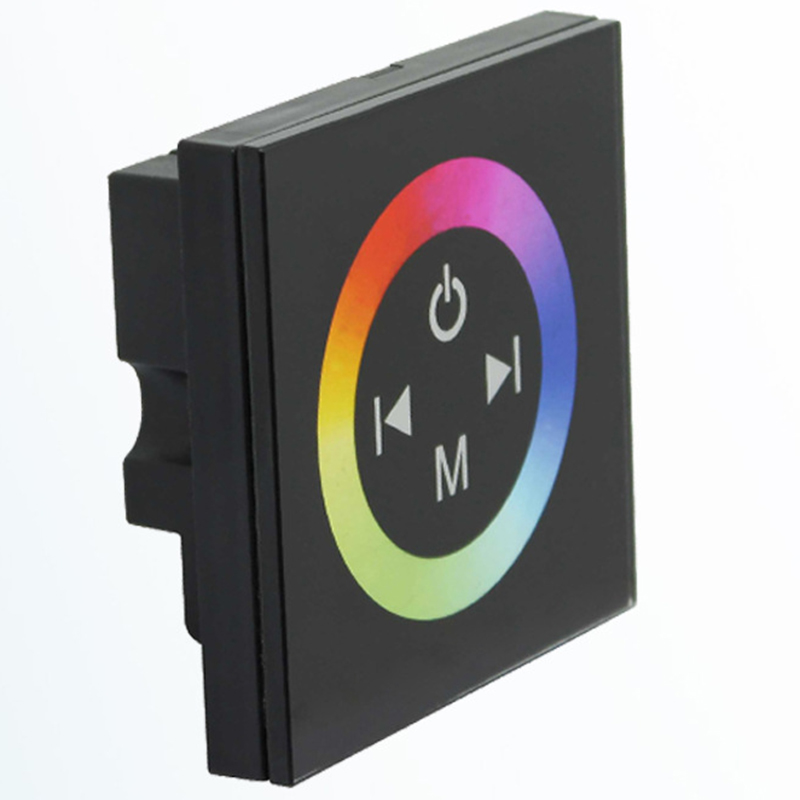

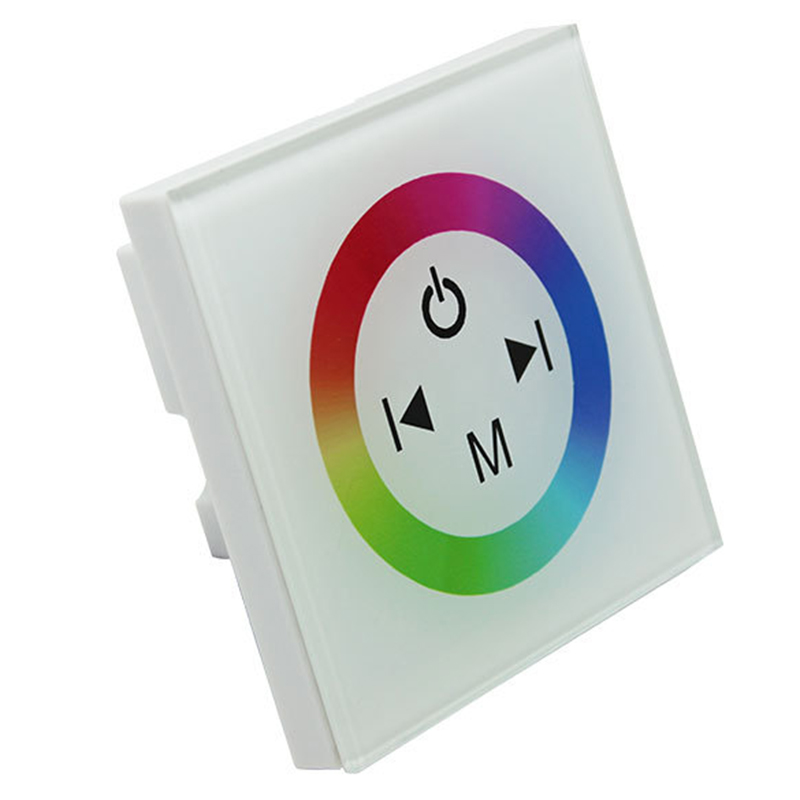

TM08 DV12-24V 3 Channel LED Touch Panel Controller, 86 Type Low Voltage Touch Panel Switch
Touch panel controller is a new high-end controller which newly developed by our company. It adopts glass panel design, is beautiful and fashionable in appearance. It adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, panel lights etc., it has many advantages such as convenient to connect, easy to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Standards and Certifications
Working Temperature: -20-60 ℃
Supply Voltage: DC12-24V
Output: 3 channels
Connection Mode: common anode

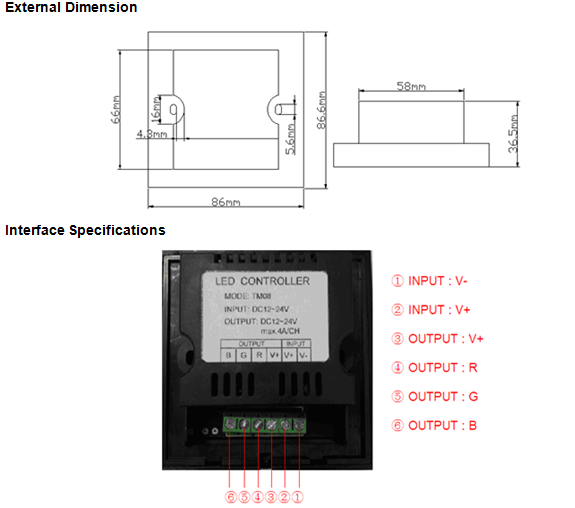

External Dimension: L86 Χ W86 Χ H36 mm
Packing Size: L115Χ W110 Χ H56 mm
Net Weight: 128g
Gross Weight: 187g
Static Power Consumption: <1W
Output Current: <4A( each channel )
Output Power: 12V<144W,24V<288W
