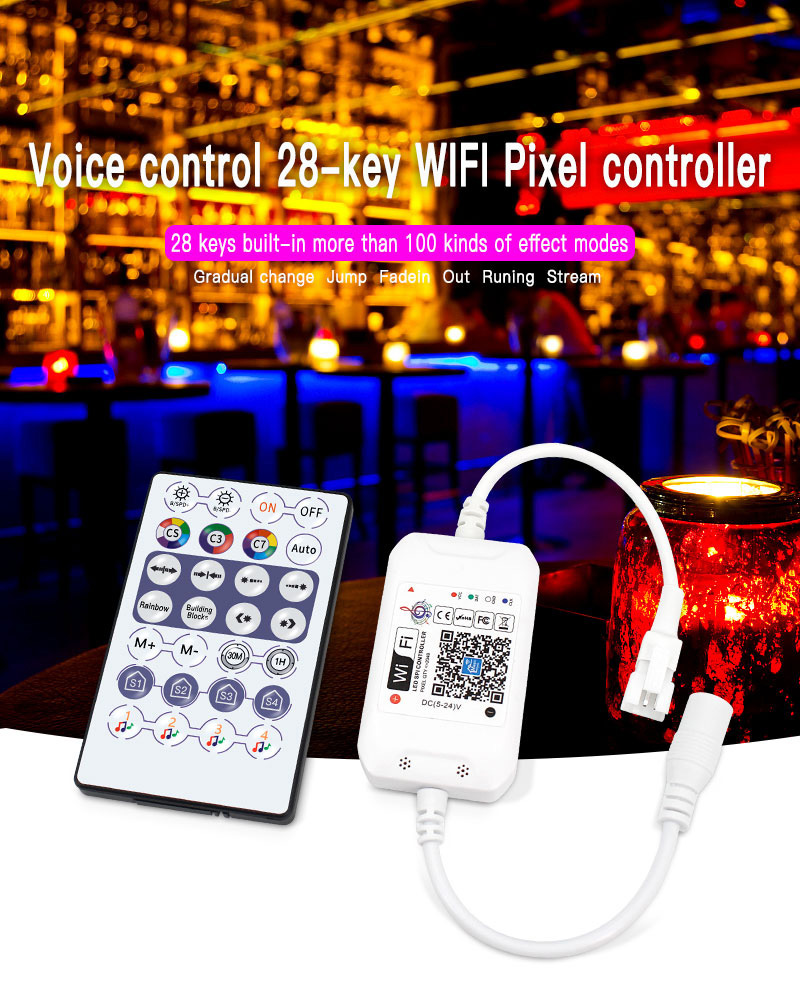

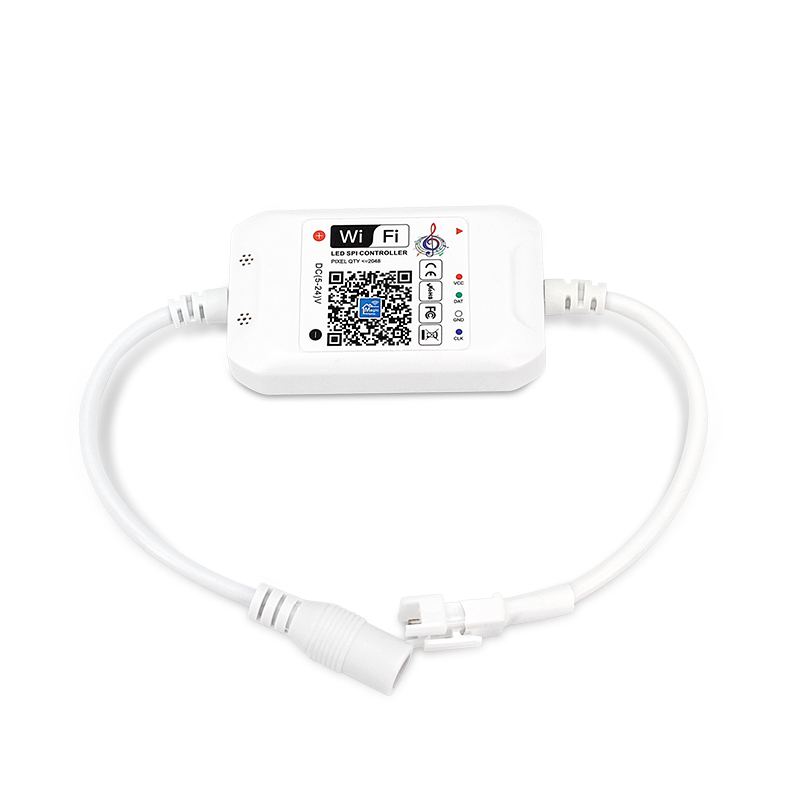

DC5-24V WiFi SPI Music Single Channel 2048 Pixels Magic Home Pro RGB/RGBW 28Keys RF LED Controller Compatible With Alexa and Google Assistant
This is our latest Magic home pro app SPI led controller model. It is compatible with most addressable RGB ICs in the market, supports SK6812 SM16704 SM1814 RGB and RGBW chips, WiFi and RF wireless control, compatible with Alexa and Google Assistant, and outputs 2048 pixels. The APP has built-in 300 dynamic modes and 30 music spectrum effects, and has an internal timer function. It is currently one of our best-selling SPI models.
What you need to know about the led strip knowledges
This controller support Addressable SK6812 RGBW, TM1814 RGBW and other RGB IC,
Category: LED Controller
Domination Principle: WiFi

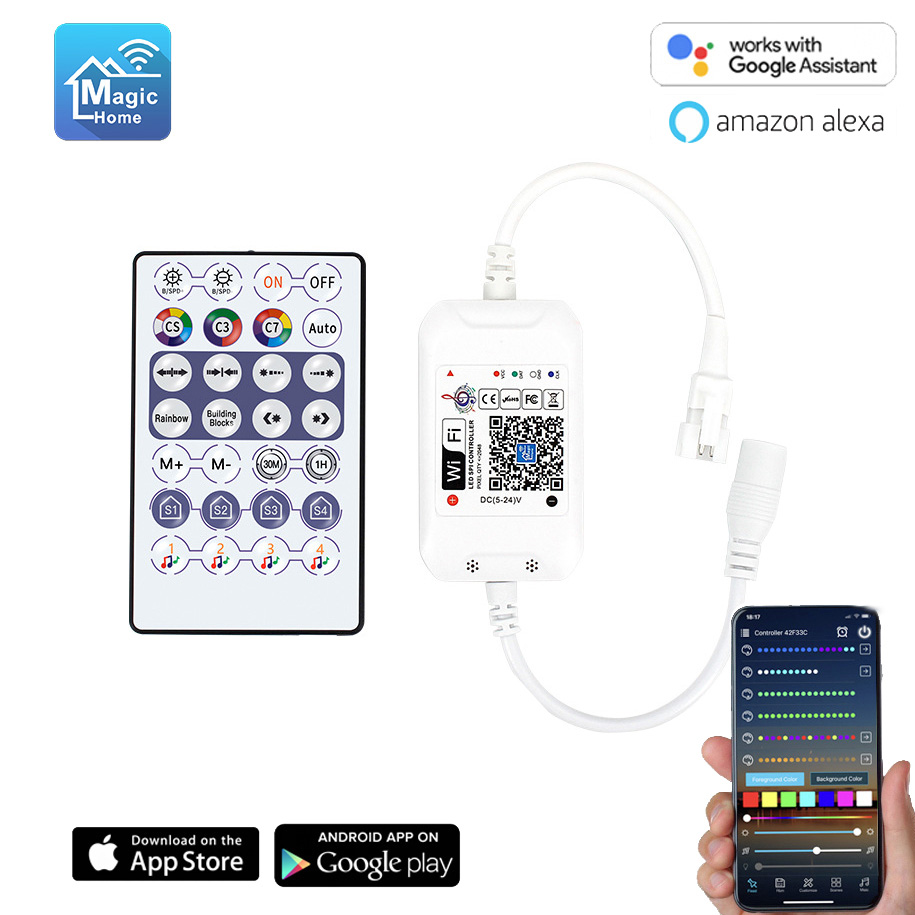

APP: Magic Home Pro
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Operation Platform: Android 4.0 or IOS 9.0 or higher
LED Drive Type: SPI:WS2812B,SM16703,SM16704,WS2811,UCS1903,SK6812,INK1003,UCS2904B
Input Voltage: DC(5-24)V
Max Output Power: 144W
Work For: LED Strip
Connect Method: Common Anode
Working Temperature: -20~+55℃
Control Distance: Visible distance 40M
Certification: CE, RoHS, FCC
Warranty: 1 Year
LED Remote Controller Size: L61mm*W36mm*H14mm

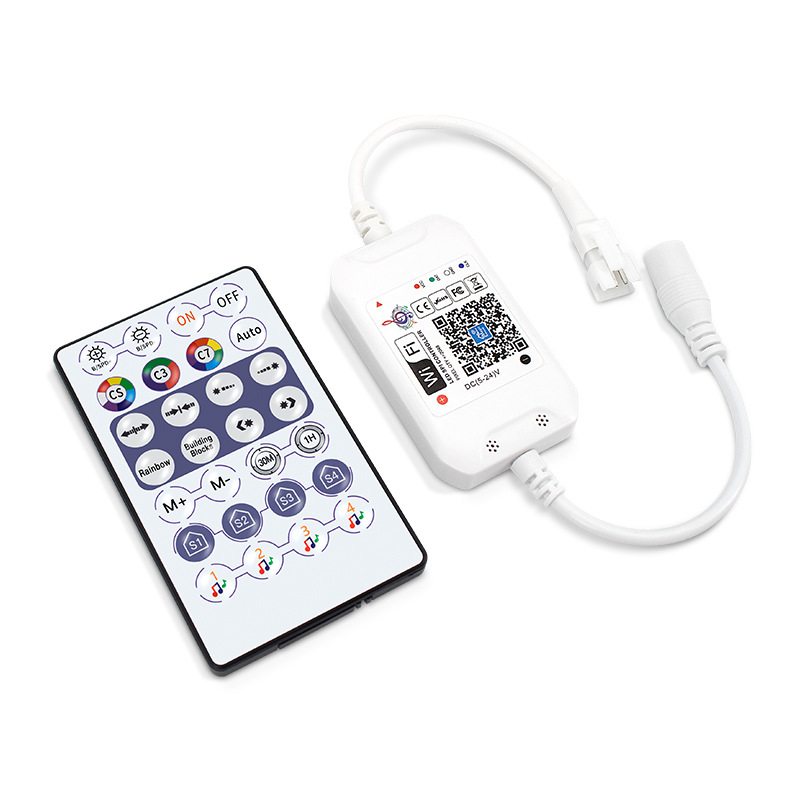

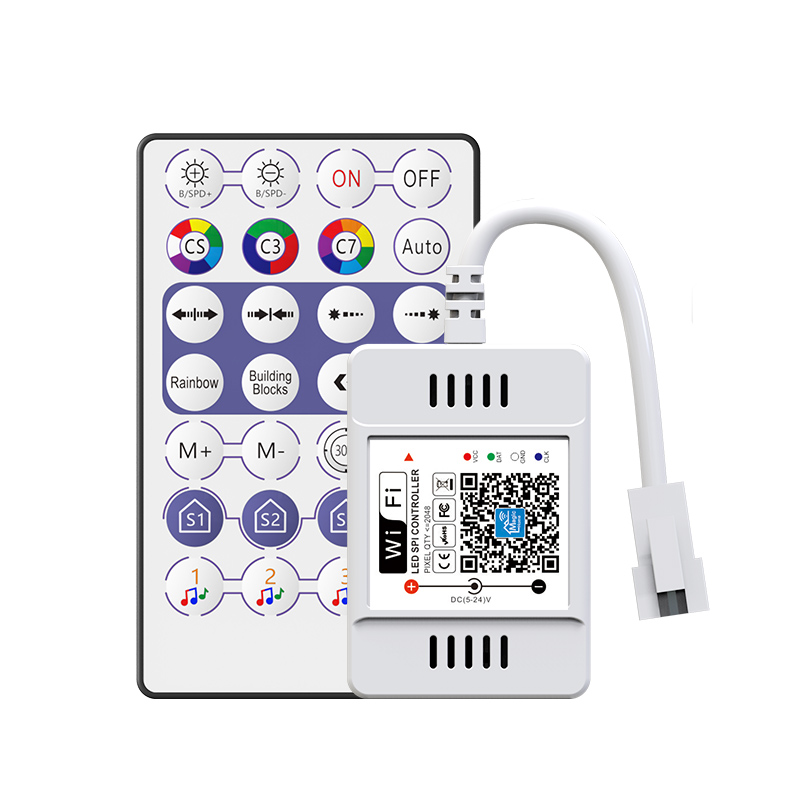

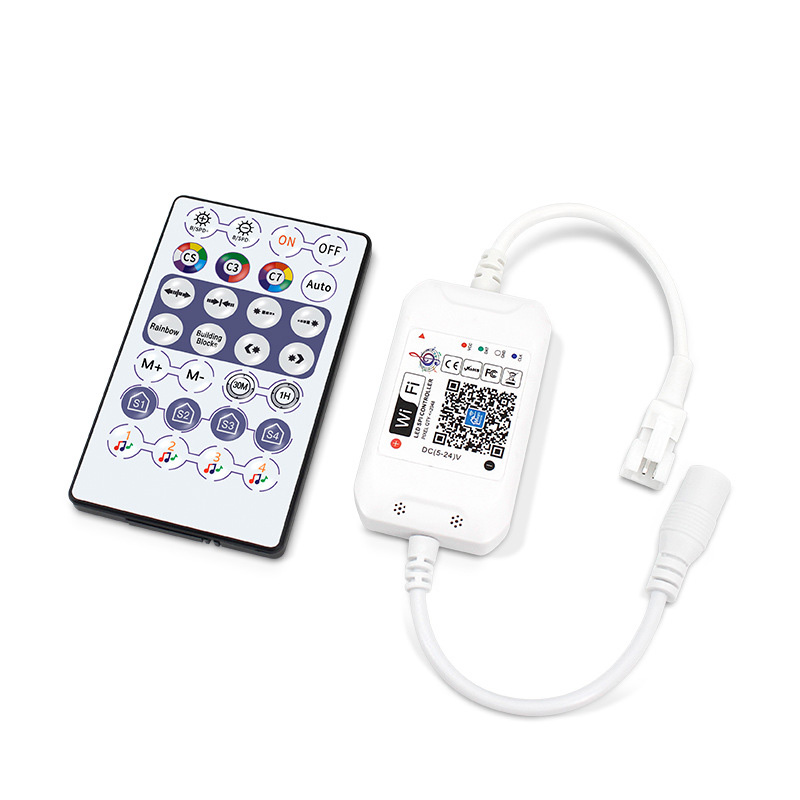

1* LED WIFI Music Controller
1* 28 Keys LED Remote Controller
How to set the IC model and IC numbers:
Long press the device and click on“ Change LED Strip Type” to set the IC model, Wiring and Sorting, Number of points, Number of segment(Total number of points can not exceed 300 in each segment and total LED chip’s quantity can not exceed 2048). On music mode, the total number of points in each segment and the total number of segment should be less than 150 points and 64 segments, the total LED Chip’s quantity should be less than 960.

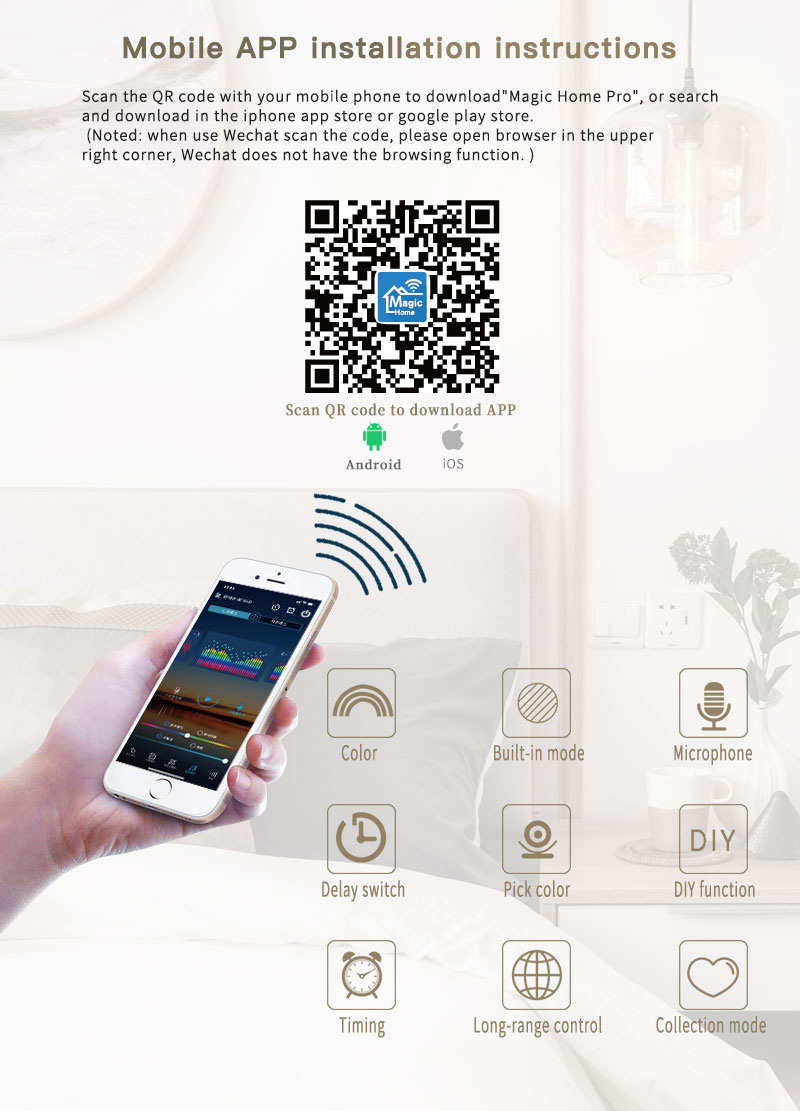

Detailed introduction of APP functions
10 fixed modes are built in, can change foreground and background color, adjust
brightness, speed and direction freely.
100 patterns of change, slide the ring to select pattern effect, and slide“ ” or“ ”
for overall pattern effect brightness or speed settings. Click on“ AUTO” to enter
cycle mode or click on the heart icon to mark the favorite effect.
Customized your own effects, click on”+” to choose your favorite effect and color
then save it, now you can enjoy your own light effects at any time.
1. In the light screen mode, you can choose the falling color, column color, sensitivity and brightness, which can be played circularly to achieve a more beautiful light effect.
2. In the LED Strip Mode, you can select the brightness and sensitivity. There are two ways to input the audio signal on the controller, built in APP microphone and external microphone.
Multi color function
1.Can set each IC seperately and set the lights with different modes 2. Optional dynamic modes for color lump gradient or mixed colors gradient:static, Asynchronous colors jumping, random color breathing, strobe and flow
2.The area where the camera is aimed at is the coloring area, and the light color will changed accordingly.

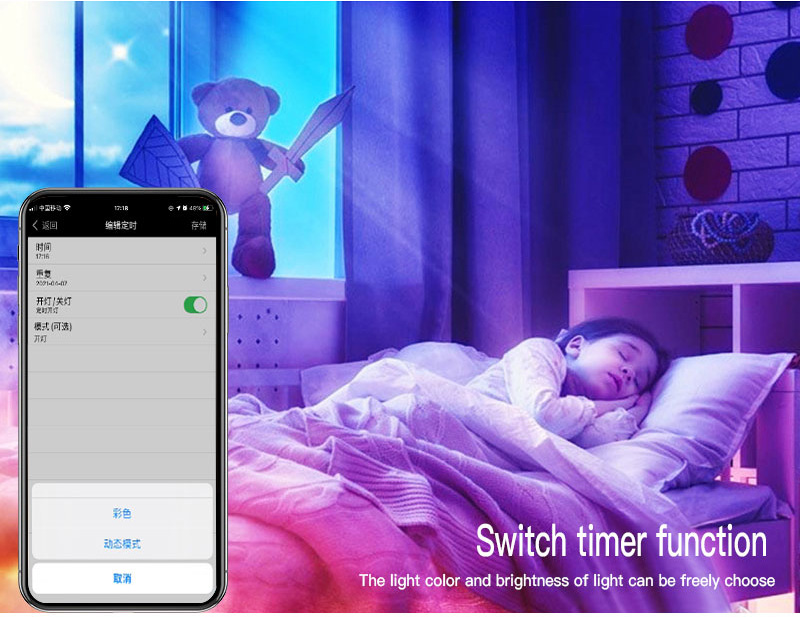

Smart lights automatically come on and off at given times through the timer function.
When setting the timer switch, you can select the color or dynamic mode and adjust the brightness and speed freely.
Delay on/off function
The lighting delay on/off time can be set according to personal preference.
1. Please use the product in a dry environment.
2. Please use the input voltage at 5-24V DC voltage, must not connect into 220VAC directly.
3. The product is requested common anode connection. The wrong connection will cause a malfunction.
Remote control code matching function: power on the device, hold down "ON" key for 5 seconds, the device flashes slowly to indicate successful code matching.
Remote code clearing function: power on the device, hold down "OFF" key for 5 seconds, the device flashes quickly to indicate successful clearing
Scene mode can only record one custom color
The controller built-in 2048 pixels, can be connect 6 rolls of WS2812B 5V led strips or 20 rolls of WS2811 DC12V led strips, a 1to8 amplifier can magnify the signal by 8 times,
So an amplifier can be connected over 24 rolls of WS2812B 60LEDs/m led strips,
two amplifier can be connected over 48 rolls of WS2812B 60LEDs/m led strips,
If you you want to control DC5V WS2812B/SK6812 led strip, please cut the red wire(V+), just connect white and green wire(GND,DAT) and all the led strips please supply DC5V power seperately, the controller supply DC12V 3A power seperately,
if your light power more than 80watt, we also suggest that you supply the light strip power separately.
if your led light pixel more than 2048 pixels, please use a signal amplifier,
If you do not know how to connect, or how to find the correct product, please feel free to contact me.
If you don't know how to use the amplifier to connected more than 1000 feet or how to connect the WIFI controller, please feel free to contact us, email@example.com

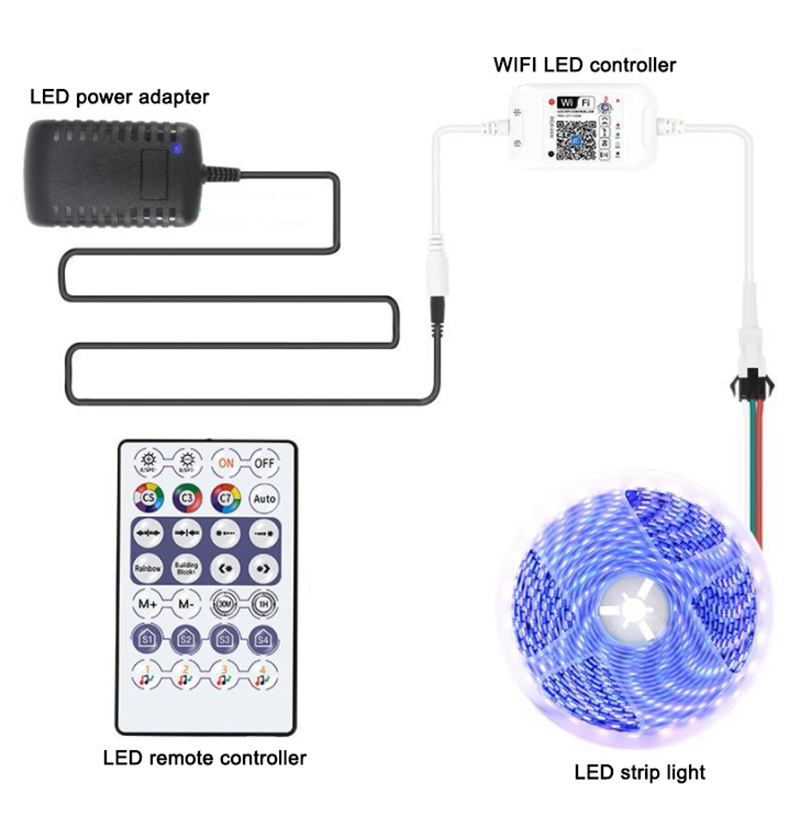

How the wire the whole LED strip light kit:
How to connect amplifier
Signal amplifier (repeater) receives one way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream-color striplight changes in effect; and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifier.
How to connect 3,000 foot+ WS2812B 5V LED Strips

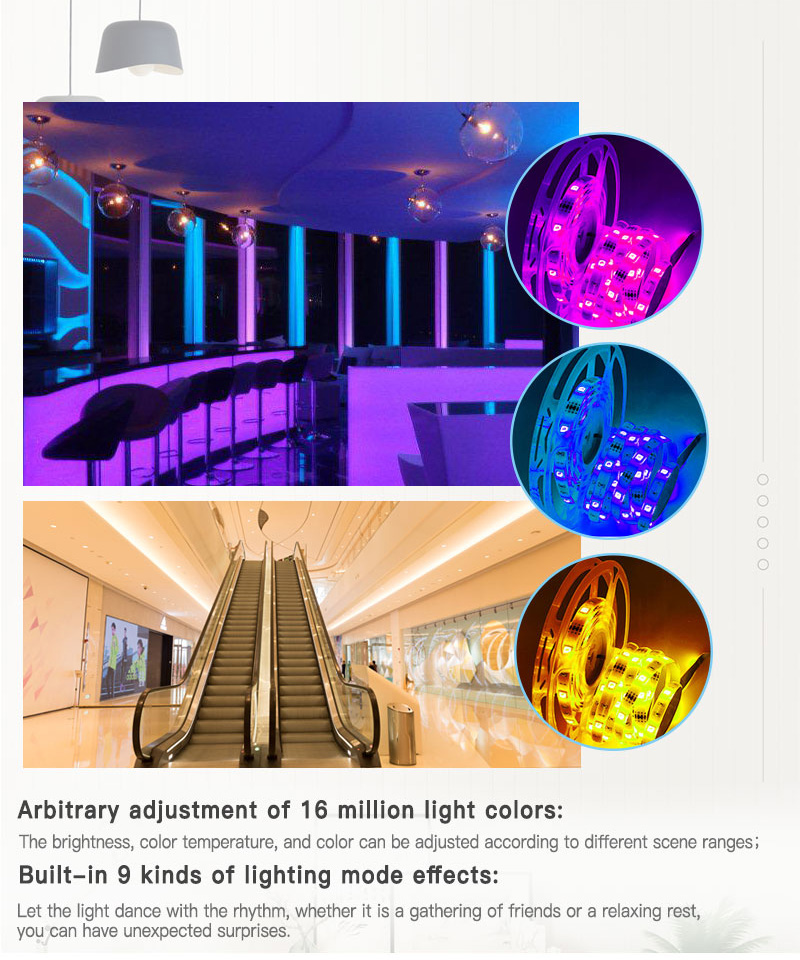

Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
