DC5V LED RGBW 5050 built-in IC waterproof full color IP65 waterproof module

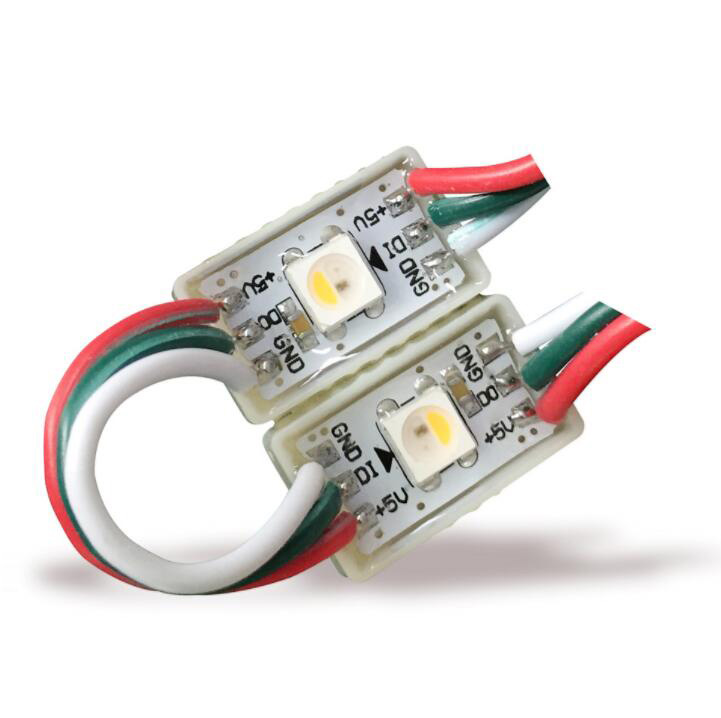

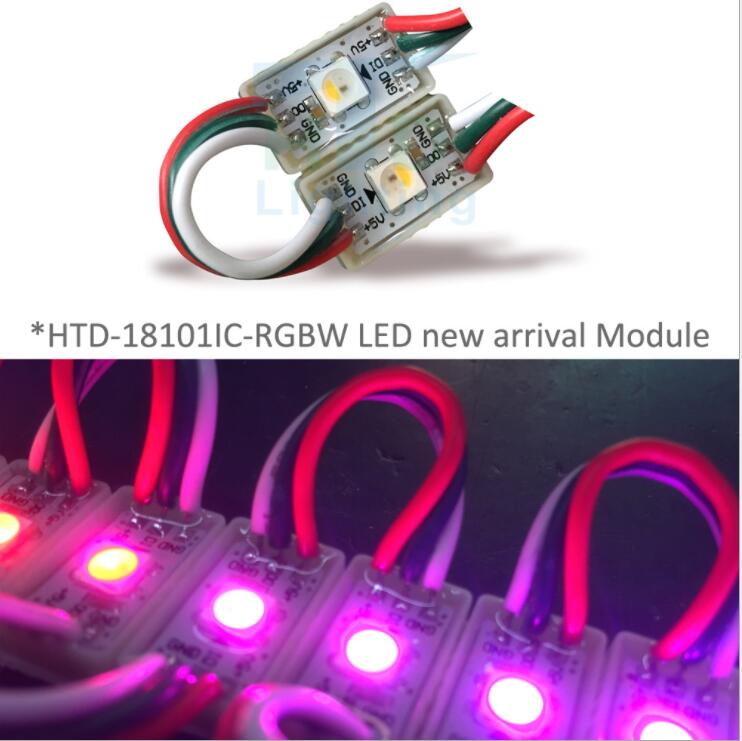

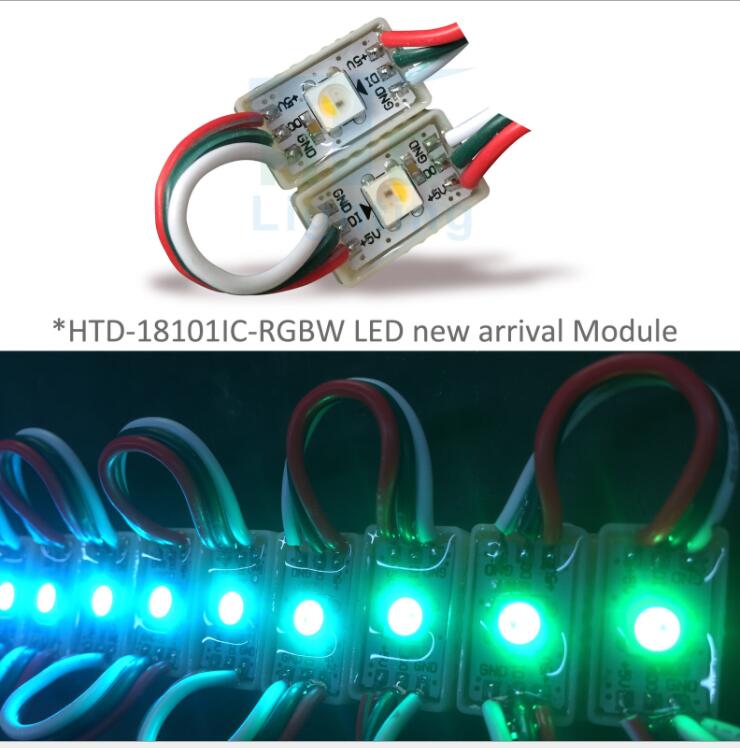

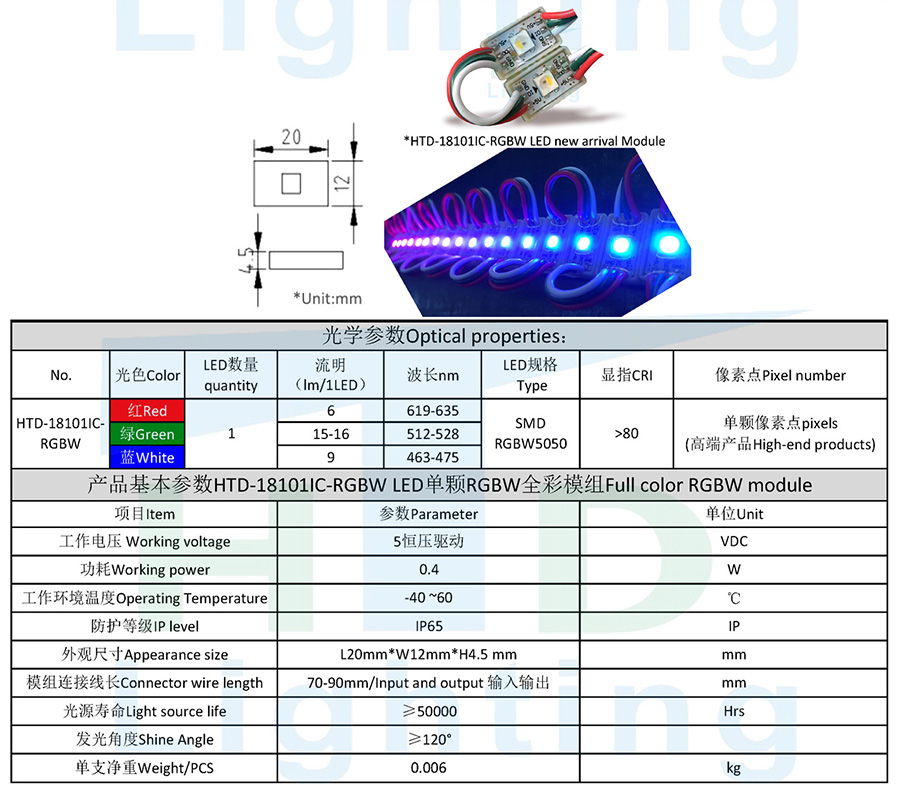

This is Full-color 5V Super Bright High-Efficiency SMD5050 RGBW IC LED Pixel Modules. 3LEDs per piece, 0.4W per piece, 20pcs per string.
Our LED modules adopt TOP SMD5050 LED light source, these pixels use an RGBW chip for full 24-bit color, constant-current driven light spot, low light decrease, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape. Narrow injection molded PVC design has two 4mm/0.15" mounting holes and with double-sided adhesive foam tape for quick installation. 20pcs per string, a single module can be cut, so you could cut a different length for your project and request. 20AWG 3pin cable, Red cable to connect 5v Positive / +, Green cable to connect Data Signal, Yellow cable to connect Clk Signal, Blue cable to connect 5v Negative /-, over-current capability, lower attenuation. The shell is made of the injection molding process, aesthetic appearance, unique and excellent, aluminum PCB, good heat dissipation, heat dissipation. The LED strips Suitable for the commercial lighting as well as lighting professionals, Waterproof IP65, Suitable for both indoor & outdoor decorative application. 5VDC low voltage input operation, Low power consumption, high brightness, long lifespan, maintenance-free, safe and reliable. Quantity ordered will be wired together on a string with 20 modules maximum per strand.
Working with RGBW full controller can download the programs in SD card, control Max 2048 Pixel, It has the single color running scene.
Standards and Certifications
three-dimensional light-emitting word
Channel letters lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
