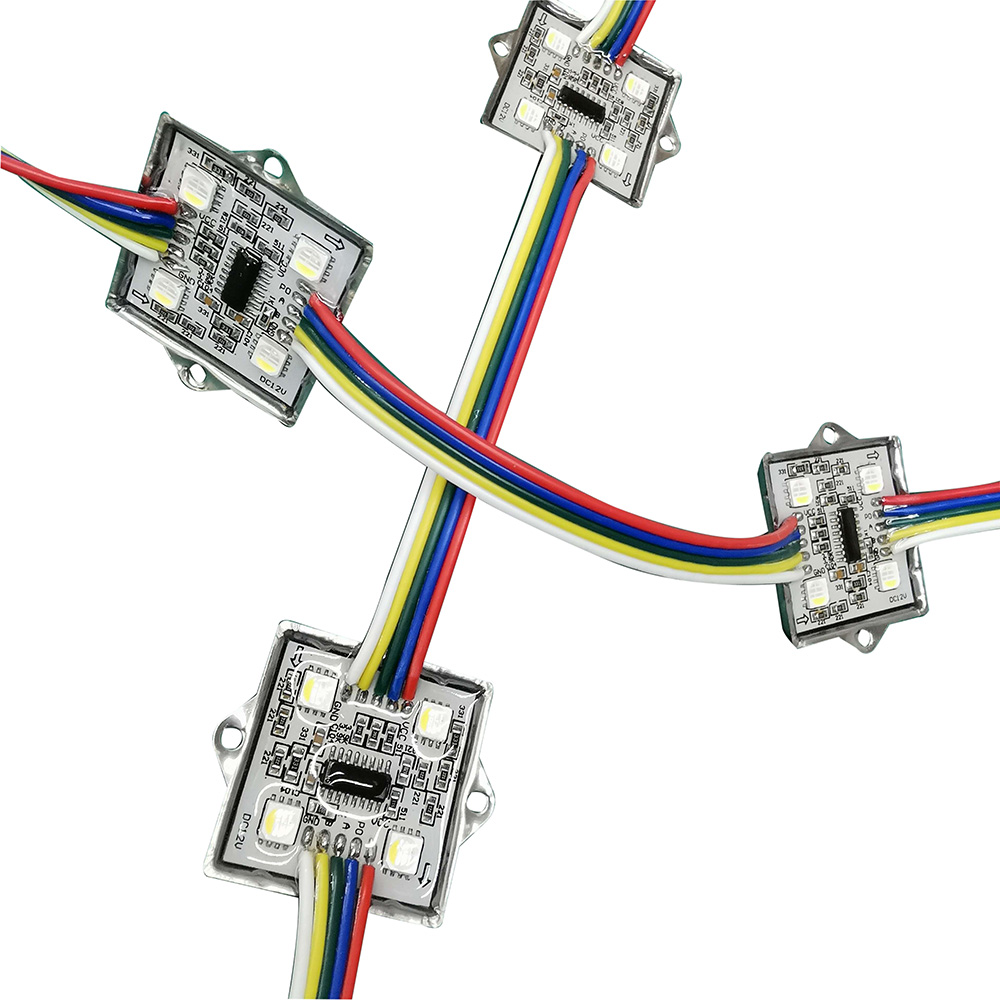

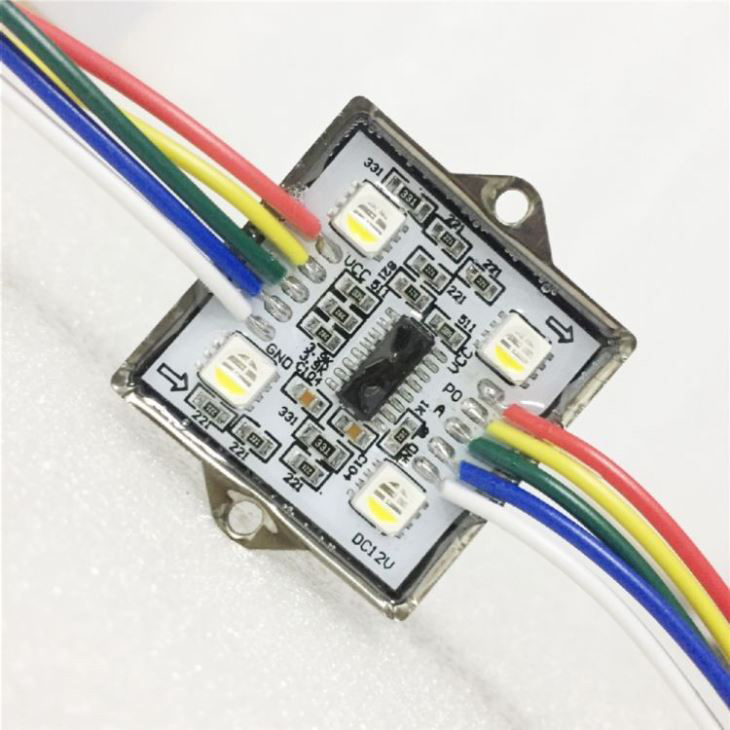

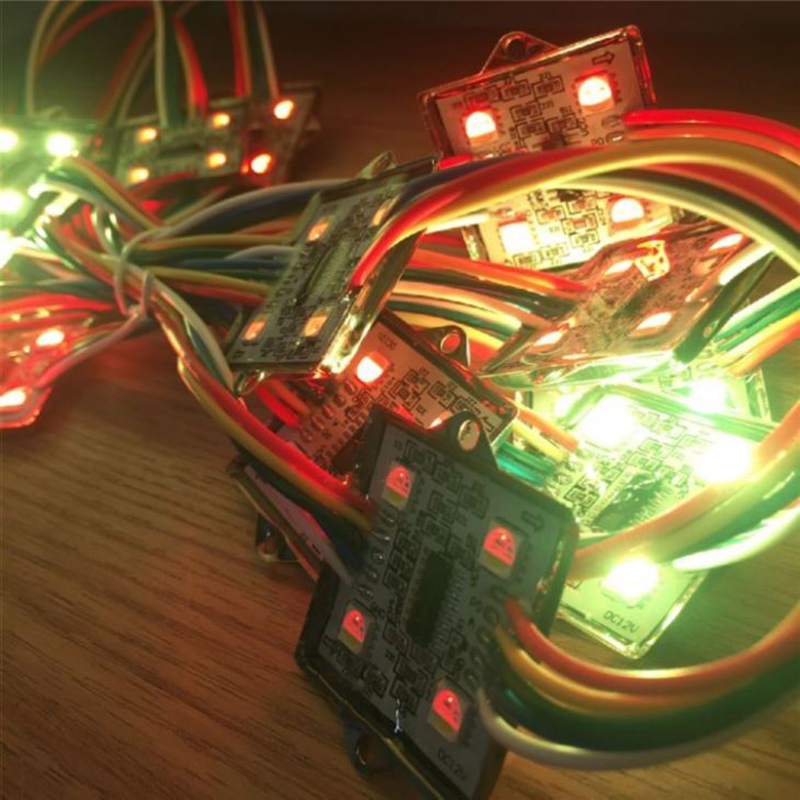

DC12V DMX512 RGBW 4 lights 5050 module, 0.96W/piece, 20 per string

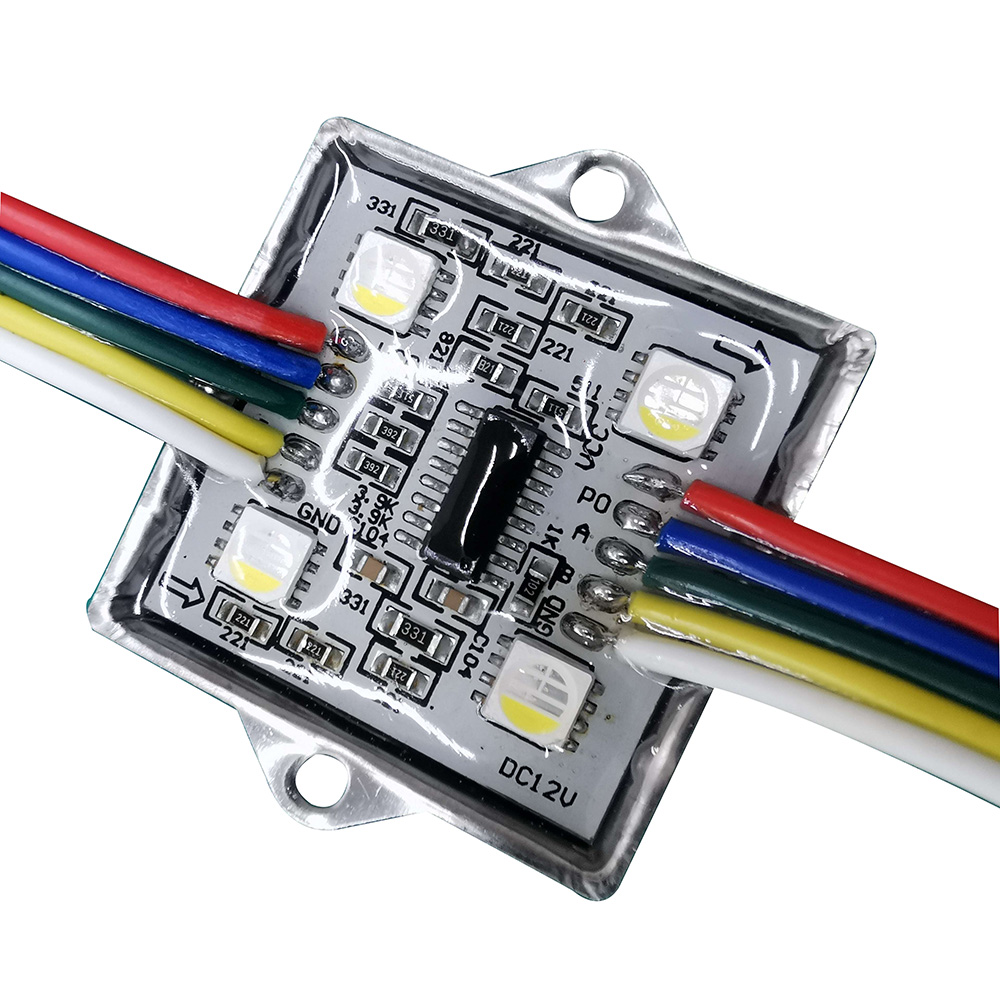

The HTD-354IC-RGBW-DMX module is mainly made of glass fiberboard, SMD5050 RGBW 4LEDs, and PCV injection molding, which has good waterproof and cooling effects, no halo, low attenuation, uniform, and high light.
RGBW module has low power consumption, a high lumen value of 10-24lm/LED, and has the advantage of long maintenance-free.
The protection level is IP66/waterproof.
DC12V low voltage input, safe and reliable.
RGBW module is a constant voltage circuit, and the standard is 20 pieces in a series. If 40 pieces are used in a series, it must be connected to the DC12V power supply separately. Each module can be cut and used separately.
Wire length between module:80-90mm
Light source life:≥50000Hrs
When we computing power should retain 20% of the allowance.
Prohibited surpass 20pcs pcer string to use in one parallel.
If 40pcs per string to connect kindly ensure that both ends connect DC12V power,achieve the best use effect.
Usually no more than 6 meters about the wiring length for Main line or each string of pixel light.
Standards and Certifications
three-dimensional light-emitting word
Channel letters lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
