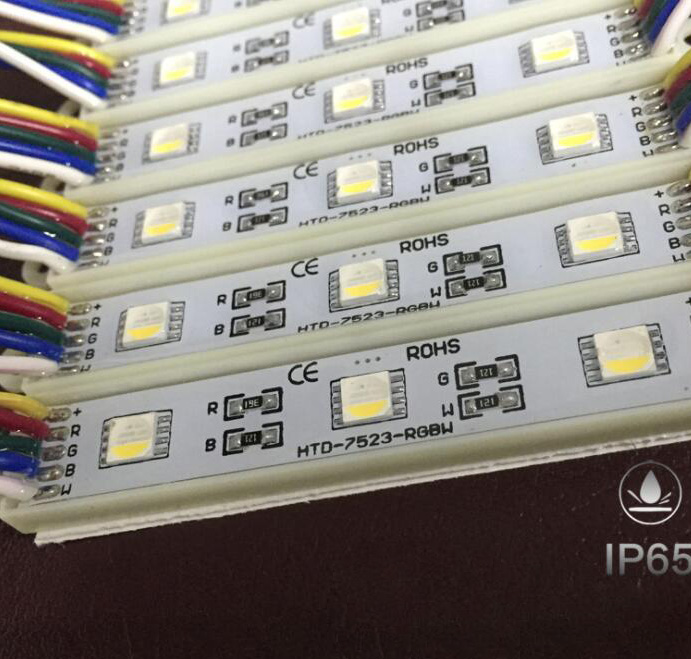

DC12V 5050SMD IP66 RGBW Module
This is Full-color 12V Super Bright High-Efficiency SMD5050 RGBW IC LED Pixel Modules. 3LEDs per piece, 0.96W per piece, 20pcs per string.
Our LED modules adopt TOP SMD5050 LED light source, these pixels use an RGBW chip for full 24-bit color, constant-current driven light spot, low light decrease, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape. Narrow injection molded PVC design has two 4mm/0.15" mounting holes and with double-sided adhesive foam tape for quick installation. 20pcs per string, a single module can be cut, so you could cut a different length for your project and request. 20AWG 3pin cable, Red cable to connect 12v Positive / +, Green cable to connect Data Signal, Yellow cable to connect Clk Signal, Blue cable to connect 12v Negative /-, over-current capability, lower attenuation. The shell is made of the injection molding process, aesthetic appearance, unique and excellent, aluminum PCB, good heat dissipation, heat dissipation. The LED strips Suitable for the commercial lighting as well as lighting professionals, Waterproof IP66, Suitable for both indoor & outdoor decorative application. 12VDC low voltage input operation, Low power consumption, high brightness, long lifespan, maintenance-free, safe and reliable. Quantity ordered will be wired together on a string with 20 modules maximum per strand.
Working with RGBW full controller can download the programs in SD card, control Max 2048 Pixel, It has the single color running scene. 12VDC power supply Link.
1. Made of SMD5050 RGBW LED, no halo, low attenuation, high light uniformity.
2. RGBW module has low power consumption, high lumen value of 10-24lm/LED, long service life and maintenance-free.
3. This product is mainly made of fiberglass board, SMD5050 RGBW 3LEDs and PCV glue, which has good waterproof and cooling effect.
4. The degree of protection is IP66 / waterproof.
5. DC12V low voltage input, safe and reliable.
6. This module is a constant voltage circuit. The standard is 20 strings. If 40 strings are used, DC12V power supply must be connected at both ends. Each module can be cut and used separately.
7. Luminous angle: 120°
LED Module: 75123-RGBW
LED Type: 5050SMD RGB LED
LED Chip Brand: Chip From San An
Viewing Angle: 120-140
Luminous Flux: >18-60lm
LED Qty: 3pcs
Life Span: 50,000H
Working Voltage: DC12V
Driving Method: CV
Standard Serial Connection: 20pcs
Maximum Serial Connection: <40pcs
Available light Color: RGB+W/RGB+WW/RGB+CW/RGB+NW
IP Degree: IP66
Standards and Certifications
three-dimensional light-emitting word
Channel letters lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
