DC24V 8 lights Constant Voltage SMD5050 Glass Fiber Board RGBW LED lens modules,20/40pcs
1. Made of SMD5050 RGBW LED, no halo, low attenuation, uniform, and high light.
2. RGBW module has the advantages of low power consumption, high lumen value of 10-24lm/LED, long replacement, and maintenance-free.
3. This product is mainly made of glass fiberboard, SMD5050 RGBW 8LEDs, and ABS injection molding, with a good waterproof and cooling effect.
4. The protection level is IP67/waterproof.
5. DC24V low voltage input, safe and reliable.

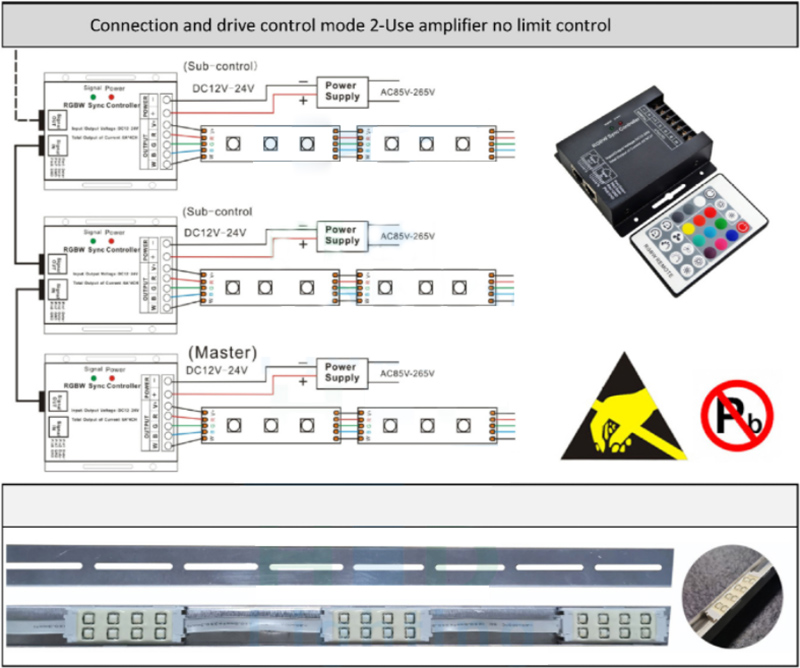

6. This module is a constant voltage circuit, and the standard is 20 pieces in a series. If 40 pieces are used in a series, it must be connected to the DC24V power supply separately. Each module can be cut and used separately.

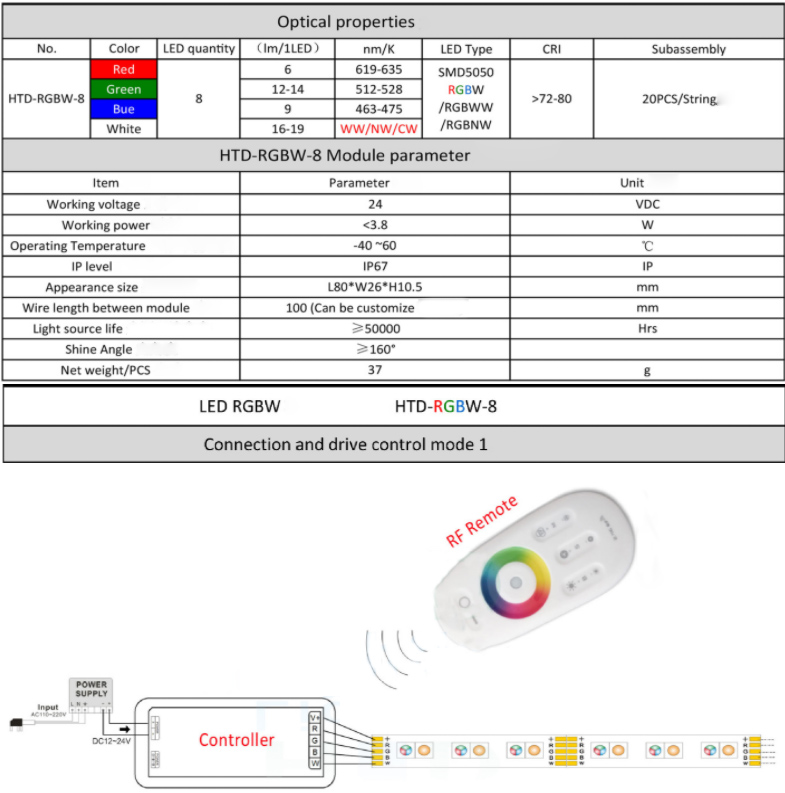

Standards and Certifications
Type:LED advertising light
Light source type:LED5050RGBW
Light source power:3.8 (W)
Dimensions:80 * 26 * 10.5 (mm)
1 Electronic signs
2 Outdoor decoration
3 Outdoor channel letter
4 Festival decoration
5 Advertising light-box
6 Advertising sign back lighting
7 Commercial LED lighting project
8 Landscape and stage decoration
Construction, bridge, flyover outline, square, street, station dock, courtyard, KTV, bar etc.
