Offline 8 Ports K-8000C Programmable RGB LED Controller SD Card LED Pixel Controller for SPI/DMX
It supports all the smart IC on the market. Including WS2812B,WS2811,WS2813,SK9822,SK6812RGBW,APA102C,WS2801,etc . All the dual data LED chip, data and clock led chip, single data LED chip. It is suitable for engineering projects or customers’ DIY projects. Support SD card 128MB-32GB. Install LEDEDIT software on the window computer.
【Great for DIY Project】It supports LED strip/ LED matrix panel/Special-shaped/different data directions project. Various special lighting effects. like effects-firework ,chasing,rainbow,scrolling text,single color,full color,running etc . There is a lighting effect library in the LEDEdit software. You also can use some videos/pictures as your own lighting effect library.
【Cascade Synchronization】There is one port on it, it can support 2048 pixels(DMX LED 512 pixels). Cascade Synchronization is for large pixels projects. We can cascade many controllers. There are K4000C controller max control 4000 pixels, K8000C controller max control 8000 pixels if you need please contact us.
【Refresh Rate】 512 pixels 30 frames/second, 1024 point pixels 25 frames/second and 2048 pixels 15 frames/second. Max control WS2812B 2048 pixels. Usually, we recommend 600 pixels. More pixels will decrease the speed of data transmission.
【Providing technical assistance.】 One year warranty. We can help you to program a test file if you don’t know how to use it. NOTE: If you don’t know how to use, please please please contact us.
Standards and Certifications

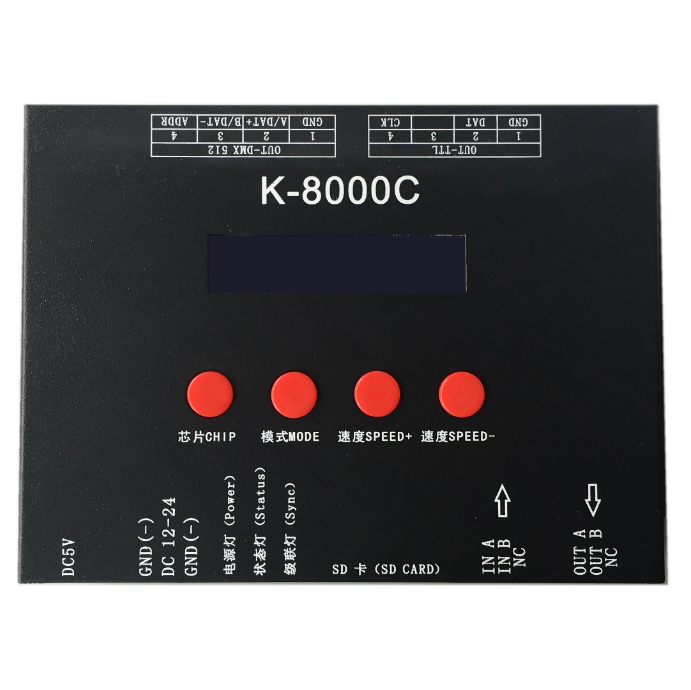

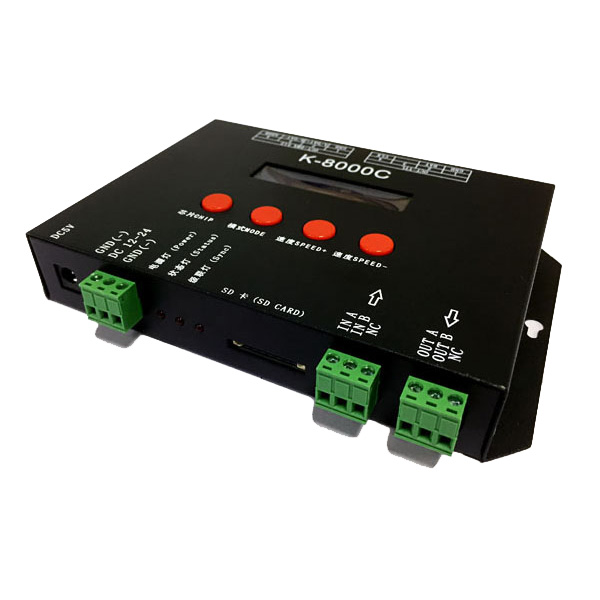

Product: Offline 8 Ports K-8000C LED Controller
Model No.: K-8000C
Controllable: Can drive 8192 Pixels with 8 ports (1024Pixels/port)
Input Volage: DC 5-24V
Dimension: 180 x 120 x 30(mm)
Supported driver chips: Almost all of the digial led chips, including single SPI, Double SPI, DMX512, and more
Single SPI: WS2811, WS2812, WS2813, WS2815, WS2818, SK6812, SM16703, TM1814, UCS1903, UCS2903, GS8205, SM16704, （Support up to 1024*8=8192 pixels）
Double Data: TM1914, TM1934, GS8206, （Support up to 1024*8=8192 pixels）
CLK & Data: WS2801, APA102, SK9822, APA107, SM16726, （Support up to 1024*8=8192 pixels）
DMX512: UCS512B3, UCS512C3, UCS512C4, SM16512, TM512AC, （Support up to 320*8=2560 pixels）
1) The controller load lamps 512 points pixel, speed can reach up to 30 frames / sec,
2) The controller load lamps 768 point pixel speed can reach up to 25 frames / sec,
3) The controller load lamps 1024 point pixel speed is about 22 frames / sec
– The above parameter is an example of 1903 agreement IC, different IC have difference.

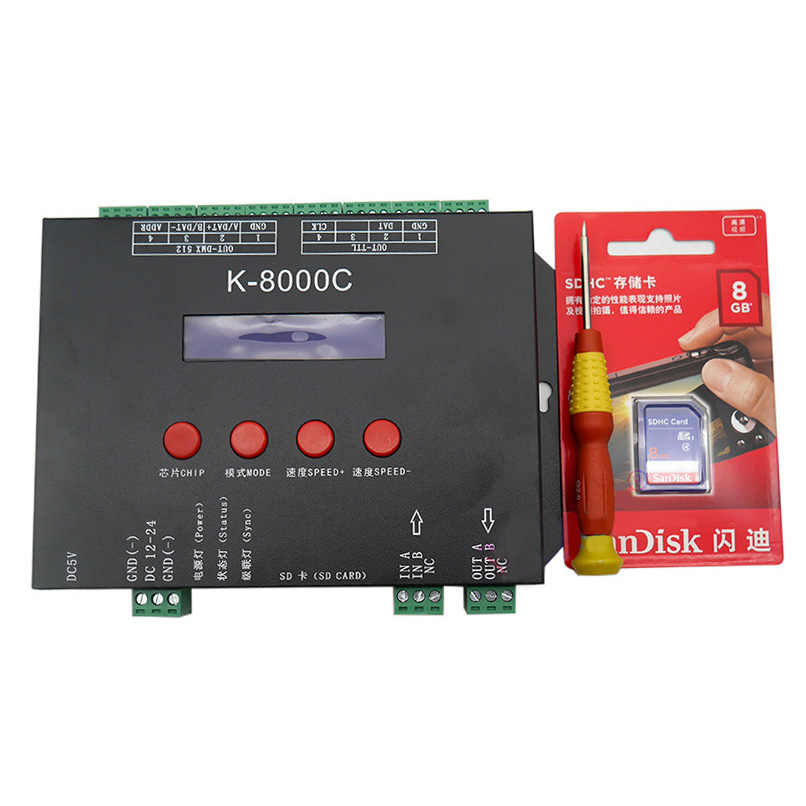

1x K-8000C controller
1x SD Card
