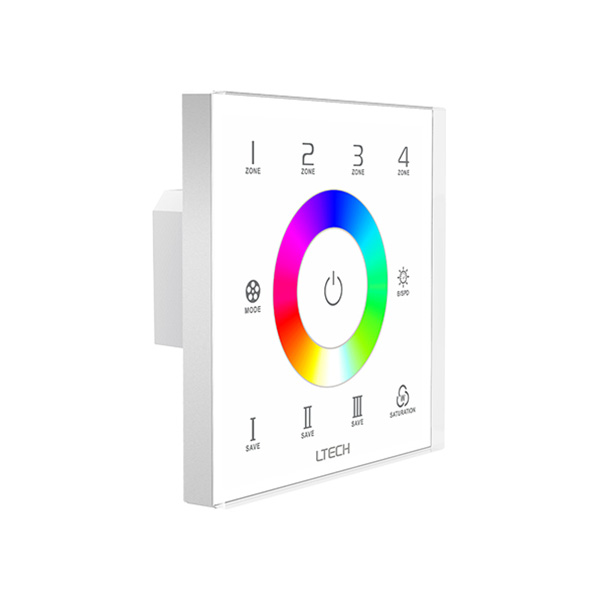

100-240Vac wireless RF and wired DMX512 4 zones RGB Touch Panel EX7S

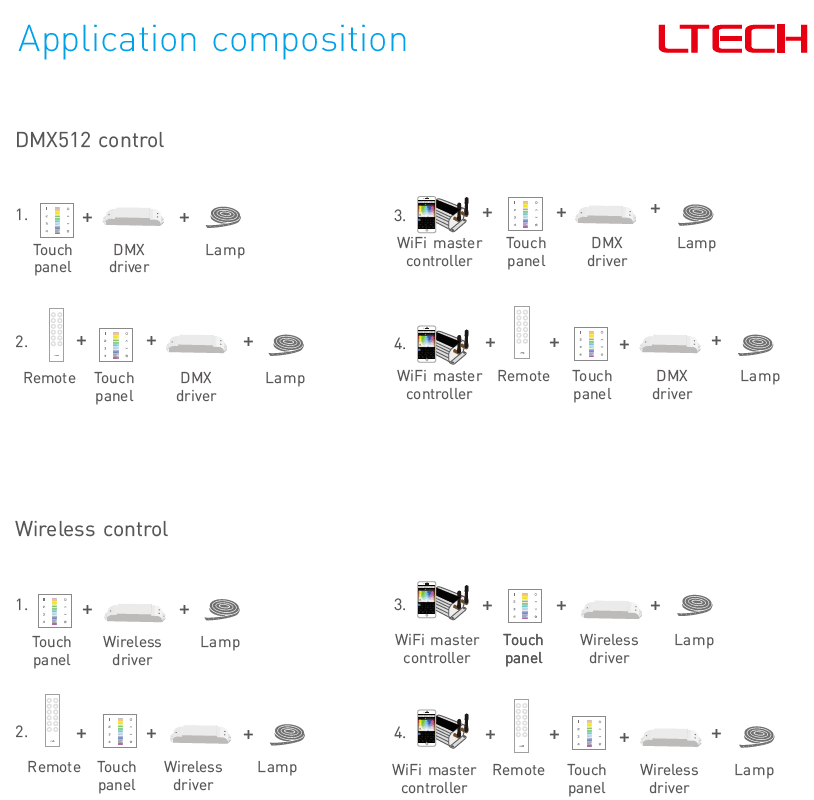

1.Adopt wireless RF and wired DMX512 protocol 2 in 1 control mode, more flexible and convenient for project installation
2. Advanced RF wireless sync/zone control technology, be able to realize dimming,
synchronous dynamic changing color effect between receivers.
3. Within the effective range, any quantity of receivers can be connected in the same zone, dynamic and static effects keep synchronization between different groups.
4. Four zones can be combined arbitrarily, for example, zone 1 and zone 2 as a group, or zone 1, zone 3, zone 4 as a group, or all the 4 zones as a group.

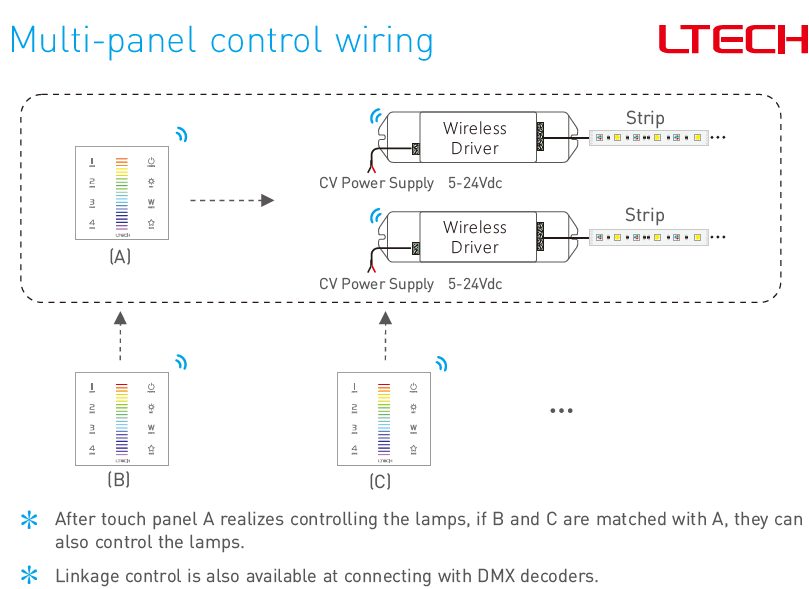

5. Install touch panel at different areas, can control the same LED light, achieve multi-panel control, no quantity limited.
6. Touch keys with chord and LED indicator.
7. Save any scene you like, touch 1 key to recall the scene, easy and convenient
8. Adopts capacitive touch control technology on the full-color wheel, make LED color selection more user-friendly.
