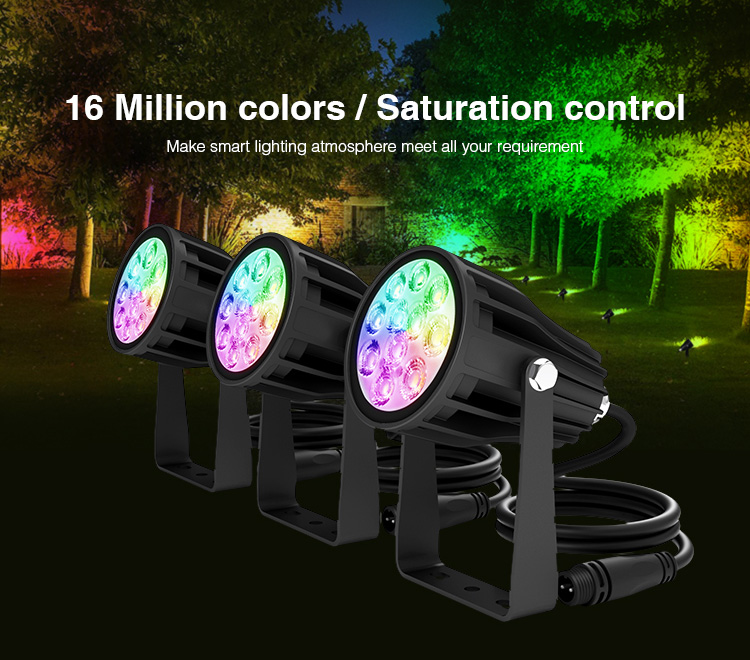

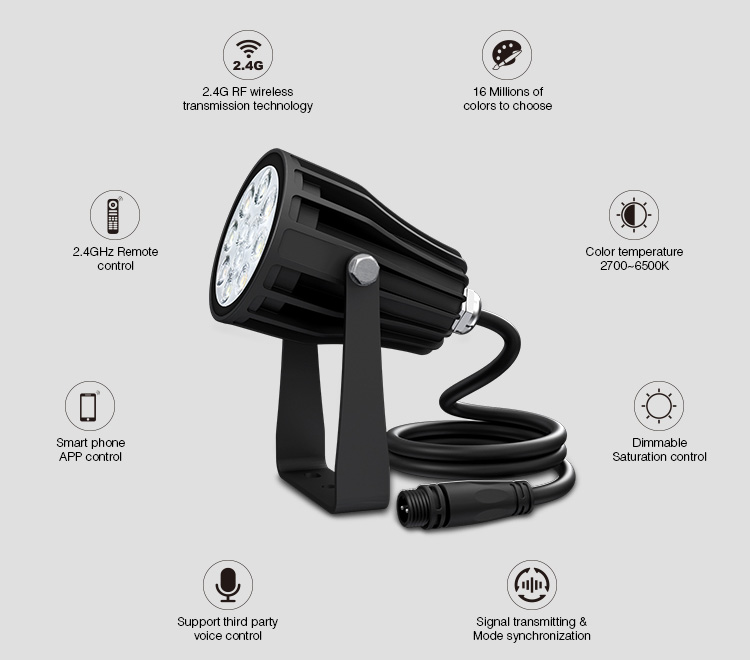

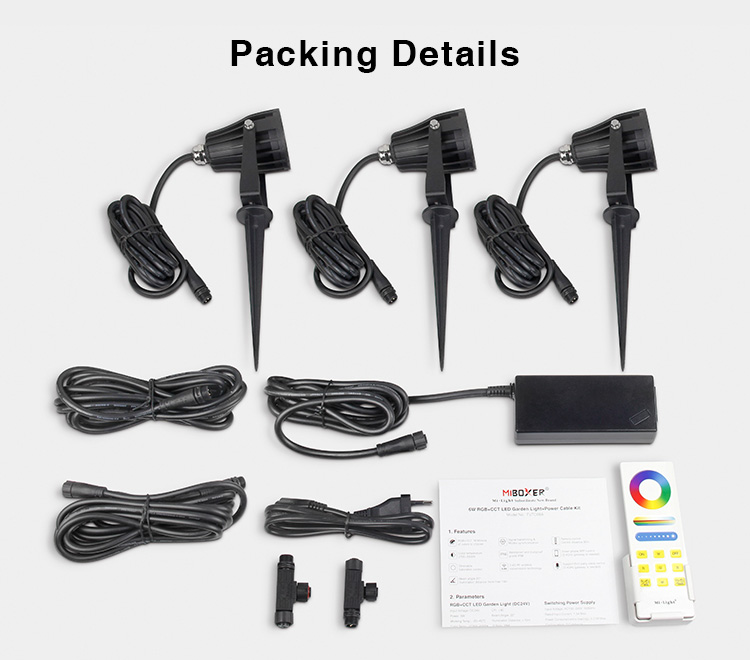

FUTC08A 6W RGB+CCT LED Garden Light+Power Cable Kit

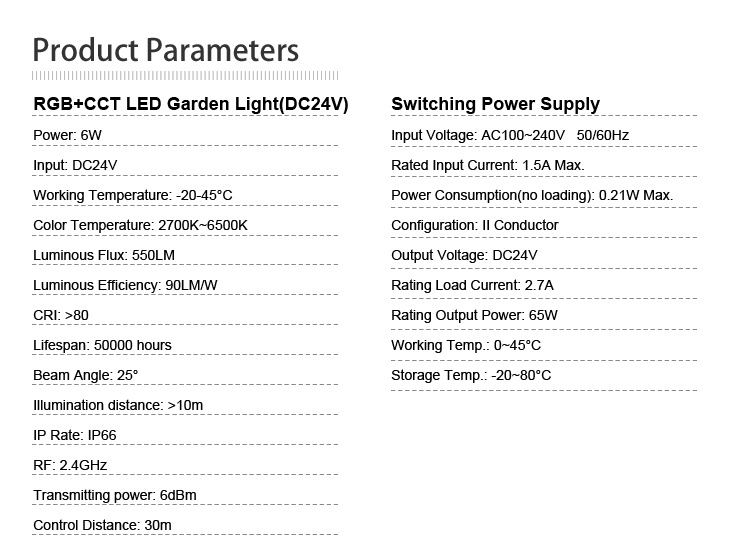

Product Name: 6W RGB+CCT LED Garden Light+Power Cable Kit
Model No.: FUTC08A
Input Voltage: DC 24V

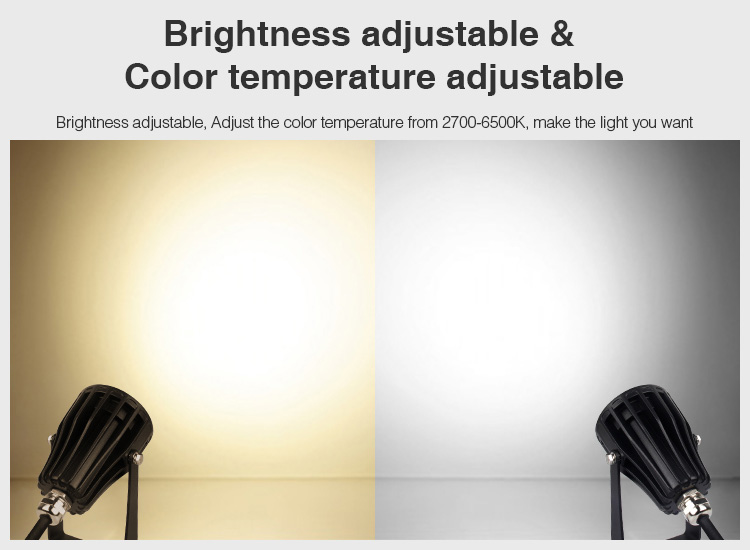

Color Temperature: 2700K~6500K
Luminous Flux: 550LM
Light Efficiency: 90LM/W
Lifespan: 50000 hours
Beam Angle: 25°
Illumination distance: >10m
Transmitting power: 6dBm

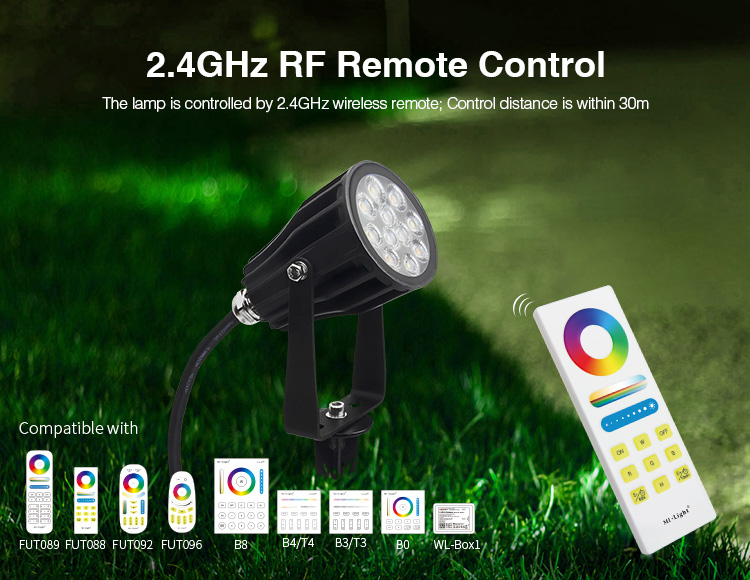

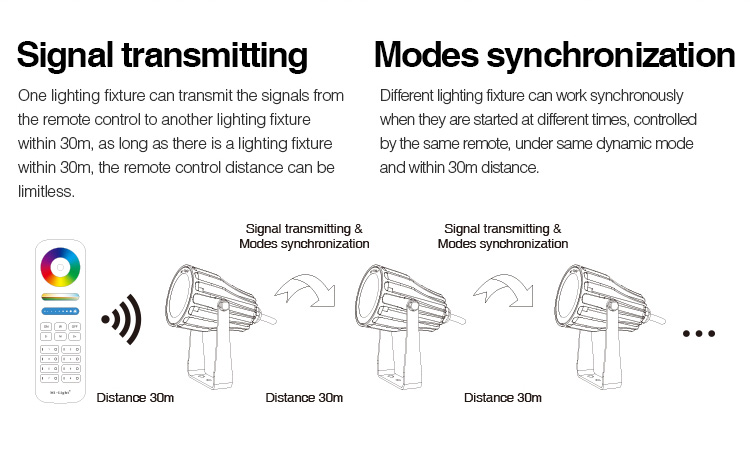

Control Distance: 30m
Switching Power Supply
Input Voltage: AC 100-240V 50/60Hz
Rated Input current: 1.5A Max.
Power Consumption( no loading): 0.21W Max.
Configuration: II Conductor
Output voltage: DC24V
Rating load current: 2.7A
Rating output power: 65W
Working temp.: 0-45° C
Storage temp.: -20-80° C
