FUT039M Upgraded 2.4GHz RGB+CCT LED Strip Controller
Product Name: 2.4GHz RGB+CCT LED Strip Controller
Model No.: FUT039M (Upgraded)

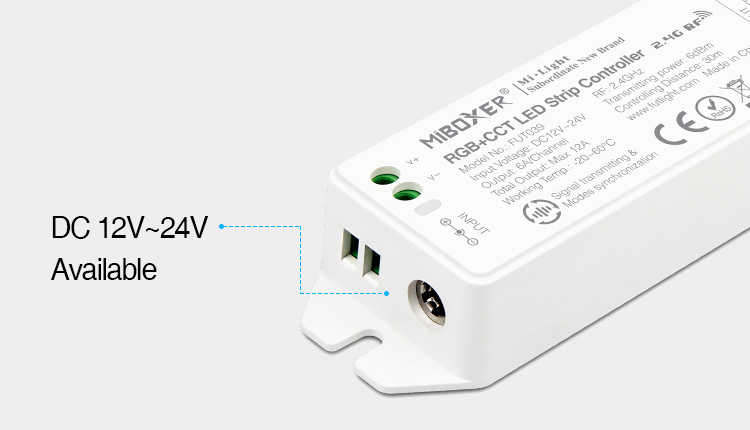

Working Voltage: DC12V~24V
Working Temperature: -20~60°C
Output Max: 6A/Channel
Total Output Max:12A
Transmitting power: 6dBm
Control Distance: 30m

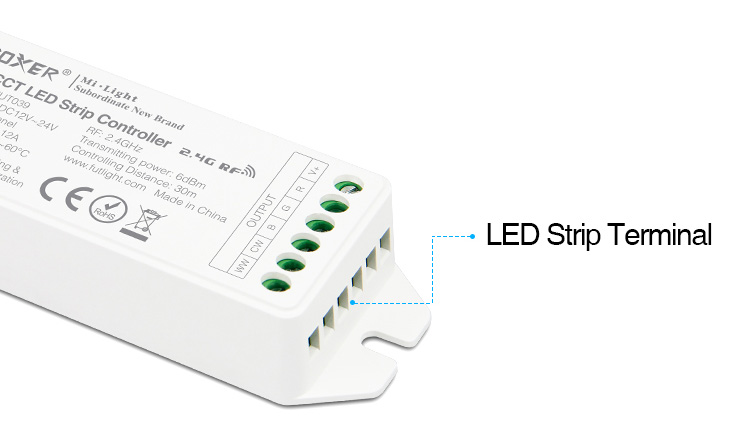

Output connection: Common anode
|By : Jonathan Moshe Moshe Date Added: 11/25/2021|

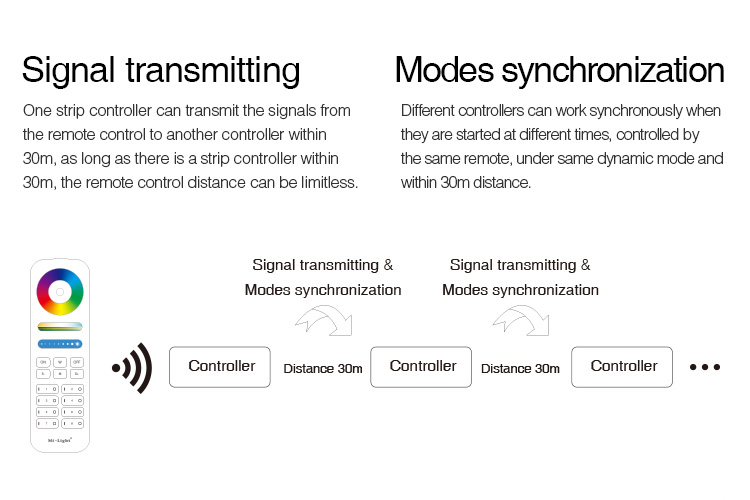

|Works really great. I'm using the 2.4G Rainbow Remote with it. I was a bit confused about its operation since the manual was missing some information, but here you go: 1. Attach the lights and power supply, then turn it on. The lights will come on. 2. In the first few seconds after powering up, it will automatically start looking for a remote to bind to. You must follow your remote's instructions to enter bind mode. When bind is successful, lights will flash a few times to let you know all is good. 3. After this controller is bound to a remote, it cannot bind to another remote unless you unbind it first... again see your remote's instructions on how to unbind. 4. I was a bit confused about how to synchronize multiple controllers. I looked everywhere for a master or slave selector switch but none was found. It turned out this was easier than I had expected. Just bind the 2nd controller to the same remote and you are done. All the components that are bound together will talk back an|
