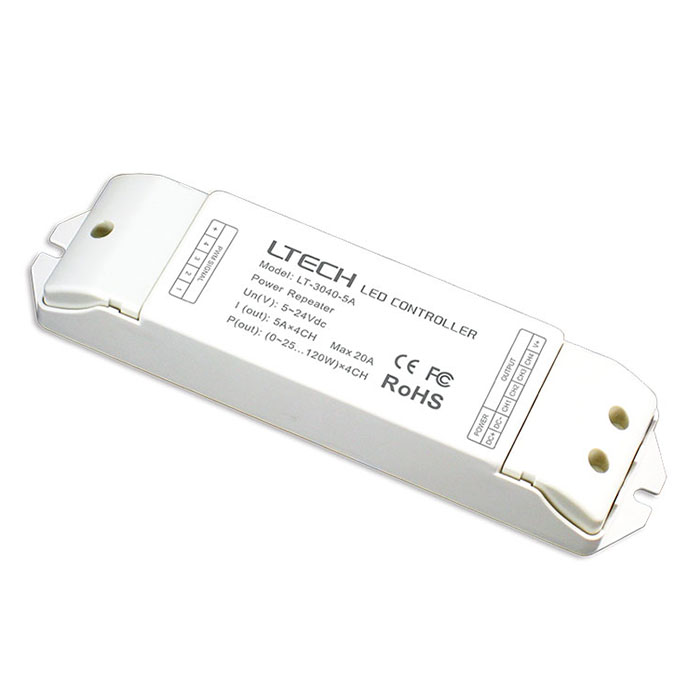

CV Power Repeater LT-3040-5A

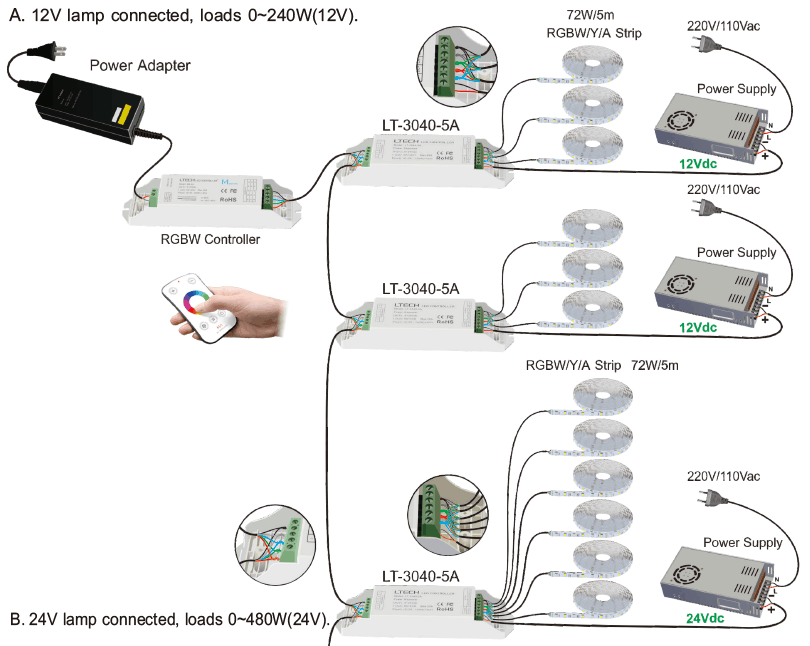

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.
LT-3040-5A CV Power Repeater
Input signal: PWM
Input voltage :DC5V~DC24V
Max load current :5A ×4CH Max 20A
Max output power: 100W/240W/480W(5V/12V/24V)
working temperature :-30℃~55℃
Package Size: L178×W48×H33(mm)
Weight (G.W) :110g
