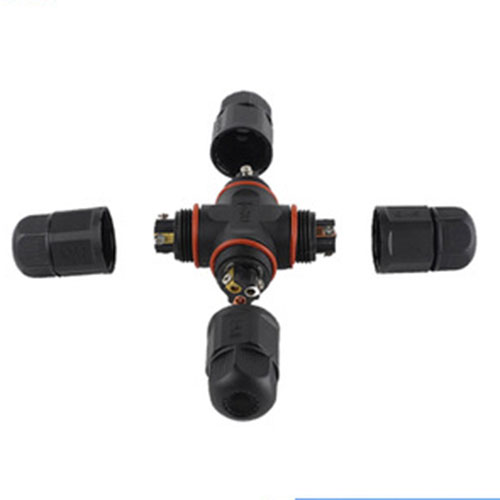

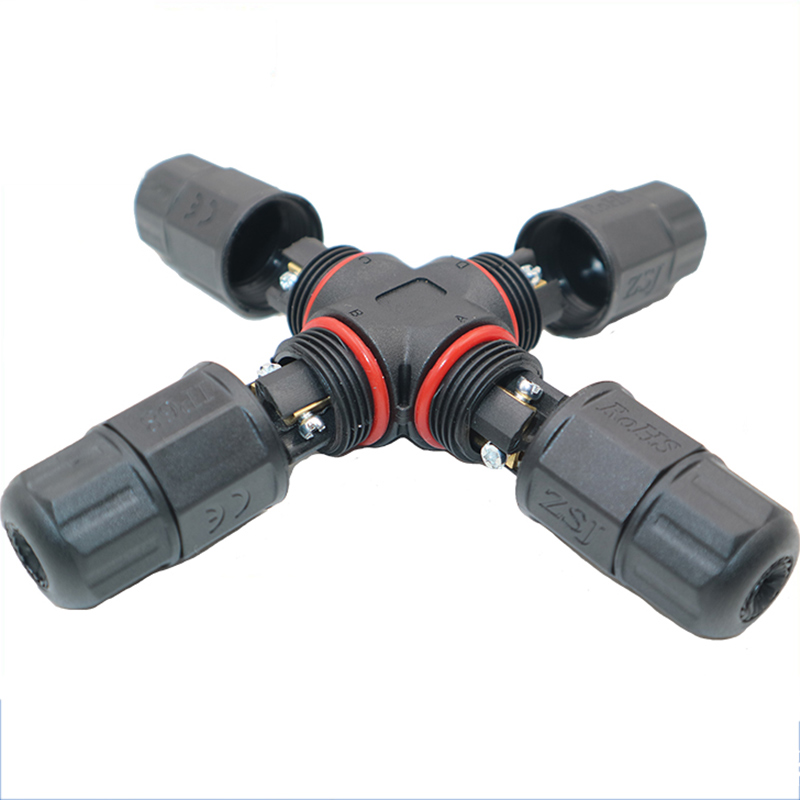

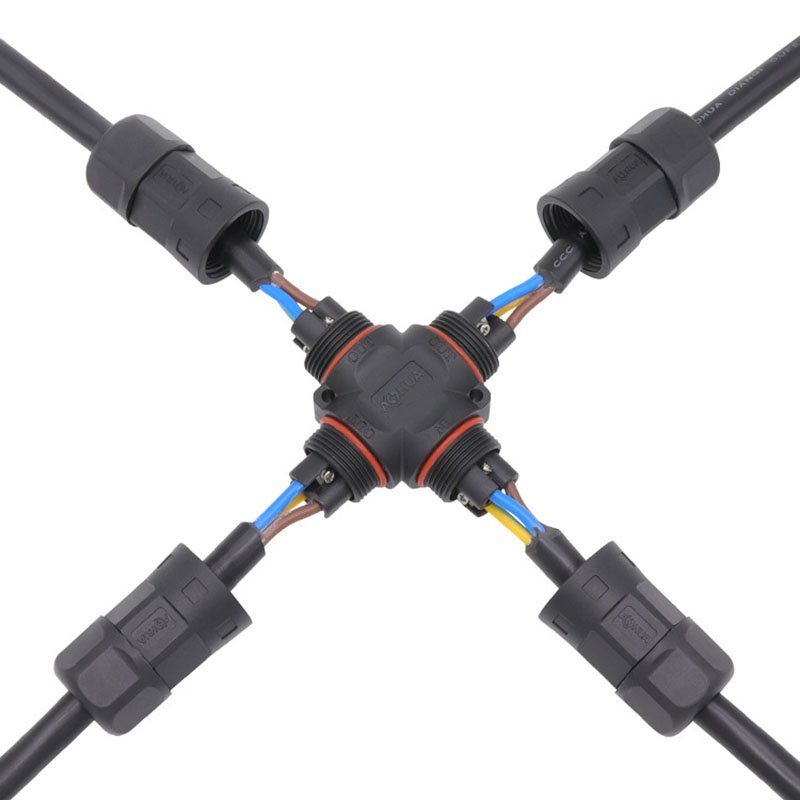

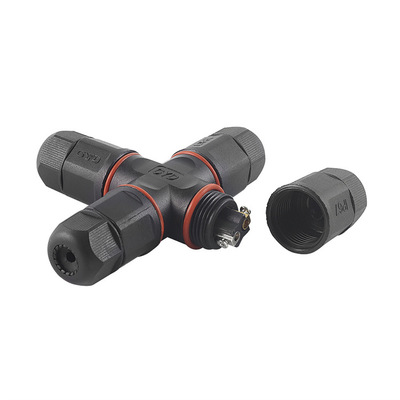

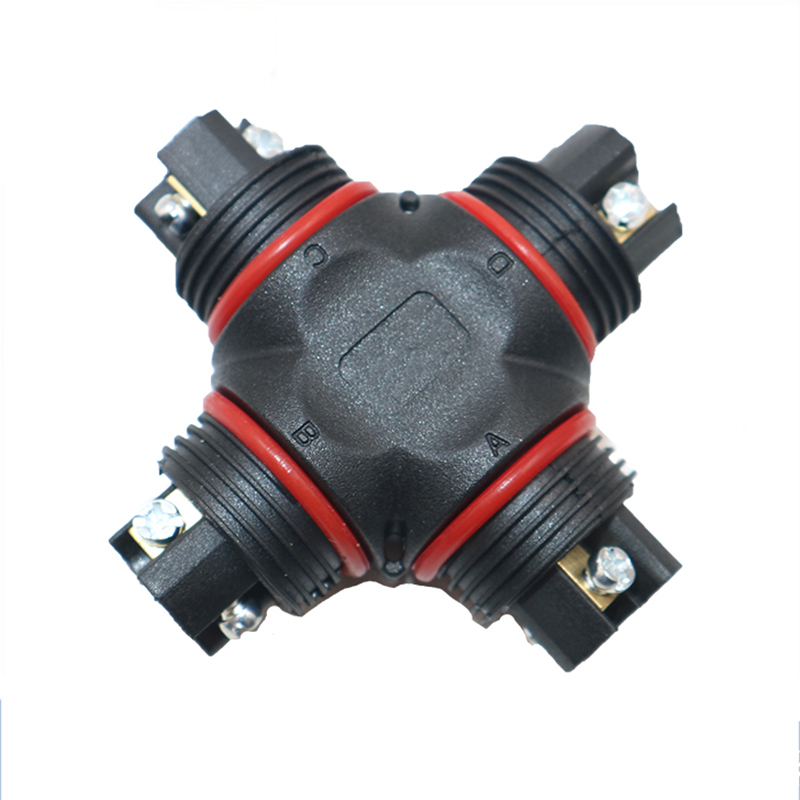

M20 Cross Waterproof IP68 Connector 4 Channels 2/3/4 Core Self-locking and Screwing Outdoor Waterproof Connector Apply For LED Strip Lights

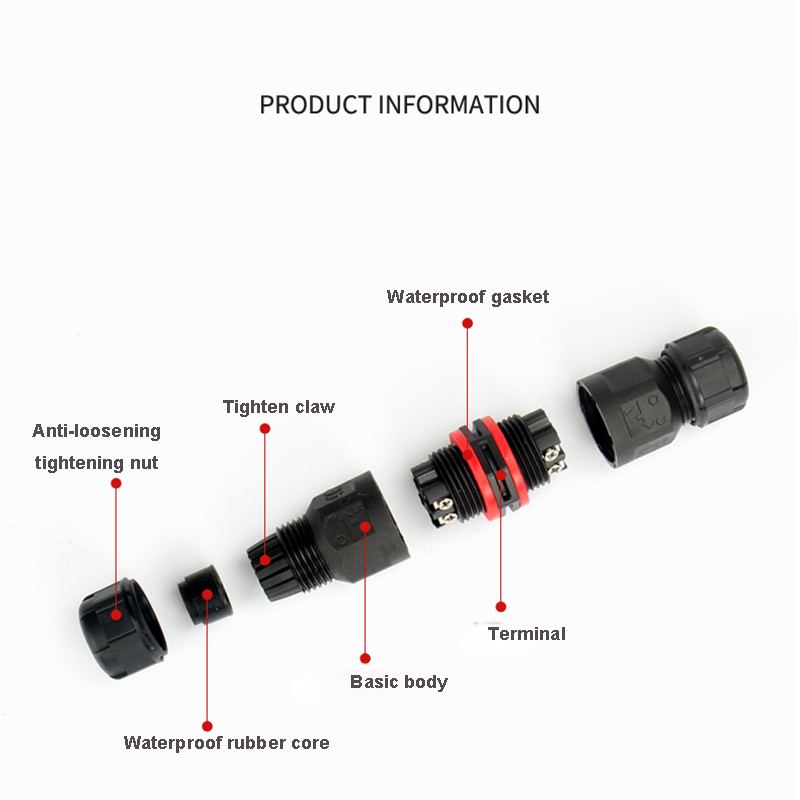

The LED connection part of the connector is made of copper plating, and the screw adopts a standard cross groove, the surface is smooth and burr-free, and the force is even during installation, so there is no need to worry about slippage and tooth loss. The nylon PA66 material is waterproof, moisture-proof and rain-proof, with strong toughness, impact resistance, high temperature resistance and corrosion resistance. It adopts a screw-type shape with a claw clamp. The diameter will gradually shrink as the tail cap is tightened until it fits the wire.Apply for LED strip light.
Wsaterproof Rating: IP68
Shell Material: PA66 nylon

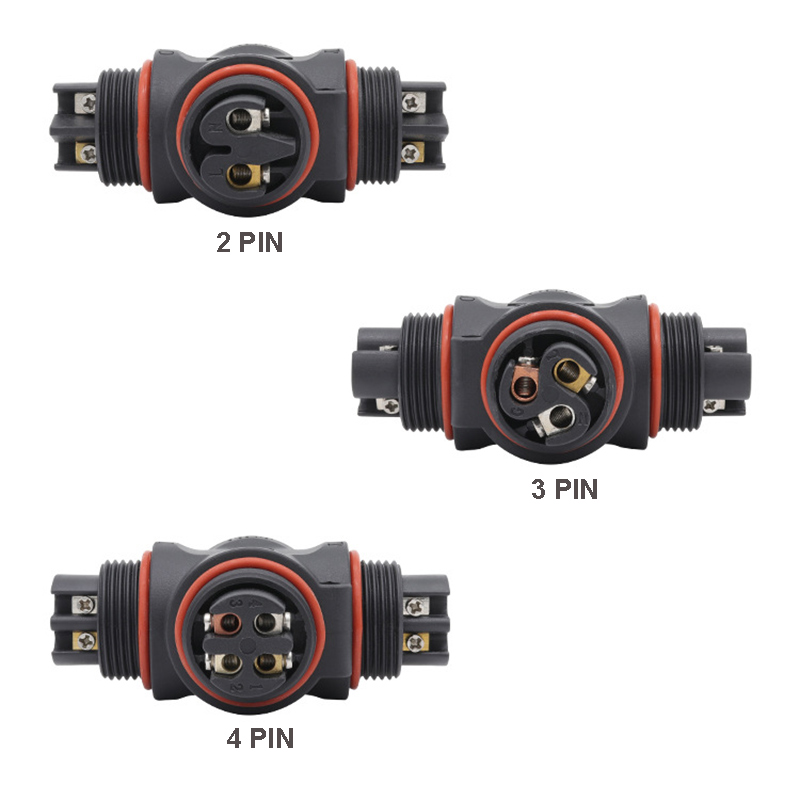

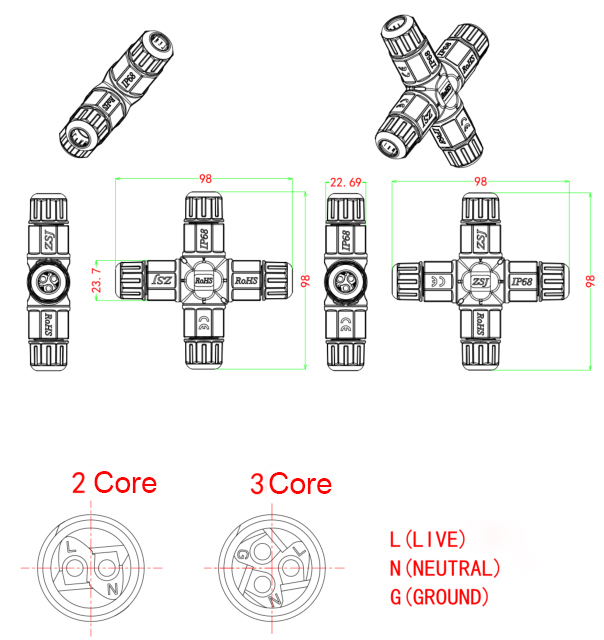

Number of cores: 2 Pin/3 Pin/4 Pin
Crimping Range: ＜1.5mm2
Wiring Method: screw tight
Working Temperature: -40℃-105℃
Rated Power: 20A
Rated Voltage: 500V and below
