Plaster In Aluminum Profiles For 7mm Slim LED Strips
- $30.00 $17.9840% off
- $30.00 $24.9817% off
- $39.98 $19.9850% off
- $49.98 $23.9852% off

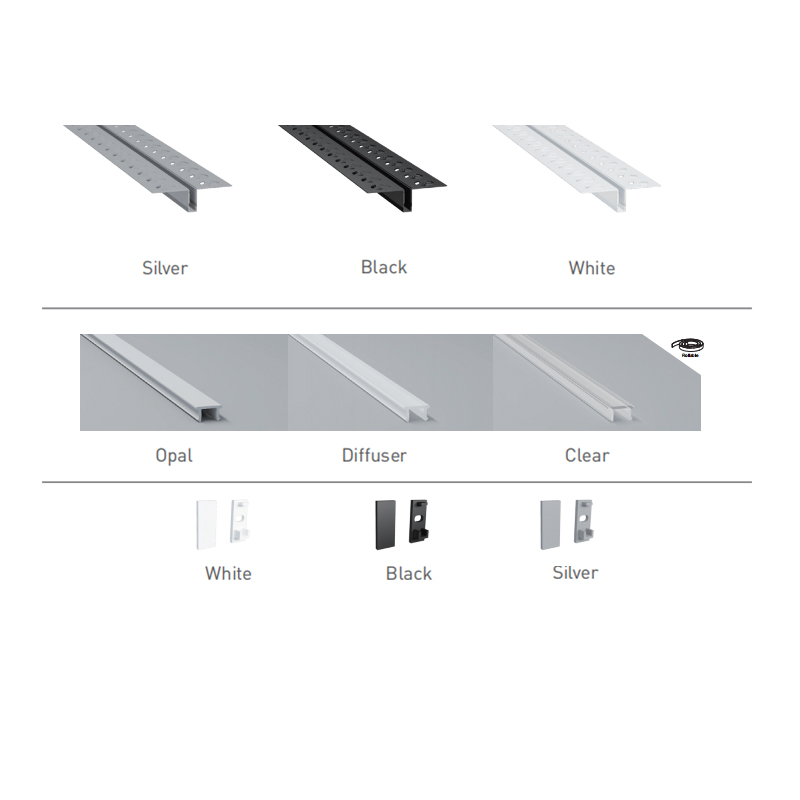

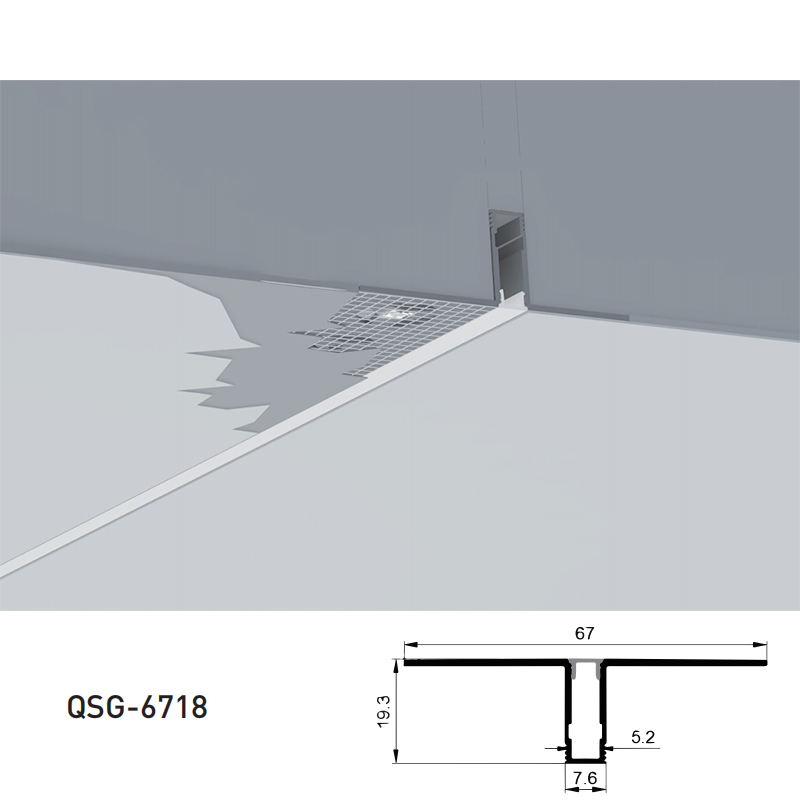

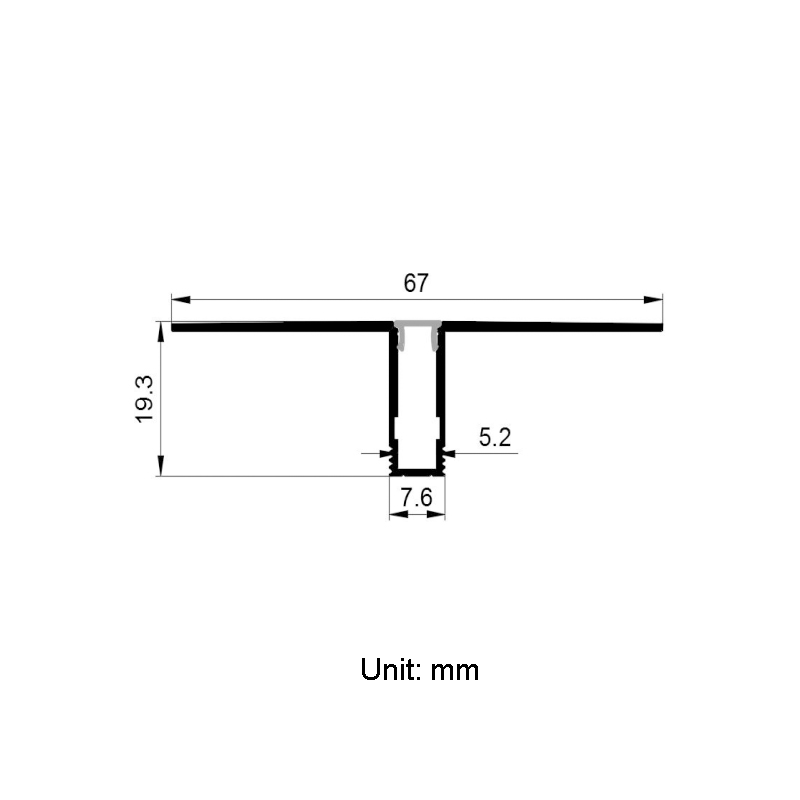

With 7.6mm/0.3in inner width, this recessed aluminum led profile can be recessed in walls without protruding surface, suitable for ultra narrow led strip lights. Made of 6063-T5 high-quality aluminum alloy, this drywall led channel provides additional heatsinking and mechanical protection for the led strip. 3 kinds of PC led light diffuser covers make the led lighting more uniform and soft, the difference between the clear diffuser, semi-clear difuser, and opal matte diffuser is the transmittance. We also provide silver, white, and black aluminum channels to meet your decoration style. Comes with end caps, the aluminum led diffuser channel is perfect for your residential and commercial linear lighting LED projects.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PC opal microprism diffuser /PC clear microprism diffuser / PC se-mi clear diffuser|
|Accessory||End cap without hole, end cap with wire hole|
|Apply to||5mm narrow led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
